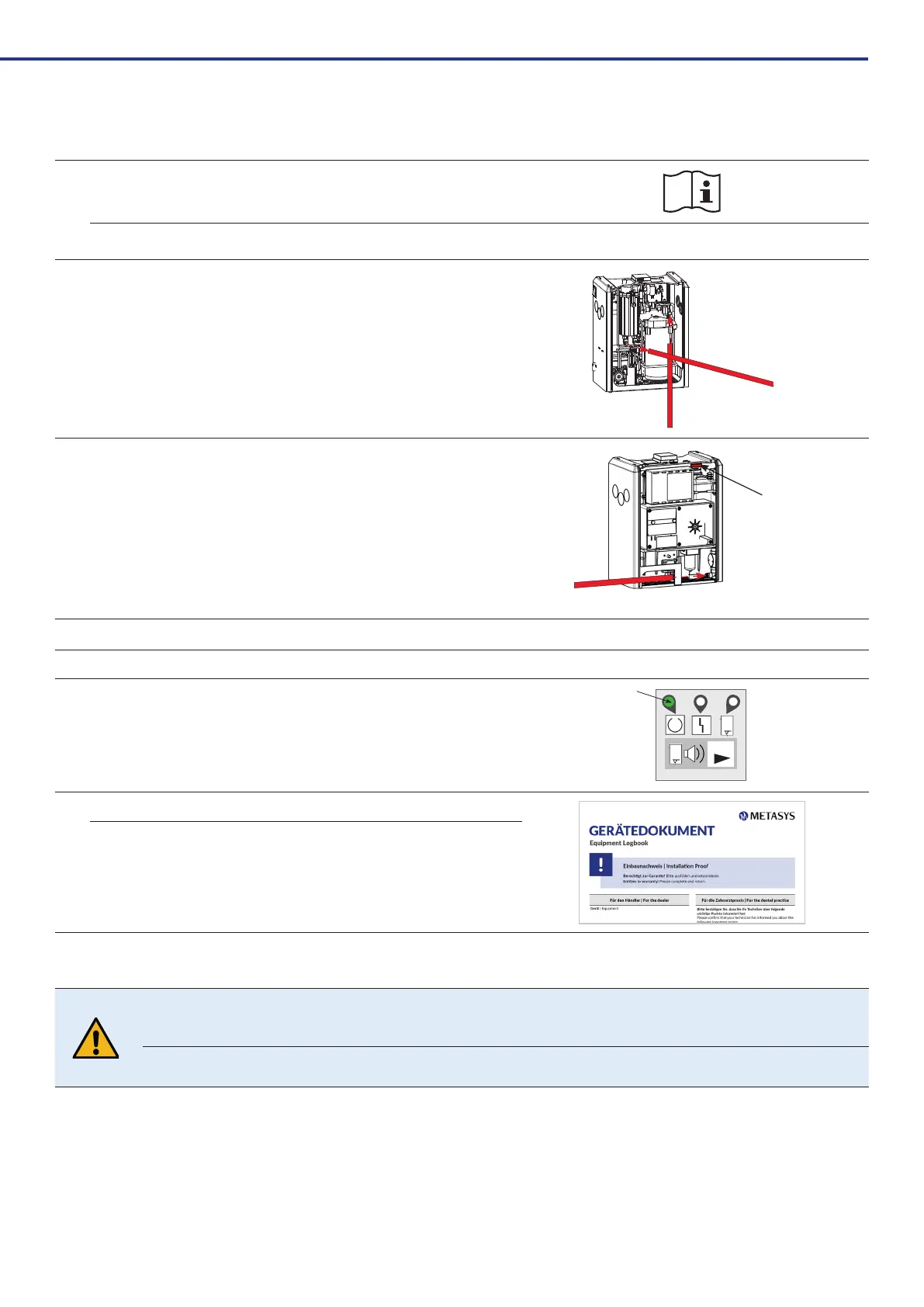

5.3. Installation, assembly and commissioning
1
Read the instructions carefully before installation and commissioning!
Meet spatial requirements see 5.2. Installation requirements
2 Connecting the compressed air and the consumer
Consumer
Compressed air connection Ø 4 mm
3
Freshwaterconnection(waterconnection)
(PE/PAhosewithKTWapproval;permissibleinletpressure:1-6bar)
ConnectionoftheGREEN&CLEANWKbottle(750ml)
Water connection
Connection of the
GREEN&CLEAN WK
bottle(750ml)
4 Connect the electrical connections according to the instructions see 5.4 Electronics
5 OnlyforWEKwithcover:Firstopentheballvalve,thenswitchonthedevice
6 When LED 1 lights up green, the device is ready for operation
RESET
RESET
RESET
LEUCHTEN
BLINKEN
1
RESET
2
RESET
3
RESET
1
2 3
4
7
Informthedentistaboutproductfunction,operation,careandwarrantyconditions.
Fill in the installation proof and device logbook and return them to METASYS
(installation@metasys.com)
5.3.1. Installation and assembly of optional accessories, retrot parts and spare parts
Assembly,modicationsandrepairsmayonlybecarriedoutexclusivelybyauthorisedspecialistpersonnel(see3.2.Safetyinstructions)!The
METASYStechnicalcustomerserviceisalsoavailableforfurtherinformationandassistanceincarryingoutrepairs,retrotting,faultanalyses,
etc.
Pleasenotethatthetransformerisstilllivewhenthedeviceisswitchedoff(mainswitchWEKsettoOFF)!Beforecarryingoutanyinstallations
orrepairs,disconnectthedevicefromthemainsusingthedevice/practicemainswitch!
5.3.2. Connecting to other devices
When connecting the METASYS device to other devices or systems, hazards can arise. It must therefore be ensured that no hazards arise for the user or the
patientandthattheenvironmentisnotaffected.Thespecicationsofthemanufacturerofthedeviceorsystemtobeconnectedmustbeobserved.
