Page 24 Micro Rain Radar MRR-2 METEK
2012-02-29 Valid for MRR Service Version 6.0.0.3 / Firmware 6.00
This entry would try to build a connection to a computer with the name
\\hostname. The password is secret, the time-out-values are set for slow
WAN connections (/t). The parameter /t is optional, the computer name and
the password however must be given always. This is also valid for local logins
(the password will not be checked).
If the connection to the communication service could be built up, the entire
status of the MRR-2 is read out first. This can take some seconds, on RAS
connections even some minutes.
6.3.1 Main Menu

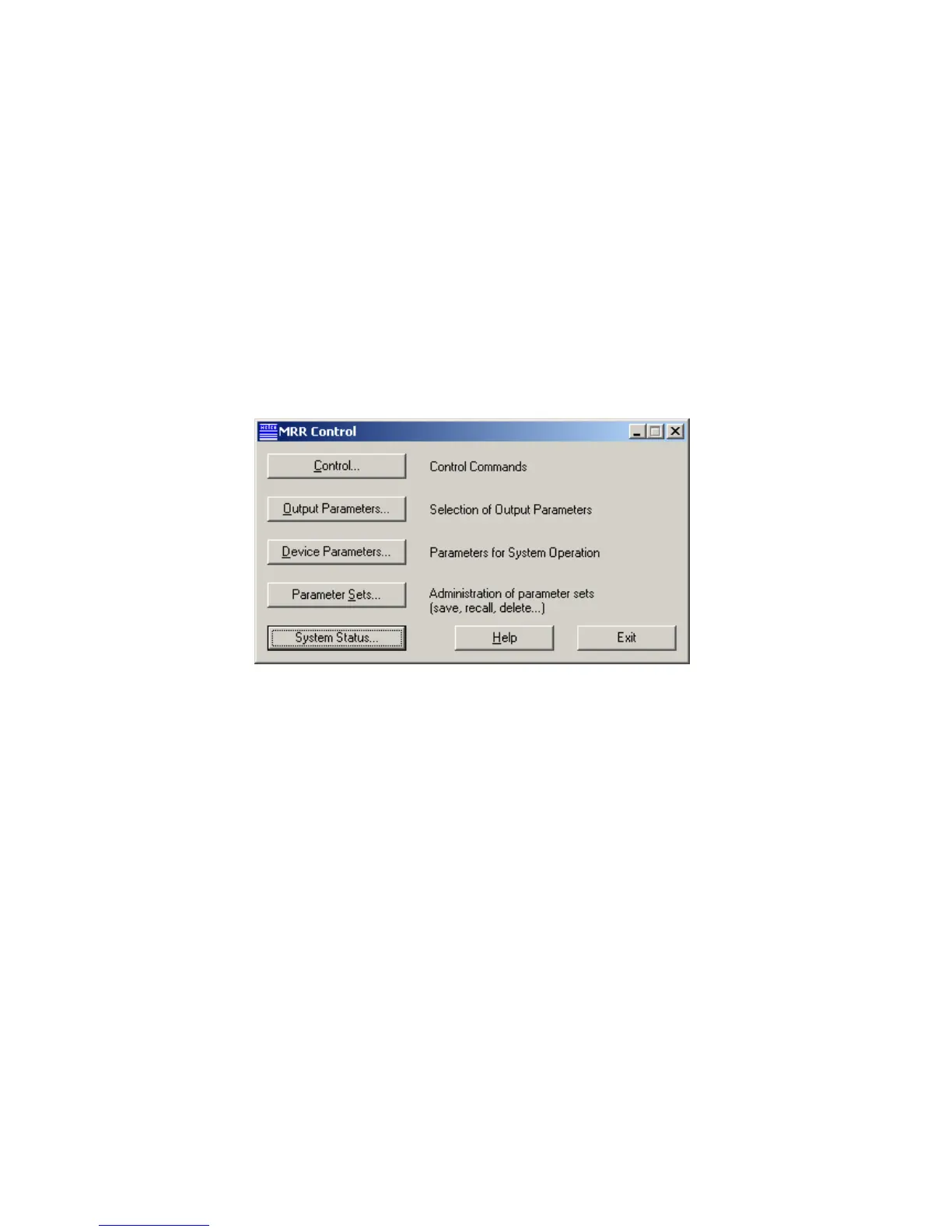

Figure 19: Main Menu
The main menu shows buttons for the menus
Control chapter 0 on page 25
Output Parameters chapter 6.3.3 on page 26
Device Parameters chapter 6.3.4 on page 28
Parameter Sets chapter 6.3.5 on page 30
System Status chapter 6.3.6 on page 32
You can leave the program with the Exit button.
The Help button provides a Windows conforming help text.
