Page 28 Micro Rain Radar MRR-2 METEK
2012-02-29 Valid for MRR Service Version 6.0.0.3 / Firmware 6.00
6.3.4 Device Parameters Menu

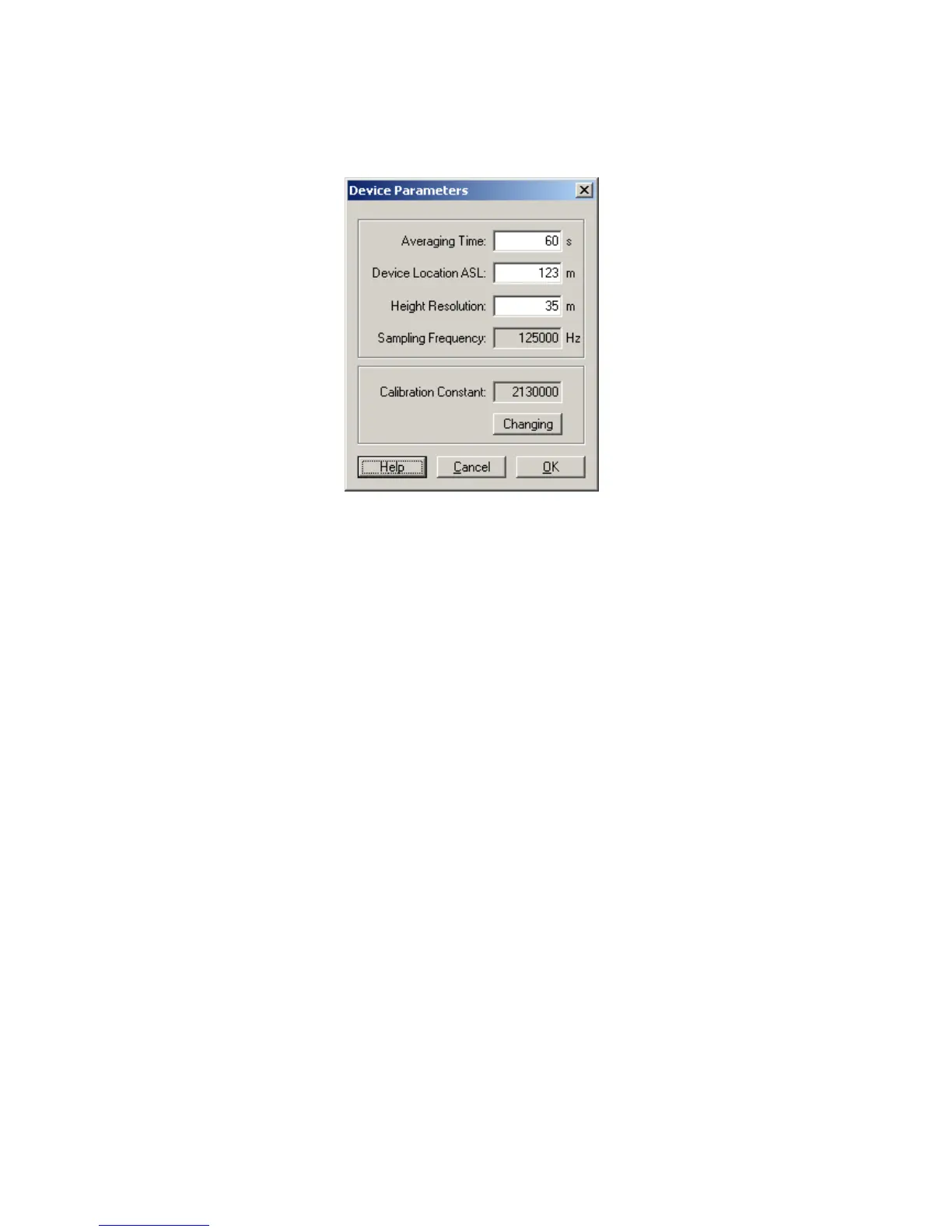

Figure 22: Operation Parameters
Averaging Time
Here you define the averaging time for the averaged data.
The adjustable range is 10 .. 3600 s.
After each averaging time, an averaged data set is generated and recorded
and a new averaging interval starts. Processed data are generated and
recorded independently in 10 s time intervals within each averaging interval.
Device Location ASL
Enter the height of the MRR-2 location above sea level. The adjustable range
is 0 ... 9999 m. This parameter is used for the density correction of the fall
speed versus drop size relation.
Height Resolution
Enter the desired distance between adjacent measuring heights (step width).
The adjustable range is 10 1000 m. Typical values are 30 100 m.
The measuring heights are integer multiples of the height resolution. The
maximum number of height steps is 31.
