METEK Micro Rain Radar MRR-2 Page 9
2012-02-29 Valid for MRR Service Version 6.0.0.3 / Firmware 6.00
4 System Description
4.1 Overview

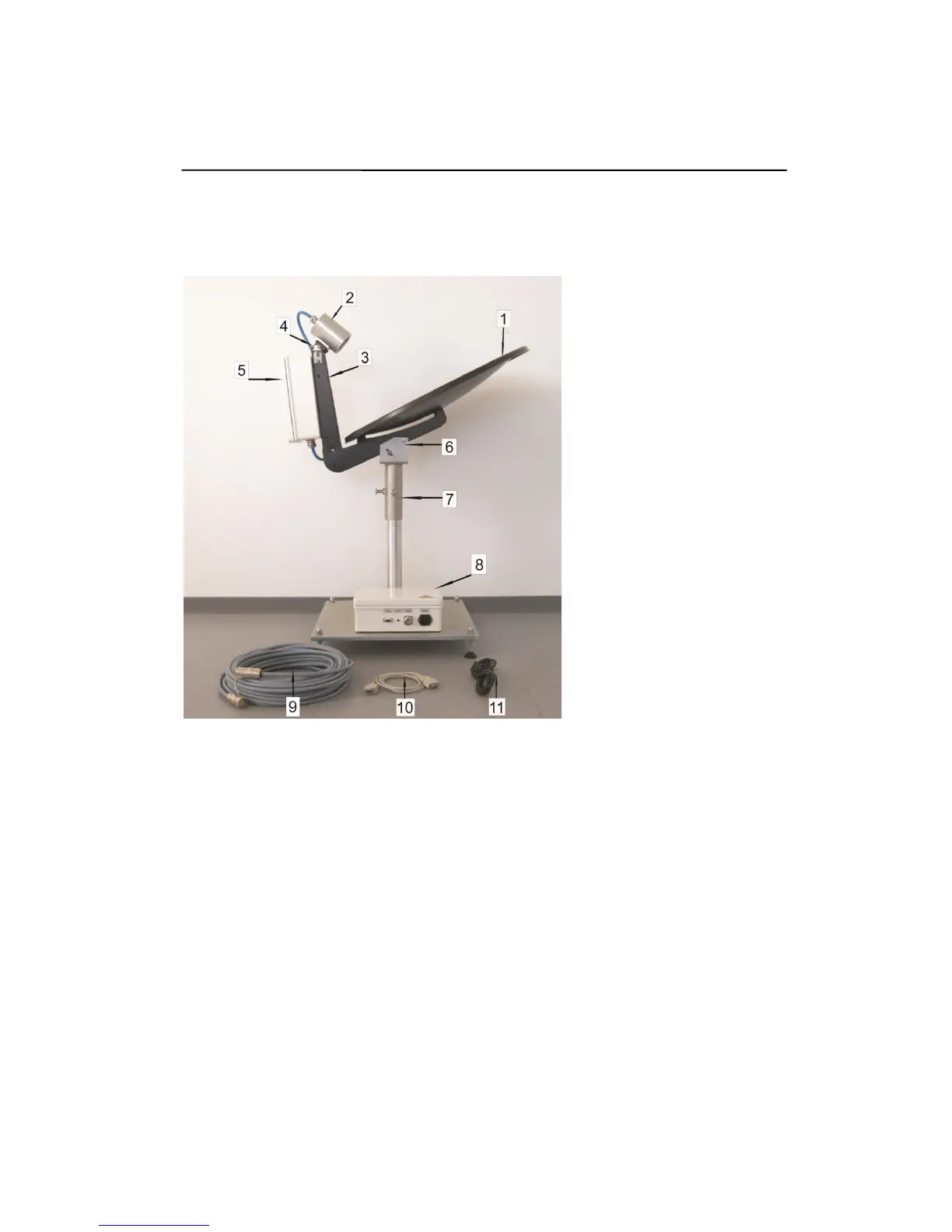

Figure 1: Components of the System
The MRR-PC, a commercial PC, (not part of delivery) must be ordered
separately. The operating system should be Windows® 2000 or XP.
(Windows® Vista and Windows 7 are supported with some limitations).
1- Parabolic Dish
2- Transceiver
3- Antenna Arm
4- Bubble Level
5- RCPD
6- Pivot
7- Tube Socket
8- Junction Box
9- Control Cable
10- Serial Cable
11- Power Cable
