6.3.3 Output Parameters Menu

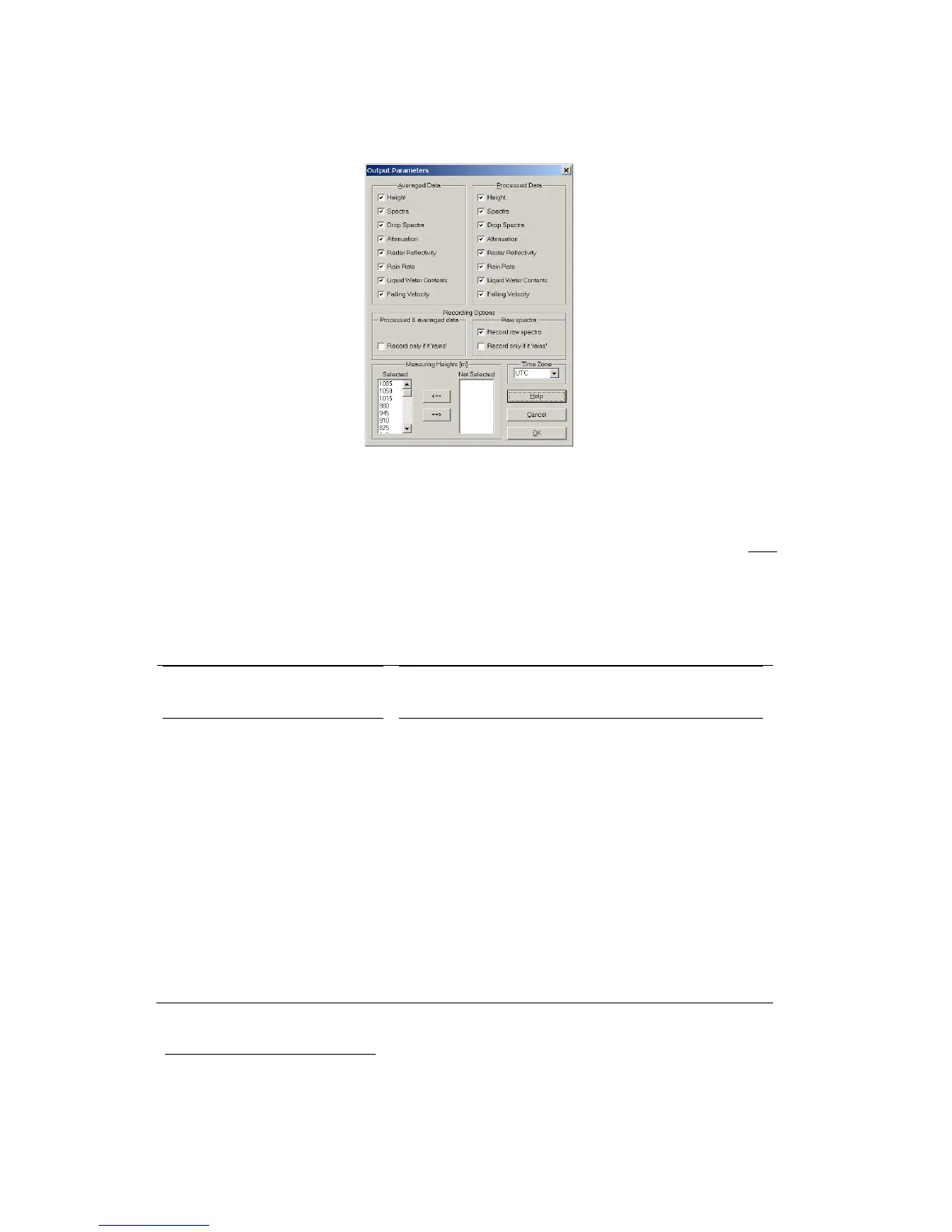

Figure 21: Output Parameters
The two upper panels shown in Figure 21 contain check boxes for configuring
selections of averaged data and processed data (instantaneous data)
separately for recording. Processed data are calculated on the basis of one
raw spectrum
1
. Averaged Data are processed on the basis of an average of
multiple raw spectra, depending on the selected averaging time. The
selectable variables are described in the table below.
Selection of
causes the recording of
Height
2
Measuring height above ground
Spectra
Spectral volume reflectivity
Drop Spectra
Drop diameter and number of drops per
volume and diameter
Attenuation
Two way path integrated attenuation
Radar Reflectivity
Radar reflectivity factor and attenuated radar
reflectivity factor
Rain Rate
Vertical volume flux of liquid water per unit
area
Liquid Water Content
Mass of liquid water per volume
Falling Velocity
Doppler velocity (1. moment of the spectrum)
1
raw spectra and the processed data represent already averages over 10 seconds, these
averages are calculated out of approx. 78 instantaneous spectra.
2
The output variable Height should always be selected, as this facilitates further processing of
recorded data.
