METER SATURO - 3.2.3 INFILTROMETER HEAD

18
SYSTEM
14.4 cm
6 cm
5 cm

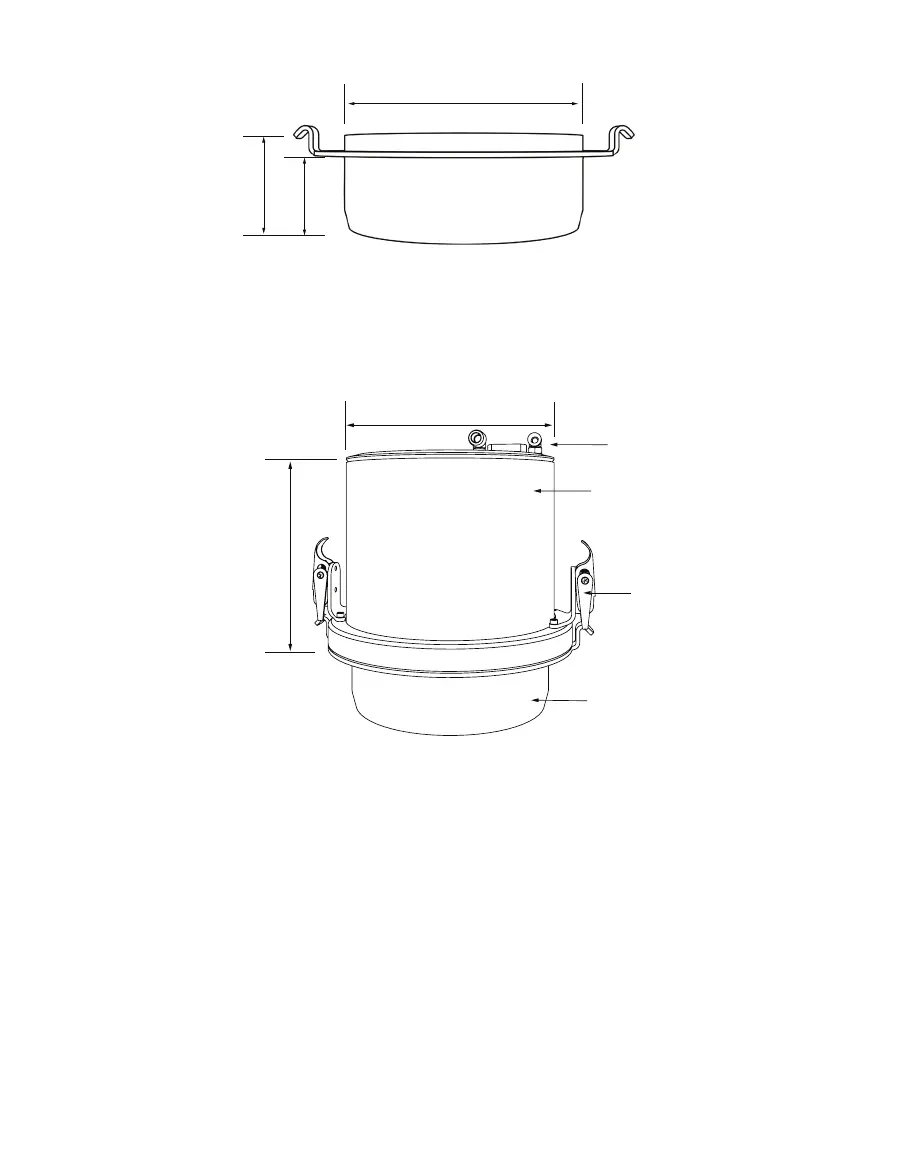

Figure26 5-cm insertion ring
3.2.3 INFILTROMETER HEAD
The infiltrometer head houses the water level (depth) sensor (to control the water level),
water connection, and air connection with push-to-connect fittings (Figure27).
Ring clamps
Insertion ring
Infiltrometer head
Connectors
17.2 cm
18.3 cm
Figure27 Infiltrometer head
3.2.4 WATER SUPPLY TANK
The water supply tank holds up to 5 gal and is sufficient for lower permeability sites
(Figure28). Some sites with higher infiltration rates will use more than 5 gal of water in the
time necessary to complete a measurement. The Y-connector may be used to connect two
water tanks to SATURO, doubling the water supply available for a measurement.
