OPERATION
To operate the TEROS 54 Removal Tool, follow the steps below.
1. Remove the protective cap from the thread of the TEROS 54.
2. Screw the eyebolt into the thread.
3. Insert the vertical leg (A) of the lever tool into the base.
4. Connect the carabiner to the eyebolt.
5. Gently pull the TEROS 54 out of the soil by pressing down on the lever arm several times.
Retighten the tension strap.

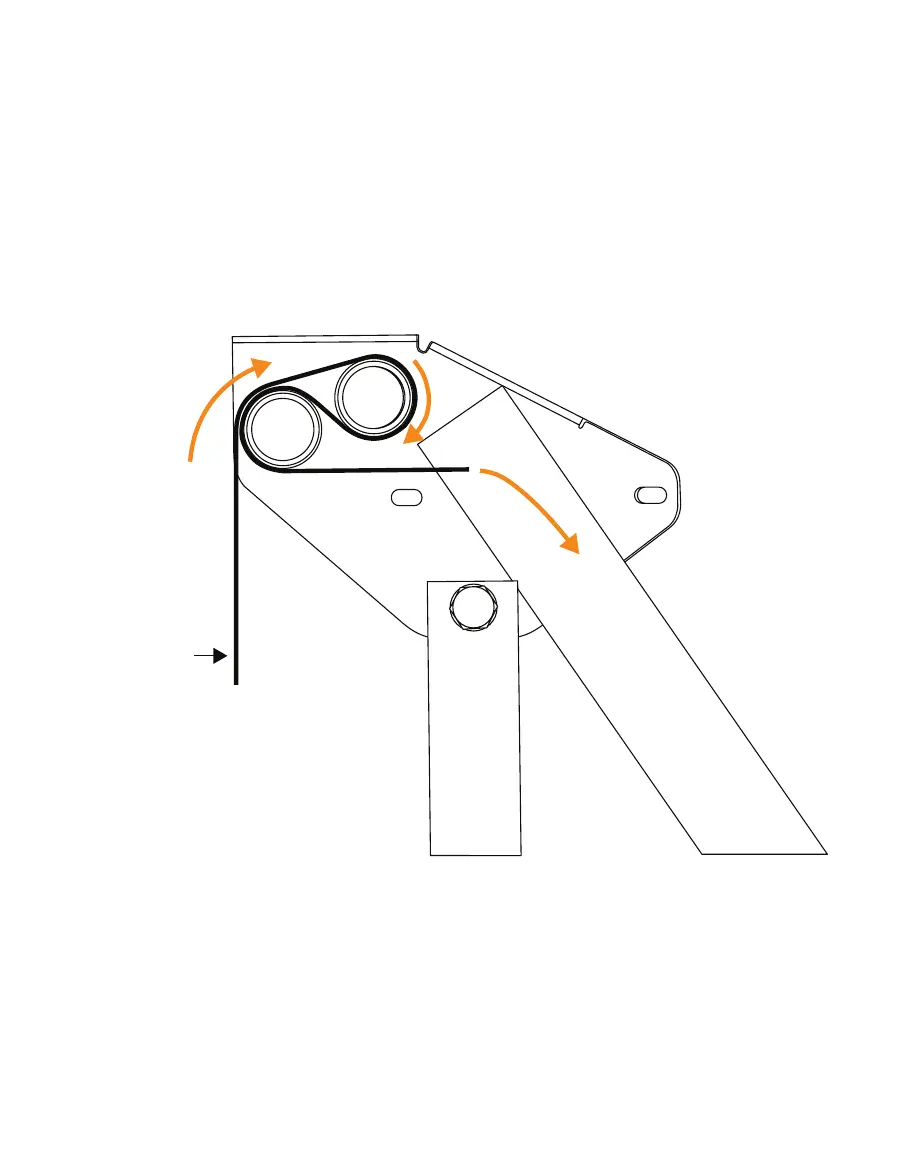

NOTE: If the tension strap has slipped out of the lever tool, reinsert the tension strap into the lever tool
according to Figure12.
Start to reinsert
here—follow
arrows when
feeding tension
strap
Tension strap
Figure12 Insert tensioning strap into lever tool
