2. Instrument description
2.1 Instrument casing
The instrument is housed in a plastic casing, which maintains the protection class
defined in general specifications.
2.2 Operator’s panel
The operator’s panel consists of a custom LCD, a rotary switch, and a keyboard, see
the figure below.
TEST
GigaOhm 1kV
MI 3103
CAL

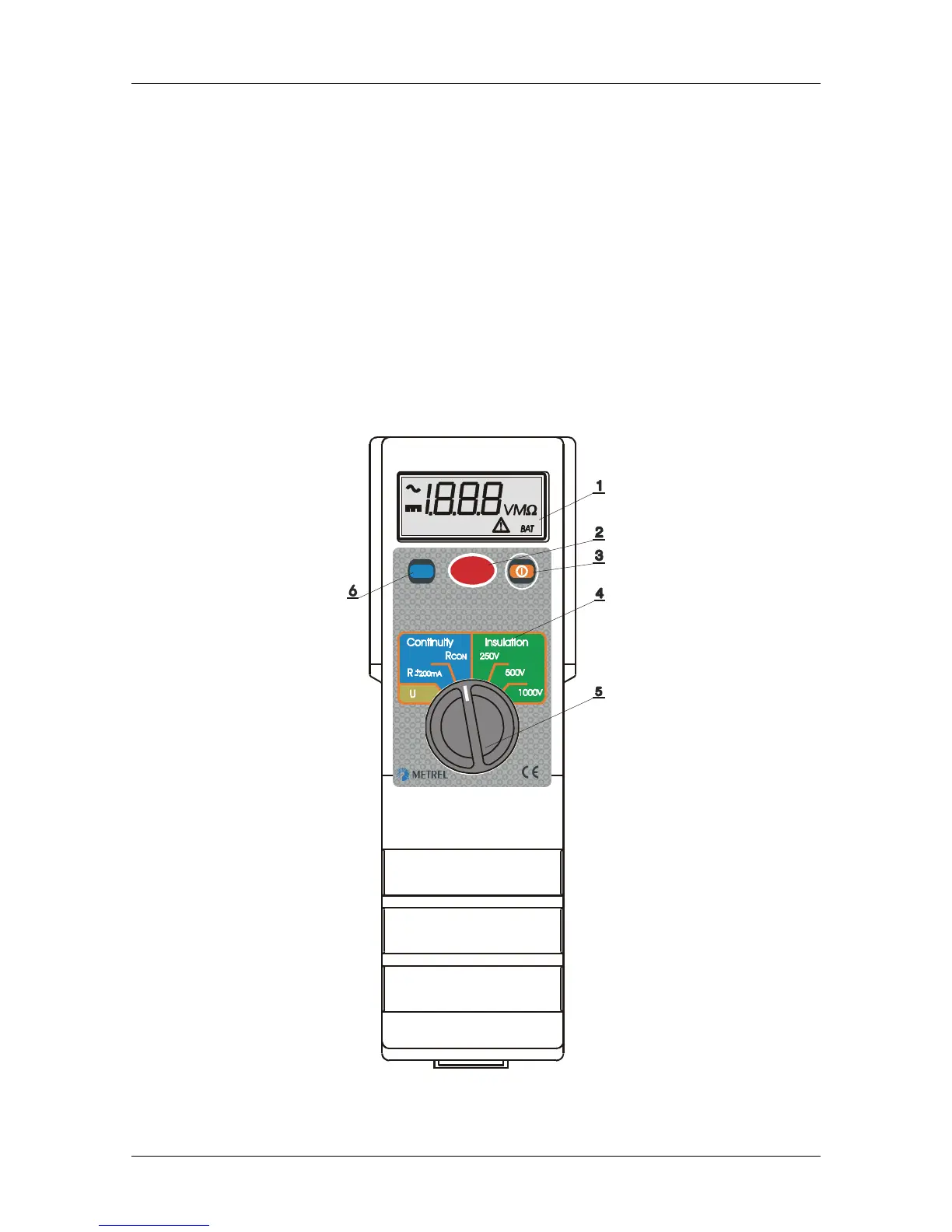

Fig. 1. Front panel
