Metrohm 904 Titrando User Manual

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
2 Overview of the instrument
904 Titrando
￭￭￭￭￭￭￭￭
9
USB 1
USB 2
MSB 1
MSB 2
MSB 3
MSB 4
Controller
Nr
Input 1
Ind.
Ref.
Temp.
100 - 240 V
iConnect.
f 50 - 60 Hz
P 45 W
Made by Metrohm
Herisau Switzerland
Pol.
1
2
3
4
5
6
7
8
9
10
11

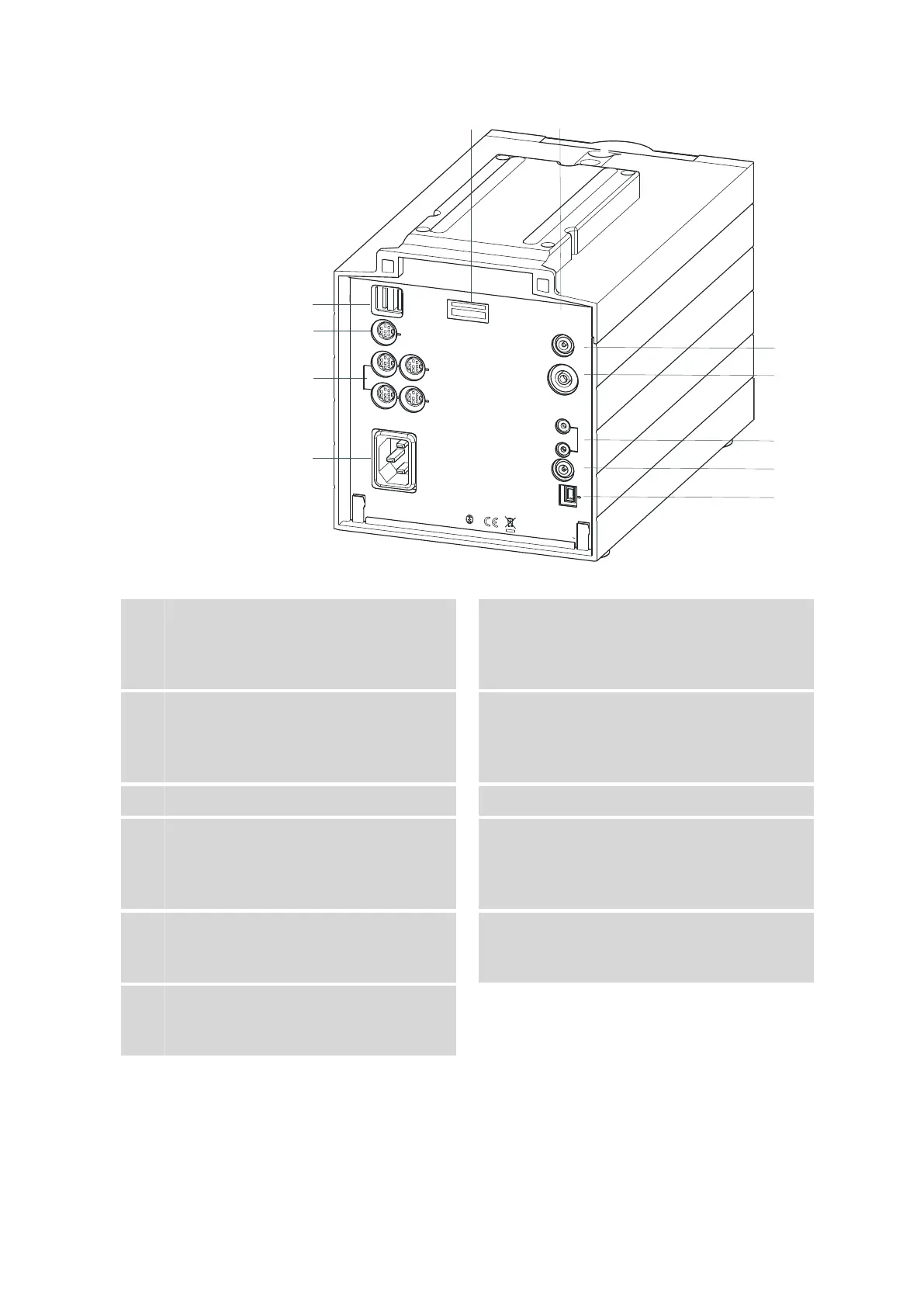

Figure 3 Rear 904 Titrando
1
Type plate
Contains specifications concerning supply
voltage, instrument type and serial number.
2
USB connector (USB 1 and USB 2)
USB ports (type A) for connecting printer,
keyboard, barcode reader, additional Titran-
dos, USB Sample Processor, etc.
3
Connector (Controller)
For connecting a Touch Control or a PC with
installed PC software. Mini DIN, 9-pin.
4
MSB connector (MSB 1 to MSB 4)
Metrohm Serial Bus. For connecting external
dosing devices, stirrers or Remote Boxes.
Mini DIN, 9-pin.
5
Power socket
6
Measuring interface 1 (Input 1)
7
Electrode connector (Ind.)
For connecting pH, metal or ion-selective
electrodes with integrated or separated ref-
erence electrode. Socket F.
8
Electrode connector (Ref.)
For connecting reference electrodes, e.g.
Ag/AgCl reference electrode. Socket B,
4 mm.
9
Temperature sensor connector (Temp.)
For connecting temperature sensors (Pt1000
or NTC). Two B sockets, 2 mm.
10
Electrode connector (Pol.)
For connecting polarizable electrodes, e.g.
double Pt wire electrodes. Socket F.
11
Electrode connector (iConnect)
For connecting electrodes with integrated
data chip (iTrodes).
