3 Installation
904 Titrando
￭￭￭￭￭￭￭￭
19
￭ Connect the Remote Box connection cable to one of the sockets
marked with MSB on the rear of the control instrument.
￭

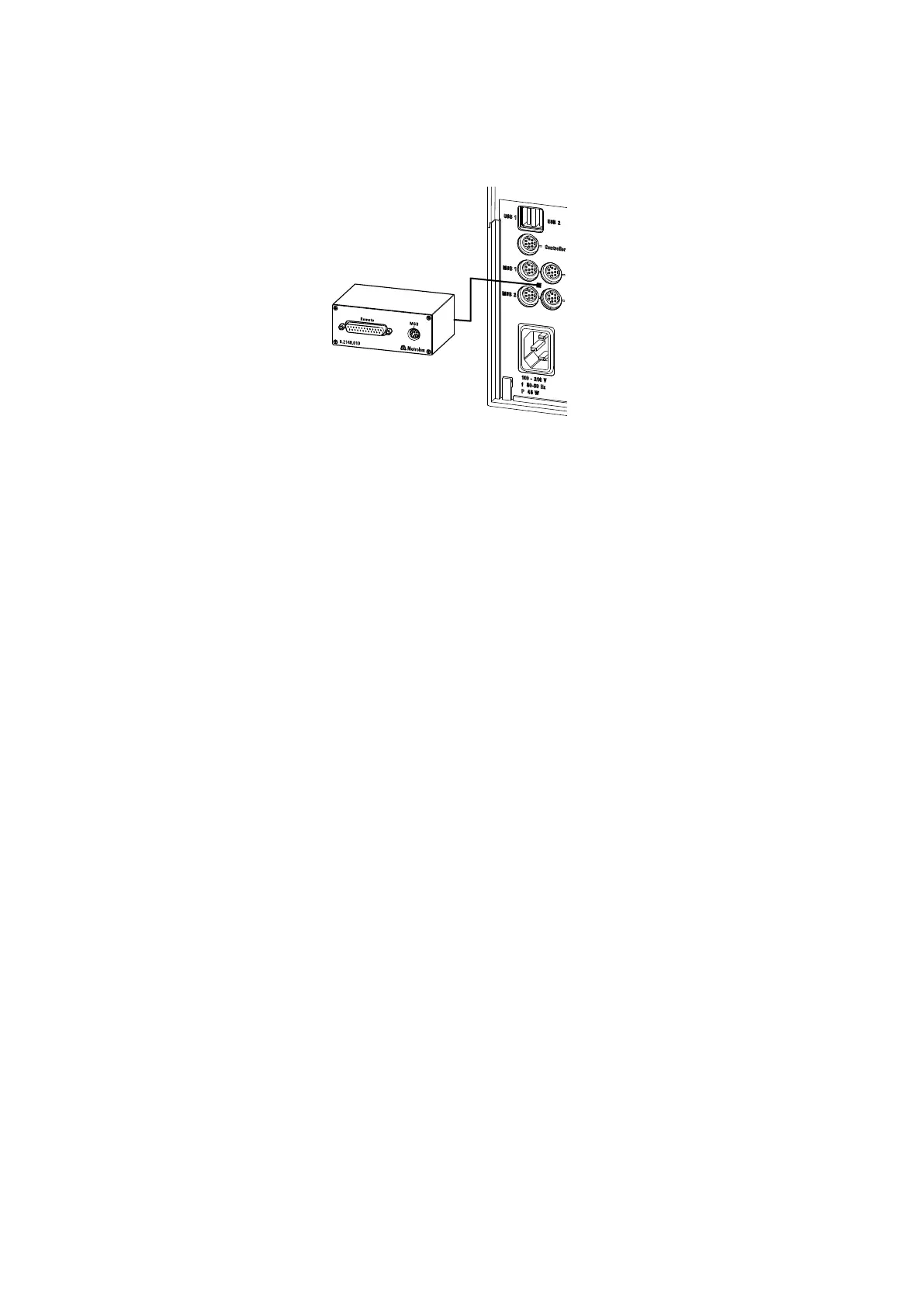

Figure 10 Connecting the Remote Box
You can connect the following instruments to the remote connector,
among others:
￭ 849 Level Control (fill level monitoring in a canister)
￭ 731 Relay Box (switch box for 230/110 volt alternating current sockets
and low-voltage direct current outlets)
￭ 843 Pump Station (for complex sample preparations or for rinsing
external titration vessels)
The Remote Box also has an MSB socket at which a further MSB device,
e.g. a dosing device or a stirrer, can be connected.
You will find precise information concerning the pin assignment of the
interface on the Remote Box in the appendix.
3.4 Connecting USB devices
3.4.1 General
The 904 Titrando has two USB connectors (type A sockets) for peripheral
devices with USB interfaces. The Titrando functions as a USB hub (distribu-
tor) no matter how it is operated. If you wish to connect more than two
devices to the USB, you can also use an additional, commercially available
USB hub.
