3 Installation
904 Titrando
￭￭￭￭￭￭￭￭
17

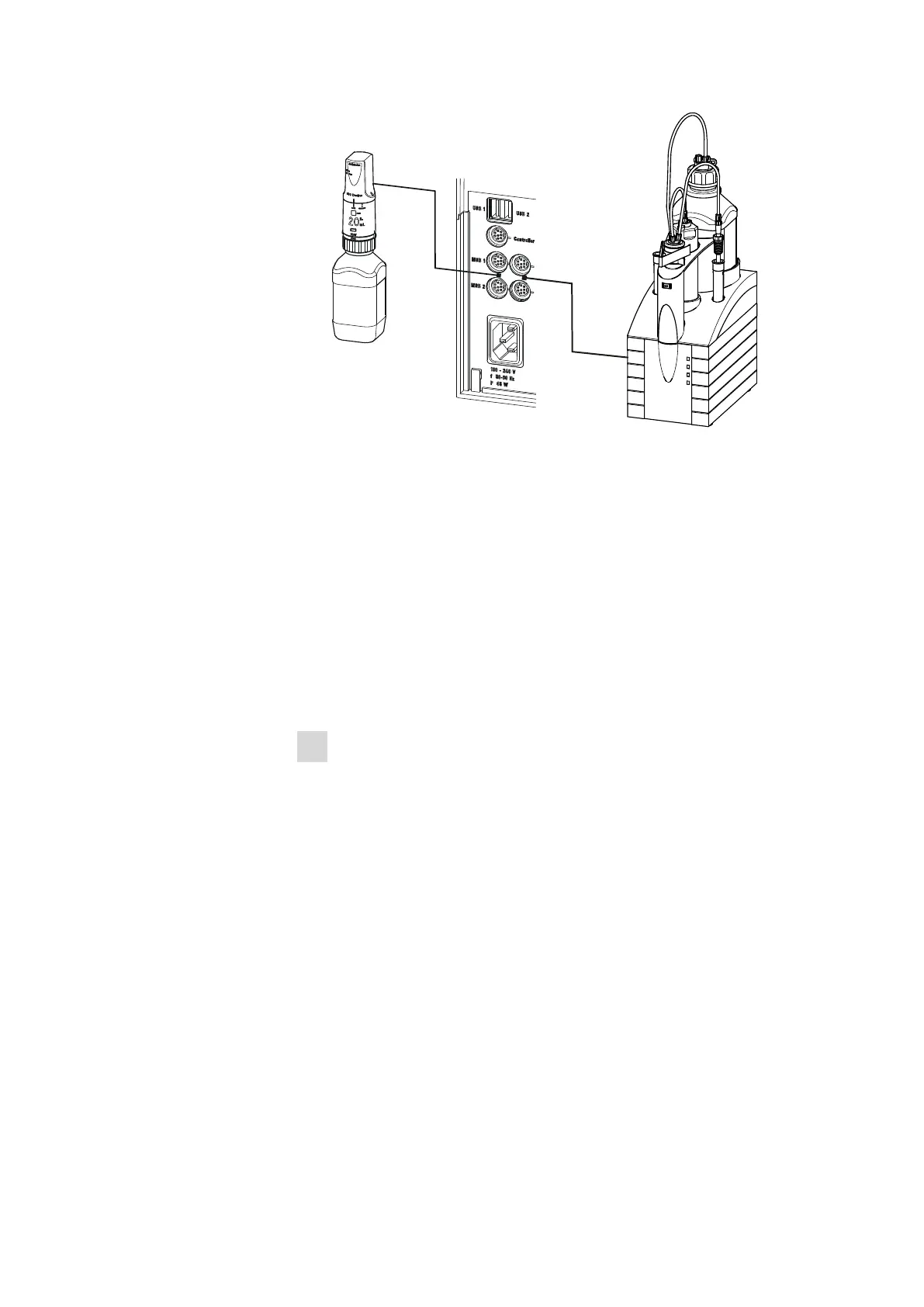

Figure 7 Connecting a dosing device
3.3.2 Connecting a stirrer or titration stand
You can use the following instruments:
￭ 801 Stirrer
￭ 803 Ti Stand
These devices have a built-in magnetic stirrer (stirring "from below"):
￭ 804 Ti Stand with rod stirrer 802 Stirrer
This device has no built-in magnetic stirrer (stirring "from above"):
Connect a stirrer or a titration stand as follows:
1
Connecting the stirrer or titration stand
￭
￭ Connect the connection cable of the magnetic stirrer or of the
titration stand to one of the sockets marked with MSB on the
rear of the control instrument.
￭ 804 Ti Stand only: Connect the rod stirrer to the stirrer connector
(socket with stirrer symbol) of the titration stand.
￭
