Mounting the cylinder unit
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
38
￭￭￭￭￭￭￭￭

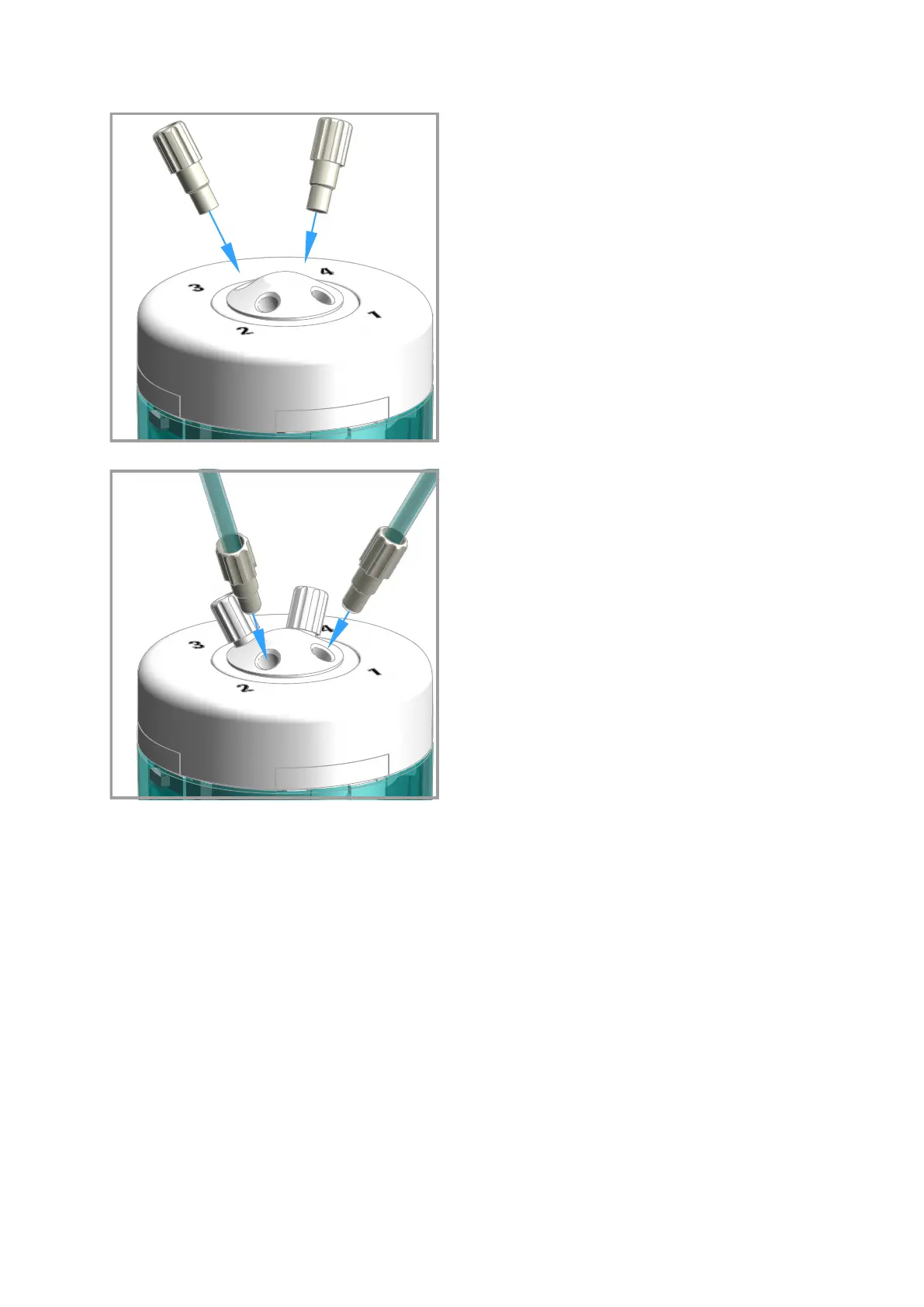

Mounting the stoppers
￭ Screw a stopper (6.1446.010) in each of the
two ports 3 and 4.
￭ Firmly tighten the stoppers with the wrench
(6.2739.000).
Mounting the tubings
￭ Tighten an FEP tubing (6.1805.100) into
port 1.
This tubing works as a dosing tubing.
Tighten the other end to the dosing tip.
￭ Tighten the second FEP tubing (6.1805.100)
into port 2.
This tubing works as a filling tubing. Tighten
the other end to the OMNIS Liquid Adapter.
￭ Firmly tighten the screws with the wrench
(6.2739.000).
