2 DESCRIPTION
2.1 Product and warning signs
2.1.1
Product signs
All product signs attached to the pump are shown below.

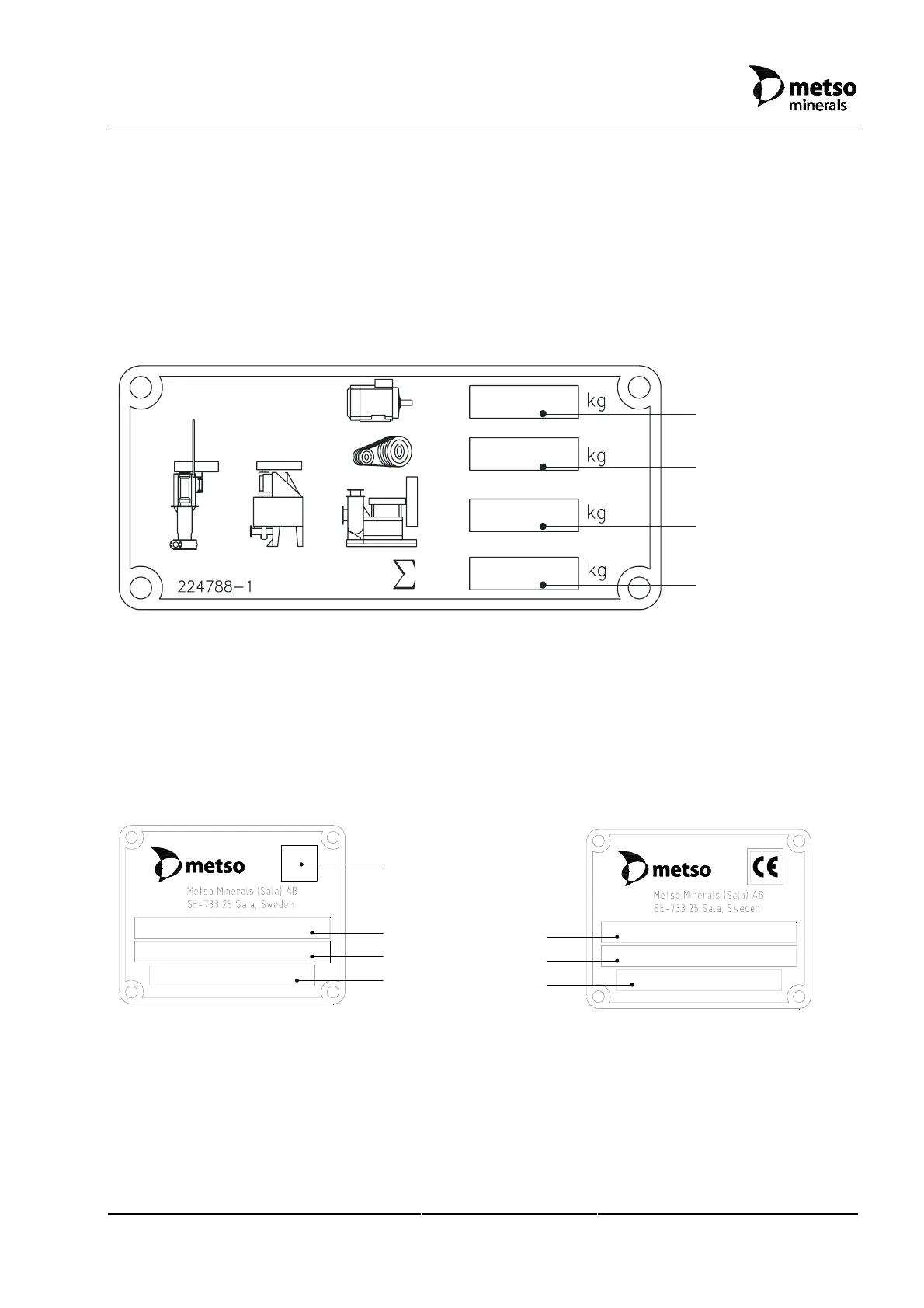

Figure 2.1.1-1 Weight plate
The weight sign is mounted next to the machine sign. When the pump is supplied without
motor and drive, only the weight of the pump is stamped on the sign. In which case the
total weight is stamped on the sign by the mechanic who fits the motor and drive on the
pump.
Pump delivered without motor Pump delivered with motor
Space for CE-mark
Pump type
Pump number
Year of manufacture
Figure 2.1.1-2 Machine plate
A machine sign containing information as above is affixed to the pump.
A pump delivered with motor has a machine sign with CE-mark. When the pump is
delivered without motor the CE-mark has to be affixed when the motor is assembled.
The CE-mark is included in the pump delivery.
Motor weight
Drive weight
Pump weight
Total weight
