Slurry Pump
WH16AM1TAA0EN_02A.DOC
JAN
04-W51
Care and maintenance
5/6
2.
Two proprietary packing extractors to fac
ilitate the removal of t
he packing will also be
advantageous.

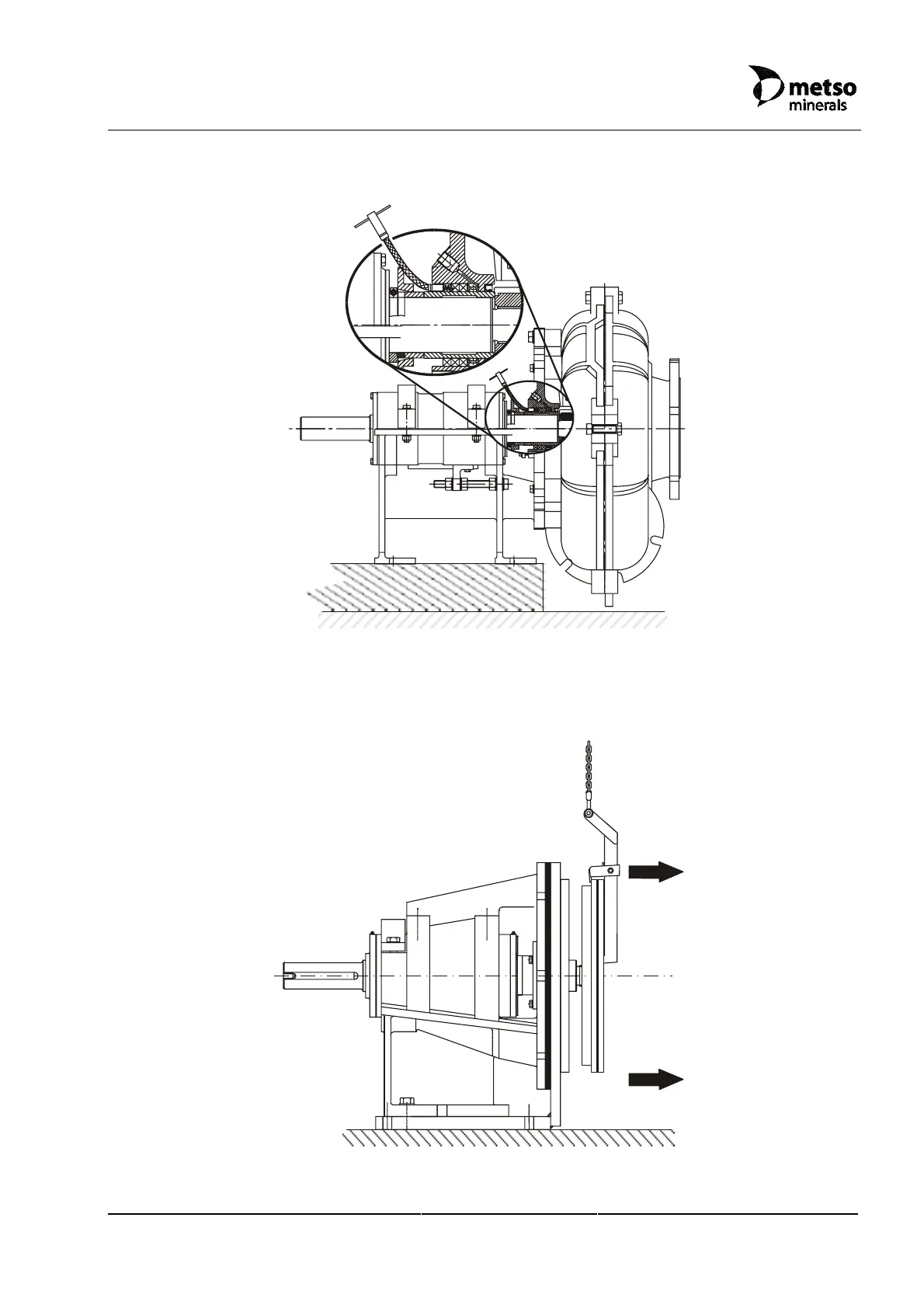

Figure 9.3-2 Packing extractor
3.
Back-liners for large pumps are very heavy.
Specially designed ba
ck-liner lifting tools
allow safe handling of the components.
Figure 9.3-3 Back-liner lifting tool for metal pumps
43
45
Table of Contents
Default Chapter
2
Table of Contents
2
1 General
4
About this Manual
4
Transport and Storage
4
Pump Specification
10
Customer Service
11
2 Description
12
Product and Warning Signs
12
Applications
14
Design
14
Materials and Maximum Working Pressures
16
Surface Treatment
17
Performance Curves
20
Certificates & Test Results
21
3 Health & Safety
22
4 Description of Operation
24
5 Control System
28
6 Installation
29
General
29
Foundation Requirements
29
Installation Tools and Equipment
30
Installation Procedure
31
Pipe Connections & Pump Sump
34
Shaft Gland
36
7 Commissioning
37
8 Operating Instructions
38
Running Checks
39
9 Care and Maintenance
40
Safety Measures
40
Preventive Maintenance & Service Schedule
40
Tools and Special Equipment for Service and Maintenance
43
Dismantling and Assembly
49
Setting Pump Clearances
49
Shaft and Bearing Assembly - Removal and Fitting
64
Shaft and Bearings - Disassembly and Re-Assembly
66
10 Spare Parts
75
Recommended Stock of Spares
75
Spare Parts Drawing
76
Parts List
81
Special Tools
82
11 Appendices
83
Torque Table
83
Weights Table
85
