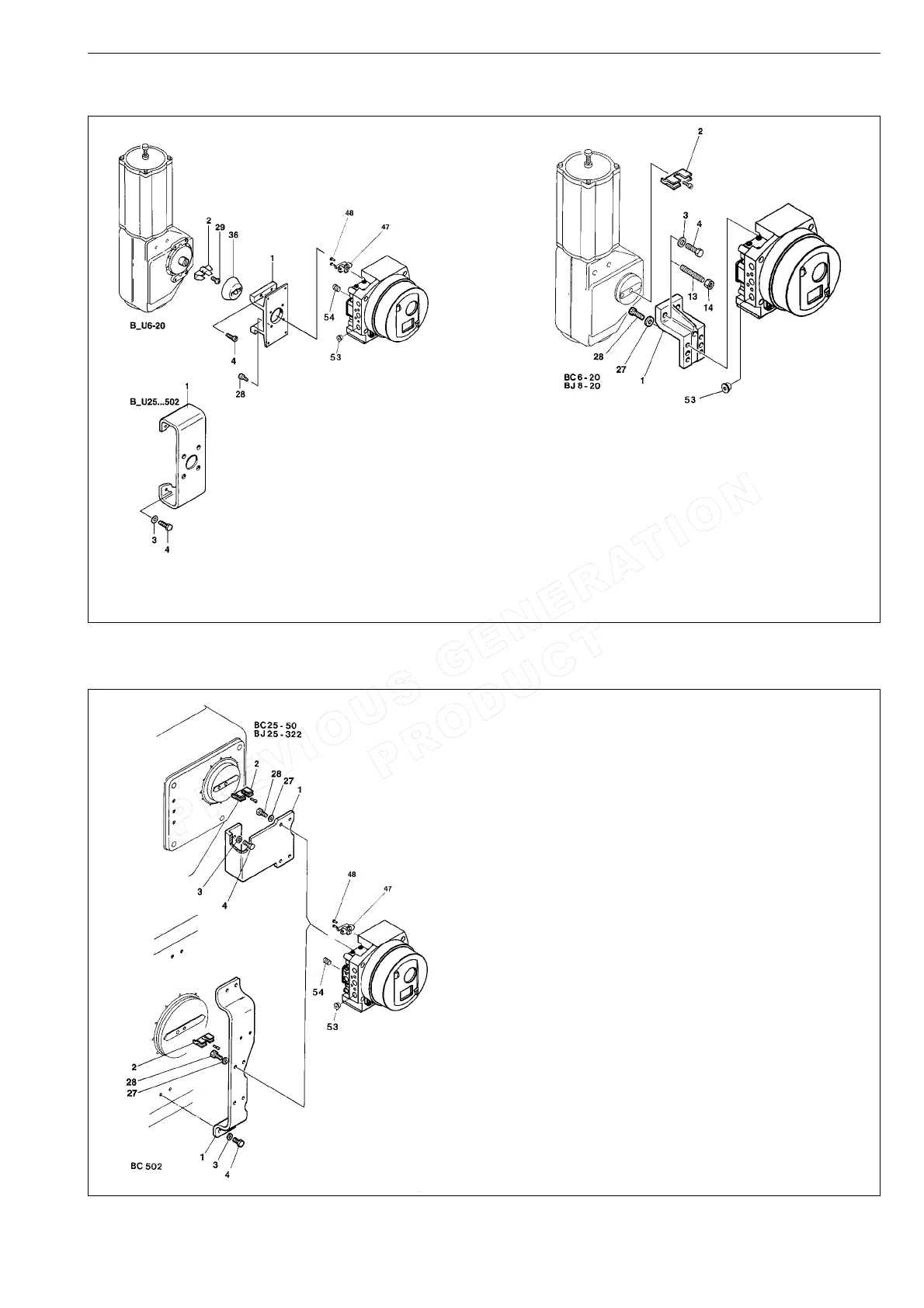

10.4 Mounting parts for B1C/B1J 6-20
actuators
10.5 Mounting parts for B1C/B1J 25-50,
B1C 502 and B1J322 actuators
Item Qty Description
1 1 Mounting bracket
21Ear
34Washer
44Screw
28 4 Screw
29 1 Screw
36 1 Couplings jacket
47 1 Coupler socket
48 2 Screw
53 1 Plug (BJ actuators only)
54 2 Plug
Item Qty Description
1 1 Mounting bracket
2 1 Draught piece
3 4 Washer
44Screw
13 2 Screw
14 2 Hexagon nut
28 4 Screw
29 1 Screw
47 1 Coupler socket
48 2 Screw
53 1 Plug (BJ actuators only)
54 2 Plug
ND9200
VDI/VDE 3845
ND9200
Neles
attachment face
attachment face
Item Qty Description
1 1 Mounting bracket
2 1 Draught piece
34Washer
44Screw
27 4 Washer
28 4 Screw
47 1 Coupler socket
48 2 Screw
53 1 Plug (BJ actuators only)
54 2 Plug
