IMO-I5500 11
V-SERIES SPARE PARTS LIST
Item No. Part No. Description
Cover with Position Indicator
1
VC009302 Small enclosure (150 – 600 in•lb)
VC009301 Large enclosure (1000 – 3000 in•lb)
Cover screw
VC091340 Small NEMA 4/4X enclosure
2
(150 – 600 in•lb)
VC091336 Small NEMA 4/4X/7&9 enclosure
(150 – 600 in•lb)
VC091564 Large enclosure (1000 – 3000 in•lb)
Potentiometer/Cam Shaft Gears
3
VC099090 90 degree Operation
VC099180 180 degree Operation
VC099270 270 degree Operation
Override shaft (replacement only)
4 VC091244 Small enclosure (150 – 600 in•lb)
VC093023 Large enclosure (1000 – 3000 in•lb)
Motor Gearbox
VC090101 115 VAC, 150 – 300 in•lb
VC090102 115 VAC, 600 in•lb
5 VC090201 115 VAC, 1000 – 3000 in•lb
VC090103 230 VAC, 150 – 300 in•lb
VC090104 230 VAC, 600 in•lb
VC090202 230 VAC, 1000 – 3000 in•lb
6 VC001020 Limit Switch
7 VC091352 Cam with set screw
Capacitor
VC093041 115 VAC, 150 – 600 in•lb
8 VC093061 115 VAC, 1000 – 3000 in•lb
VC093051 230 VAC, 150 – 600 in•lb
VC093071 230 VAC, 1000 – 3000 in•lb
Bracket, mounting, motor board w/screws
9 VC091695 Small enclosure (150 – 600 in•lb)
VC091698 Large enclosure (1000 – 3000 in•lb)
Bracket, motor board, upper
10 VC091684 Small enclosure (150 – 600 in•lb)
VC091688 Large enclosure (1000 – 3000 in•lb)
Motor board with screws
VC092015 115 VAC
VC092030 230 VAC

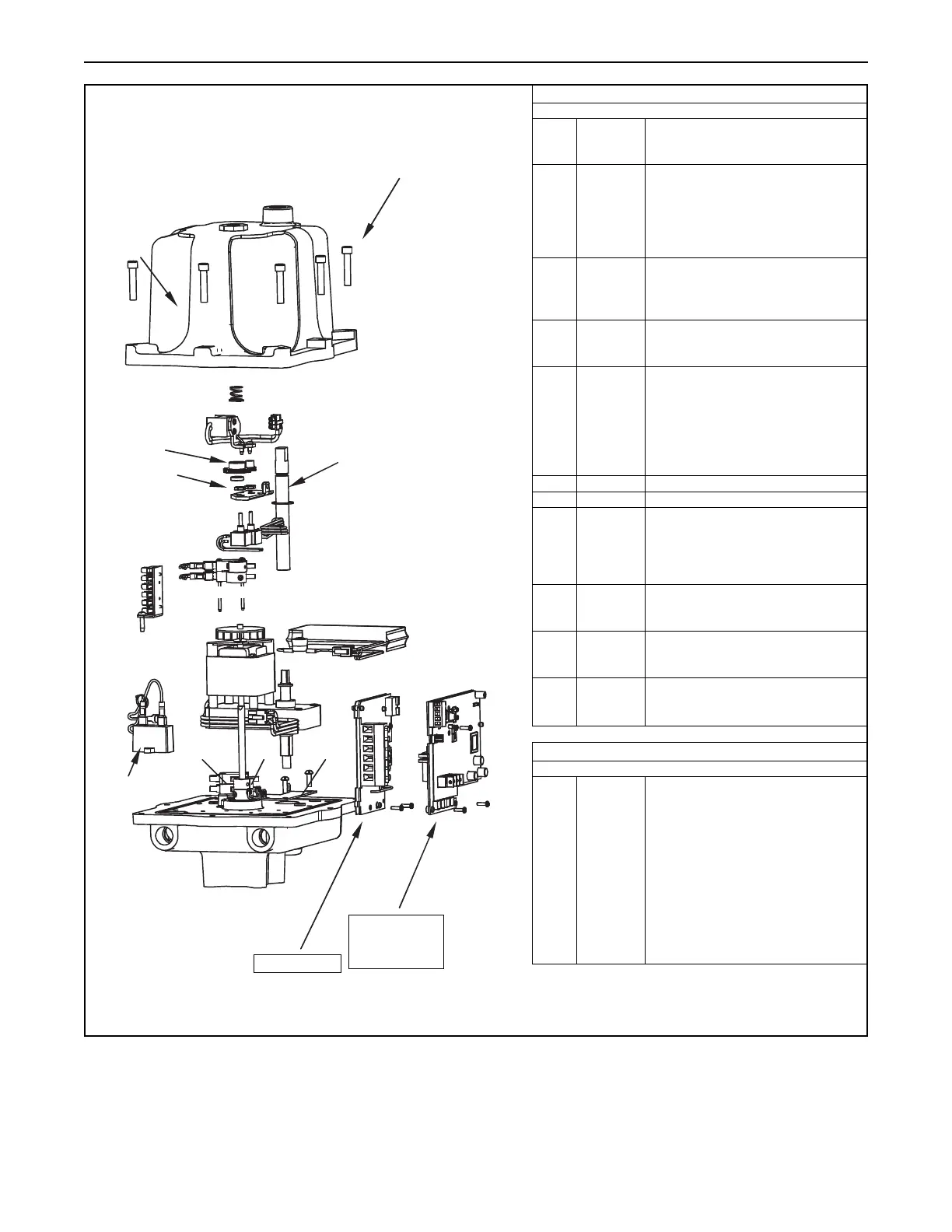

5.2 EXPLODED VIEW
Figure 11
V-SERIES OPTION KITS
Item No. Part No. Description
VC099715 Brake (ALL)
VC099200 Feedback pot (ALL)
VC099000 Extra limit switch (ALL)
VC099515 Heater Thermostat 115 VAC (ALL)
VC099523 Heater Thermostat 230 VAC (ALL)
VC099642 Control Board (ALL)
VC092065 Iso/Readback Board
Hand-wheel Override
VC009097 Small enclosure (150 – 600 in•lb)
VC009098 Large enclosure (1000 – 3000 in•lb)
VC099716 Tropical Heater/Thermostat 115 VAC
VC099723 Tropical Heater/Thermostat 230 VAC
①
➁
➂
➉
➃
⑧
➅
➆⑨
➄
Motor Board
Optional
Control Board
Shown
Optional
Heater Kit
Optional Extra Switch Kit
Optional
Feedback Pot Kit
Optional
Brake Kit
