Metso VALVCON V-Series Installation Maintenance And Operating Instructions

3.2 Option “I” – ISO 5211 Output
150 – 600 in•lb models are supplied with a 3/4” female
square output coupling; when the “I” option is selected
they are supplied with a 14 mm female square.
1000 – 3000 in•lb models are supplied with a 1” female
square output coupling; when the “I” option is selected,
1000 in•lb models are supplied with a 19 mm female
square and 1500 – 3000 in•lb models are supplied with a
22 mm female square.
This option is factory installed only.
6 IMO-I5500

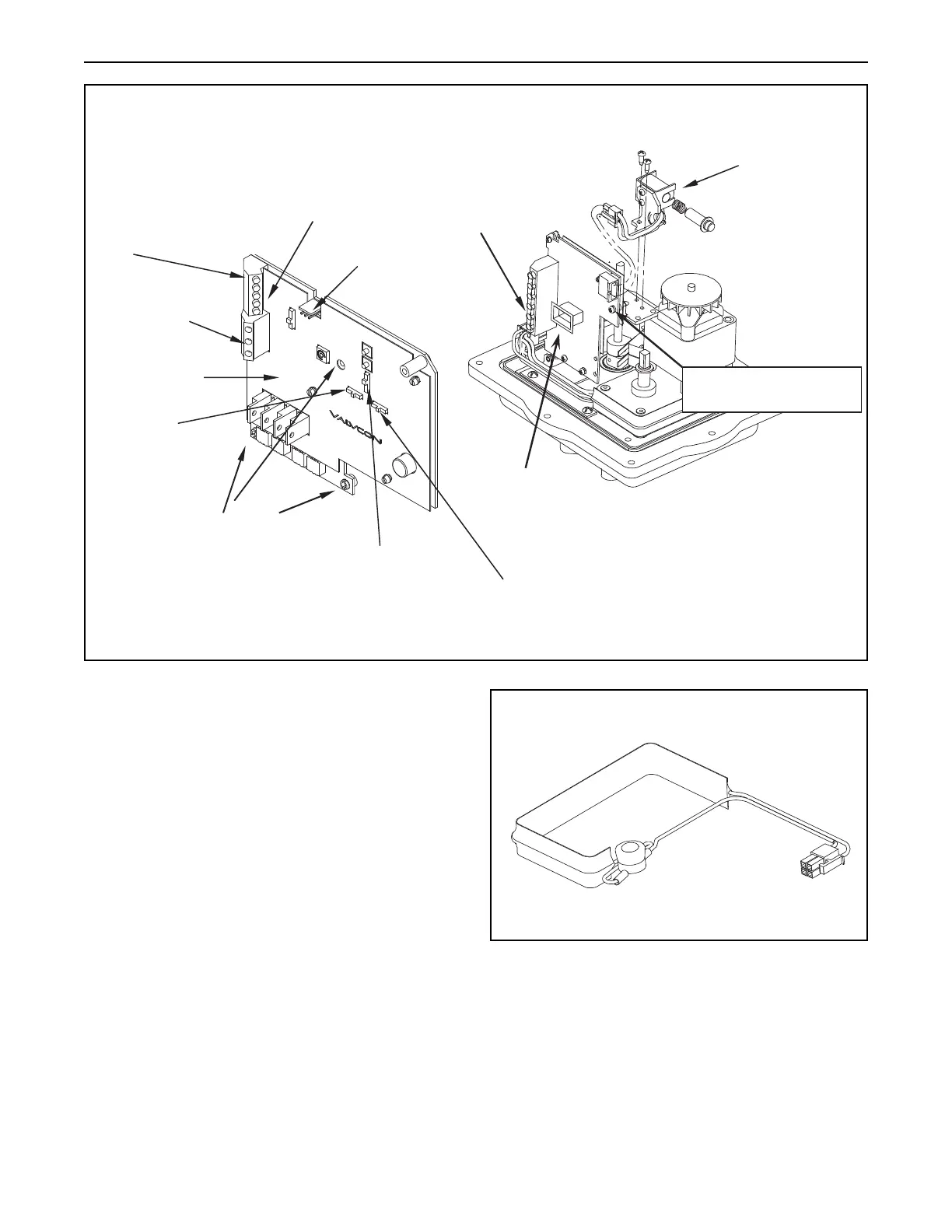

Optional Locking
Brake Assembly
Exploded View
Motor Board
Terminals 1 & 2
1 (AC Hot), 2 (Neutral)
Pot Connector
Optional Retransmit
Terminals - Connect D&E
To install P/N VC002065
board, discard this screw
AC Control Signal
Terminals - F, G & H
Selector Switch for
Manual or Run Mode
P/N VC002065
Board
Mounting Screw
Locations
10 Pin
Connector
Selector Switch for 2
Wire or 3 Wire Mode
Selector Switch for
Jogging or Latching
Mode
Figure 6
3 V-SERIES STANDARD OPTIONS
All V-Series options are designed to be easily installed in
the field. Options for all standard V-Series actuators are
universal and completely interchangeable with each
enclosure size.For additional V-Series Options,see (Table 4).
Voltage is not field changeable.
3.1 Option “H” – Tropical Heater and
Thermostat P/N VC099716,
P/N VC099723
The tropical heater and thermostat option is a self-adhesive,
resistance heater strip which is applied to the primary gear-
box. It installs with a plug-in connector and is recommended
in high-humidity applications.The tropical heater option is
also recommended in installations that experience wide
temperature swings in order to evaporate any condensation.
Thermostat is pre-set to activate at or below 90˚F and
deactivate at or above 110˚F. The tropical heater draws 15
watts @ 115 VAC; 40 watts @ 230 VAC.
This option can be installed in the field; for 115 VAC appli-
cations, order kit P/N VC099716 and for 230 VAC applica-
tions order kit P/N VC099723.
Figure 7
Option “H” Tropical Heater and Thermostat
Option “T” Standard Heater and Thermostat
DC Control Signal
Terminals - A, B & C
