34008236EN/AA - Page 7
1. Presentation

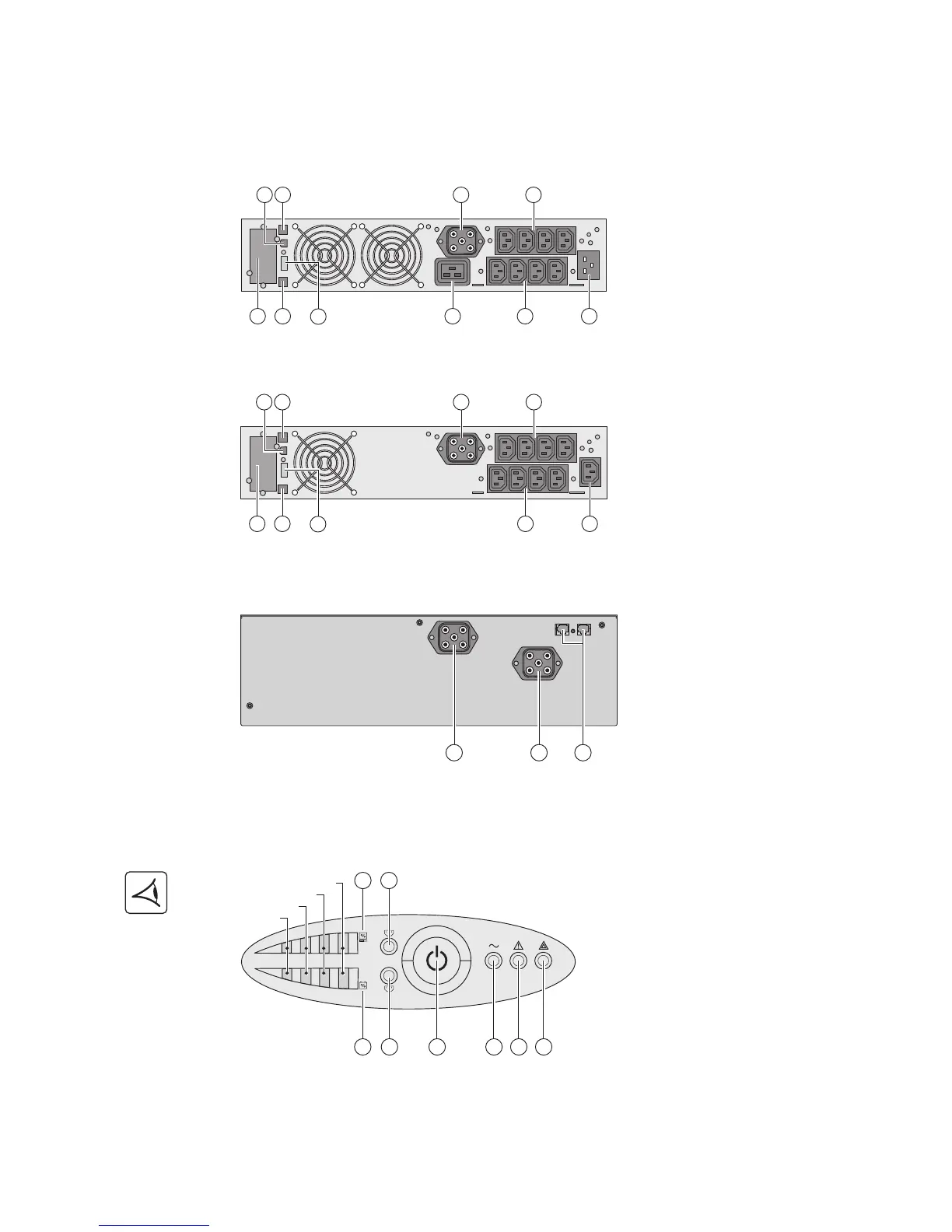

1.2 Rear panels
Evolution S 2500 / S 3000
Evolution S EXB (optional battery module)
1.3 Control panel
(1) USB communication port
(2) RS232 communication port
(3) Connector for automatic recognition of an
additional battery module
(4) Slot for optional communication card
(5) Connector for ROO (remote ON/OFF) or
RPO (Remote Power Off) control
(6) Connector for additional battery module
(except Evolution 2000)
(7) 16 A outlet for connection of equipment
(8) Two groups of 2 programmable outlets for
connection of equipment
(9) Groups of 4 outlets for connection of
equipment
(10) Socket for connection to AC-power
source
Evolution S 1250 / S 1750 / 2000
(12) Connectors for battery modules (to the
UPS or to the other battery modules)
(13) Connectors for automatic recognition of
battery modules
(20) Bargraph indicating the percent load
(21) Bargraph indicating battery charge level
(22) Programmable outlets 1 are supplied
with power
(23) Programmable outlets 2 are supplied
with power
(24) Lighted ON/OFF button for outlets
(25) Load protected LED
(26) Downgraded operation LED
(27) Load not protected LED
21
3 7
8
9 104
5
6
21
3
8
94
5
6
10
1312 12
1
2
22
23 24 25 26 27
20
21
0-25%
26-50%
51-75%
76-100%
