MGE UPS Systems Evolution 2000 RT 2U - Tower Installation; Rack Installation

34008236EN/AA - Page 9

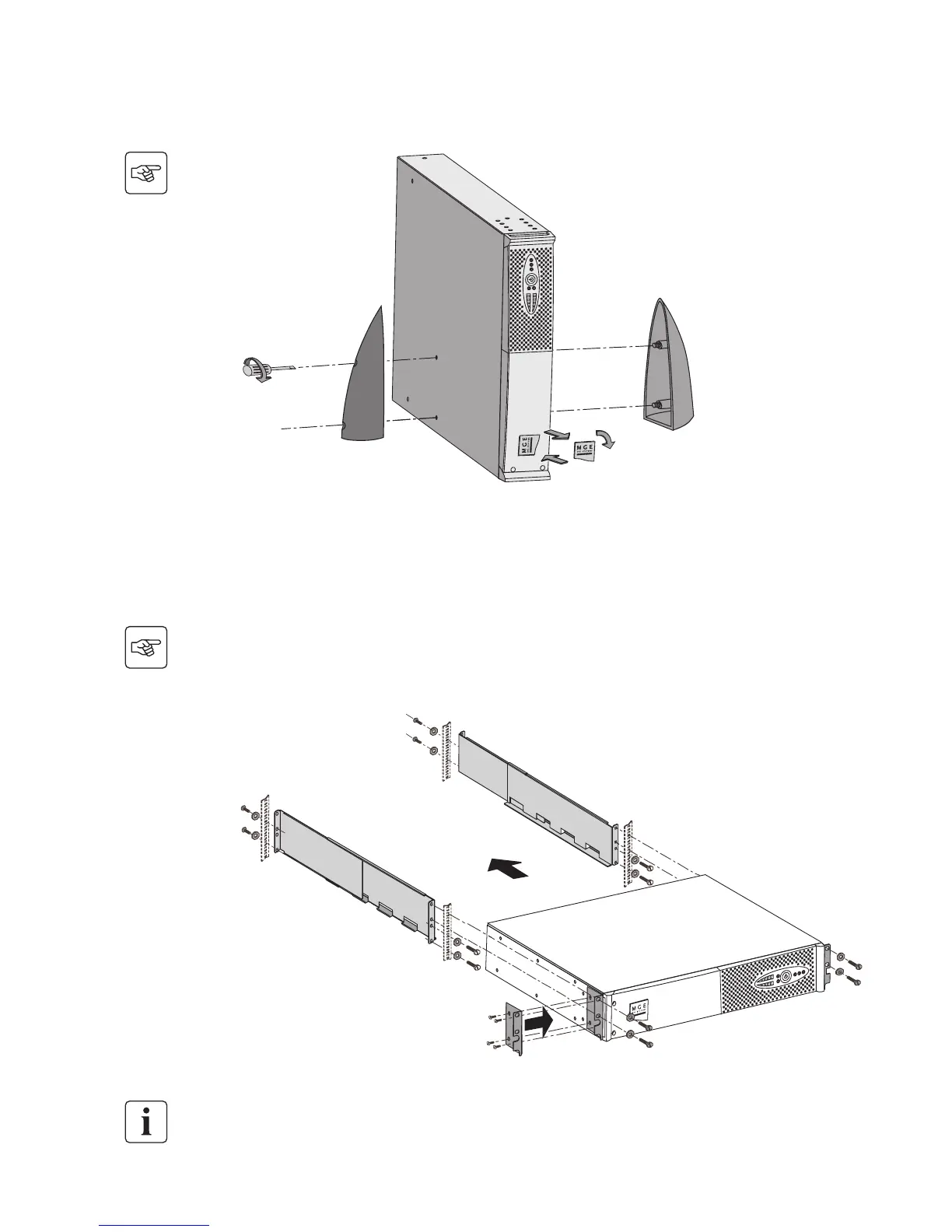

2. Installation
2.2 Installation in tower position
2.3 Installation in rack position
It is advised to first install the battery module, then the power module above.
Note. The two supports for the upright position are used on the RT 2U version only.
Follow steps 1 to 4 for module mounting on the rails.
The rails and necessary hardware are supplied by MGE UPS SYSTEMS.
1
1
2
3
3
2
4
2
4
1
1
1
1
