2. Installation
2.1 Unpacking and contents check

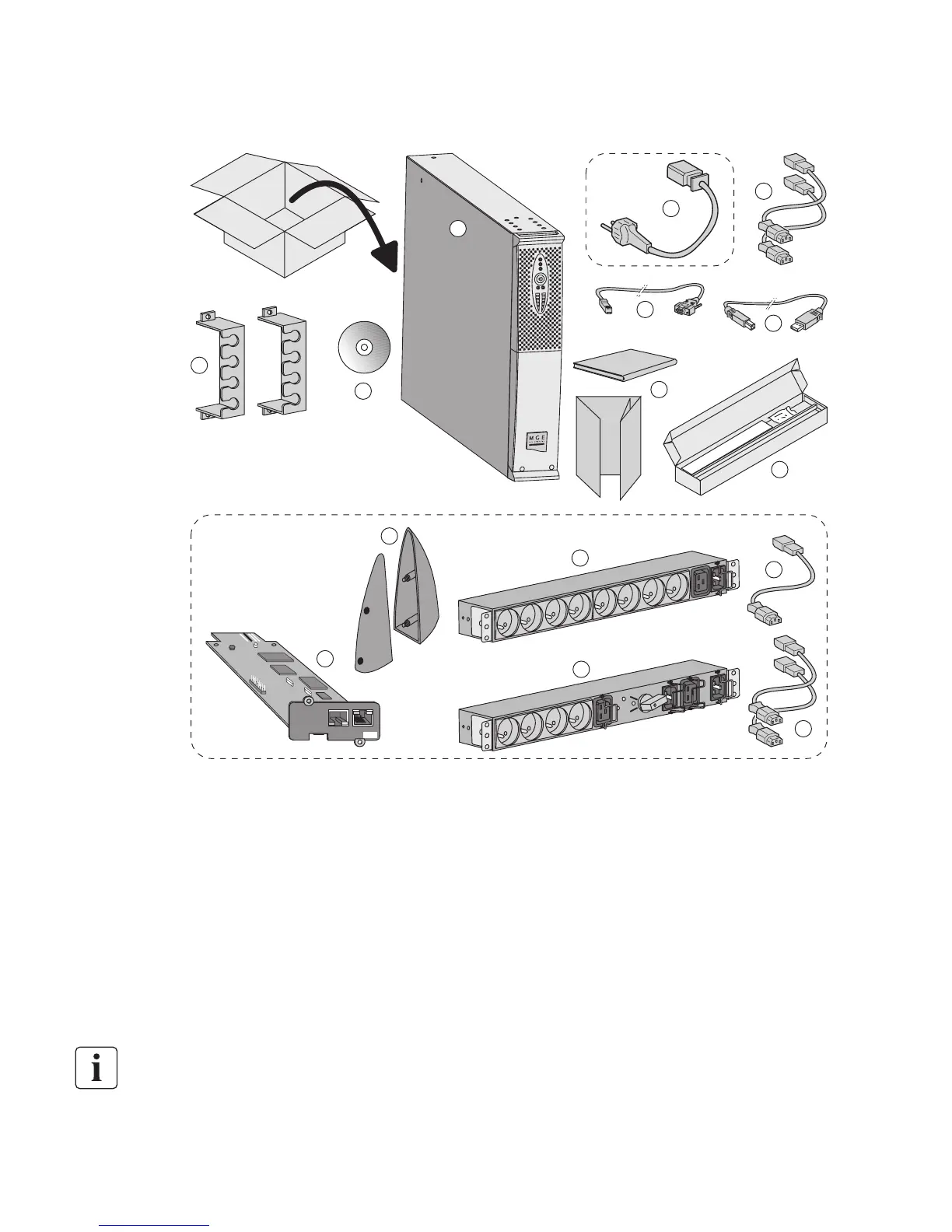

(30) Evolution UPS
(31) connection cable to AC-power source (Evolution S
2500 and S 3000 models only)
(32) 2 connection cables for the protected equipment
(33) RS232 communication cable
(34) USB communication cable
(35) 2 systems to secure power plugs
(36)Solution-Pac CD-ROM
(37) Documentation
(38) Mounting kit for 19-inch bays
Elements supplied depending on the version or optional
(39) 2 supports for the upright position (RT 2U version only)
(40) FlexPDU module (optional)
(41) connection cable between FlexPDU module and UPS
(42) NMC communication card (optional, standard on Netpack
versions)
(43) HotSwap MBP module (optional)
(44) connection cables between HotSwap MBP module and
UPS
Packing materials must be disposed of in compliance with all local regulations concerning waste.
Recycling symbols are printed on the packing materials to facilitate sorting.
