Pulsar ES 5+: E-51032513XT/AC
20
IN OUT
2
1
3
6
9
#
1
4
5
7
8
*
0
ACT.S 103 104
M/A 108 109
OR
IN
OUT
Note 1:
Following connection, the battery
automatically charges, whatever the position
of the ON/OFF button 3 "" .
Fig. 1
A
250V
Ue
/
In
/
Eing
Us/Out/Ausg
B
13a
Fig. 2
Note 2:
The batteries will provide full back-up time
after approximatively 8 hours of recharge
time.
Note 3:
The rating of input power cord must be not
less than the nominal input rating of Pulsar.
Pulsar ES 5+: 230V - 3,15A.

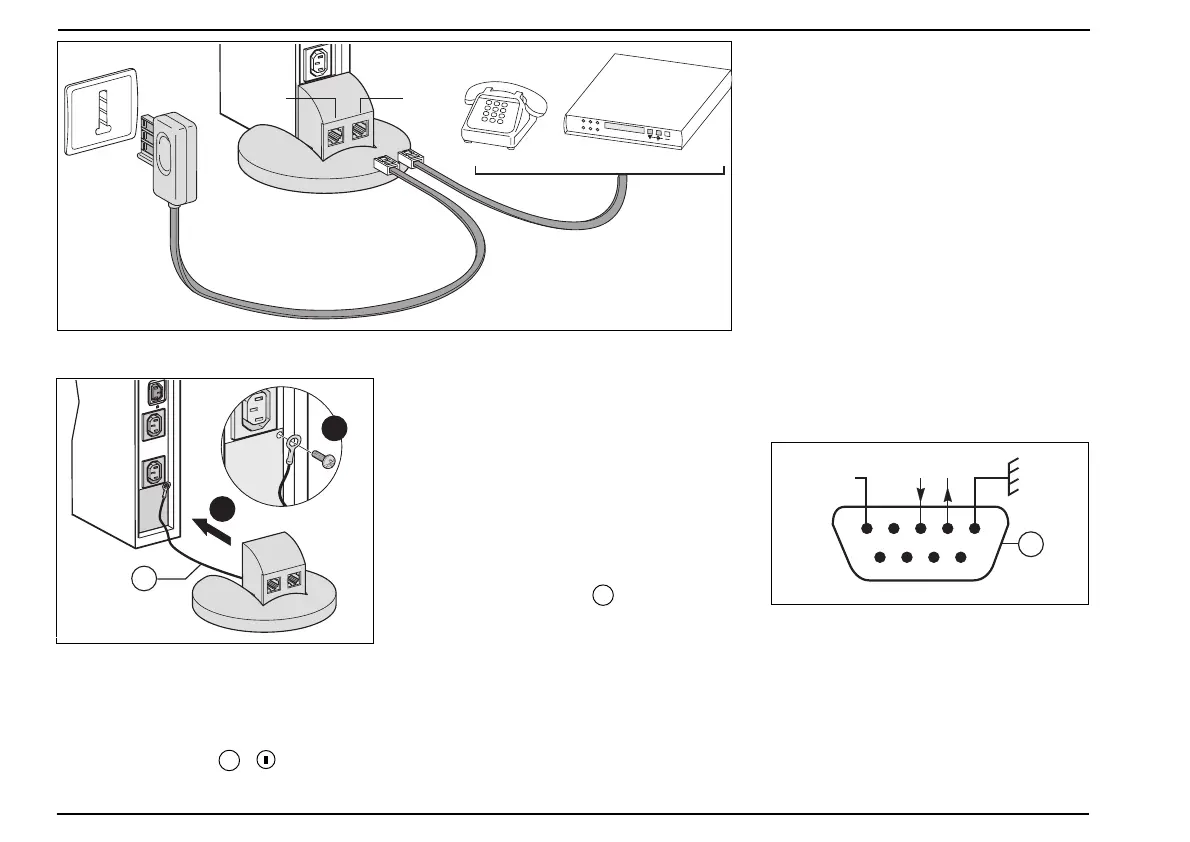

communication
The communication port 9 , at the rear of
Pulsar, manages more than 15 parameters
in the form of an RS232 serial link supported
by the communication protocol exclusive to
MGE UPS SYSTEMS.
Applications available on the Solution-Pac
CD-ROM are able to use those parameters
on most common operating systems and
offer following features:
c automatic graceful system shutdown at the
end of back-up time;
c power related alarms through on-screen
messages, paging, or E-mail;
c interactive graphical interface to monitor
the power;
c advanced power management features;
c energy saving through ON/OFF schedule
of your system.
The following information is available:
c rated battery backup time;
c battery status;
c system status;
c delay before restart;
c delay before shutdown;
c selftest result;
c fault indication;
c UPS shutdown;
c input voltage status;
c UPS identification;
c Plug & Play control;
c UPS status;
c communication status.
9
5432
1
9876
0V
RD TD
Contact your dealer for more information.
