MGE UPS Systems Upsilon STS 30A - Upsilon STS 400 to 600 a with Input;Output: 3 Phases + PEN; Upsilon STS 400 to 600 a with Input: 3 Phases + PEN, Output: 3 Phases + PE + Neutral

Page 14 - 34020113EN/AA
N
PEN
N
PE PEN
S1 S2
N L1 L2 L3 N L1 L2 L3 N L1 L2 L3
N
PEN
PEN PEN
S1 S2
N L1 L2 L3 N L1 L2 L3 N L1 L2 L3

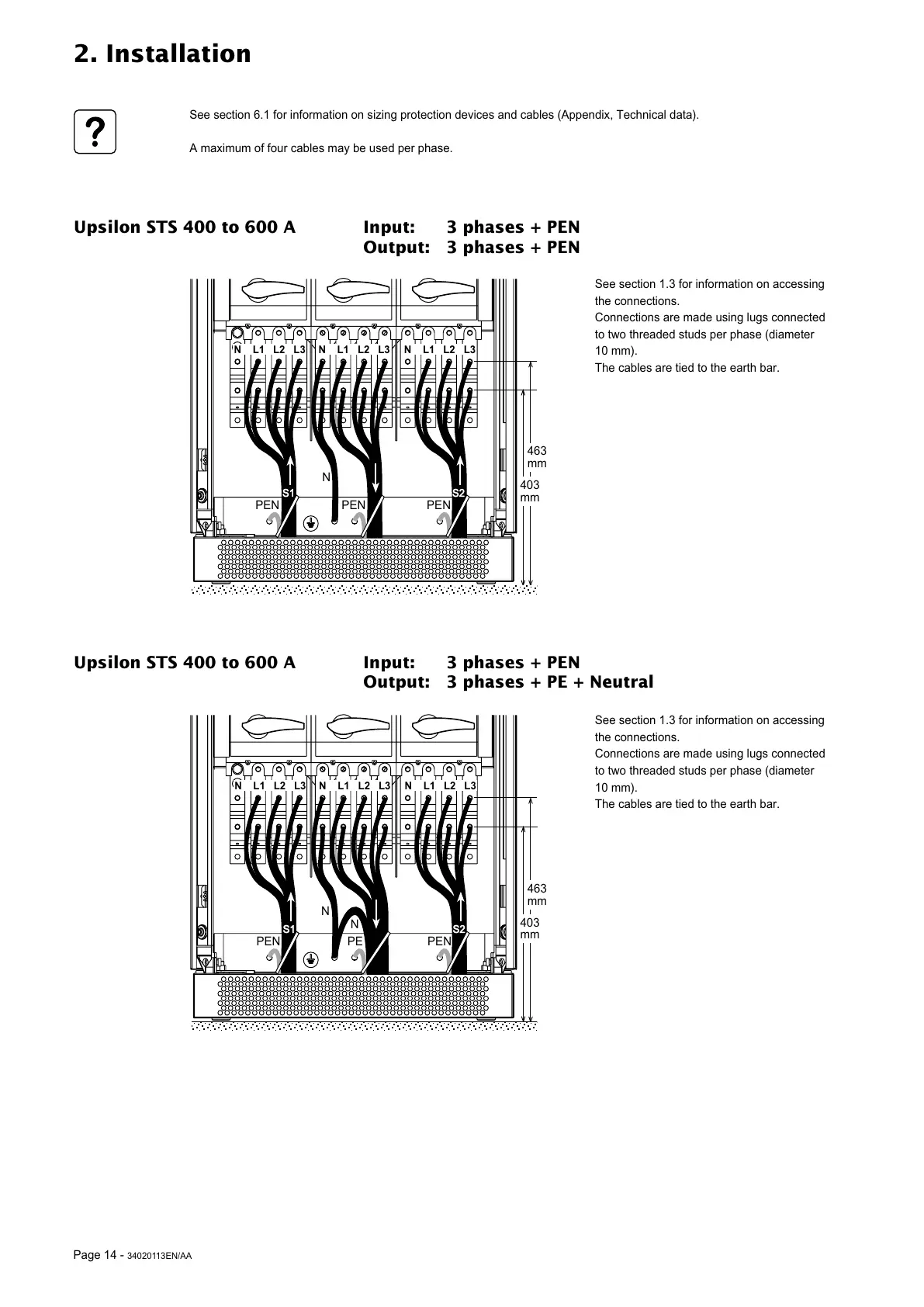

Upsilon STS 400 to 600 A Input: 3 phases + PEN
Output: 3 phases + PEN
See section 1.3 for information on accessing
the connections.
Connections are made using lugs connected
to two threaded studs per phase (diameter
10 mm).
The cables are tied to the earth bar.
2. Installation
463
mm
403
mm
See section 6.1 for information on sizing protection devices and cables (Appendix, Technical data).
A maximum of four cables may be used per phase.
Upsilon STS 400 to 600 A Input: 3 phases + PEN
Output: 3 phases + PE + Neutral
See section 1.3 for information on accessing
the connections.
Connections are made using lugs connected
to two threaded studs per phase (diameter
10 mm).
The cables are tied to the earth bar.
463
mm
403
mm
