MGE UPS Systems Upsilon STS 30A - Cable Running for Cables Entering through the Top of the Upsilon STS 30 to 250 a Cabinet; Connection of the Emergency Power off Terminal Block

Page 16 - 34020113EN/AA

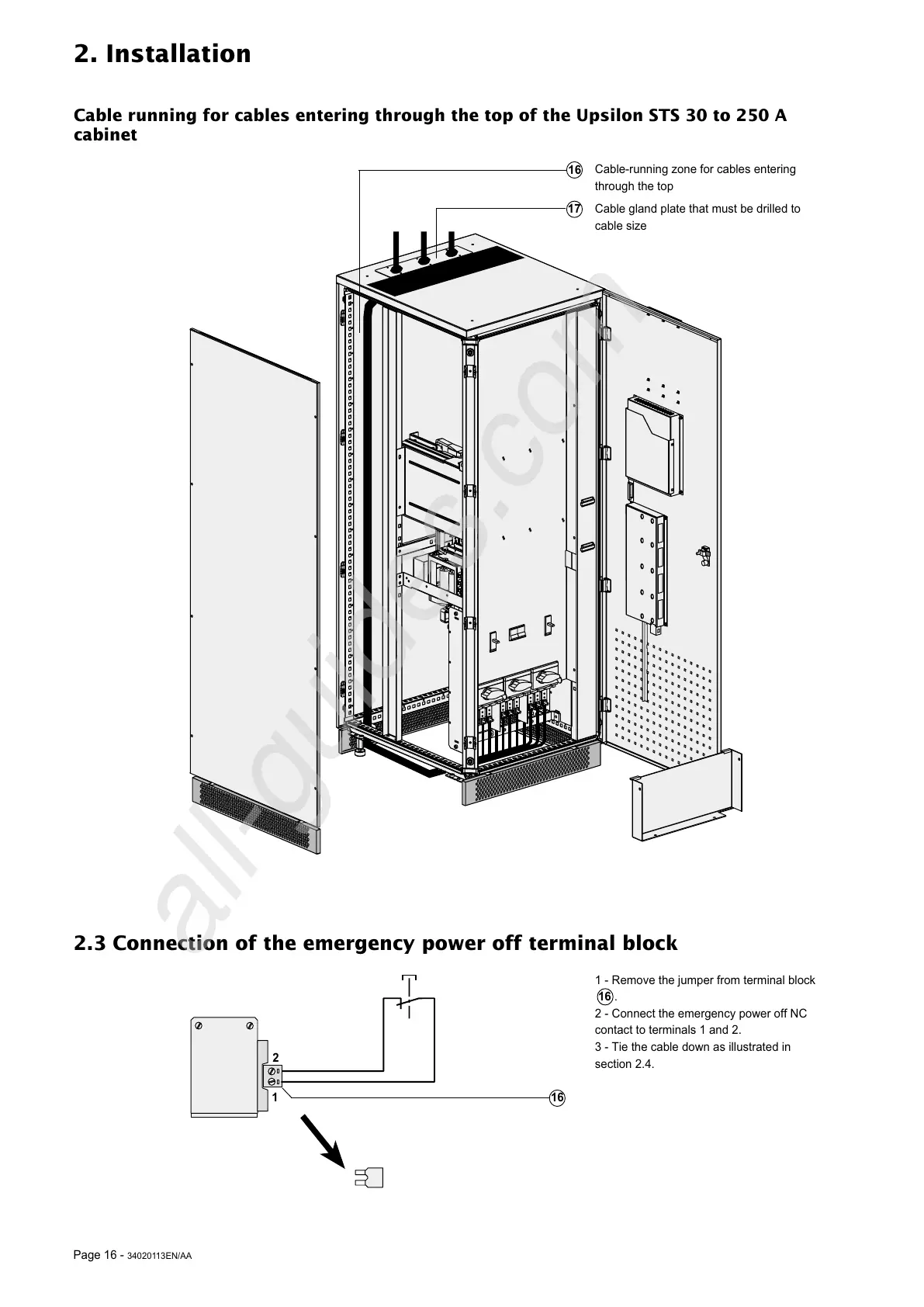

Cable running for cables entering through the top of the Upsilon STS 30 to 250 A
cabinet
16
17
Cable-running zone for cables entering
through the top
Cable gland plate that must be drilled to
cable size
2. Installation
16
1
2
2.3 Connection of the emergency power off terminal block
1 - Remove the jumper from terminal block
16 .
2 - Connect the emergency power off NC
contact to terminals 1 and 2.
3 - Tie the cable down as illustrated in
section 2.4.
