MGE UPS Systems Upsilon STS 30A - Manual Transfer to an Out-Of-Phase Alternate Source

34020113EN/AA - Page 21

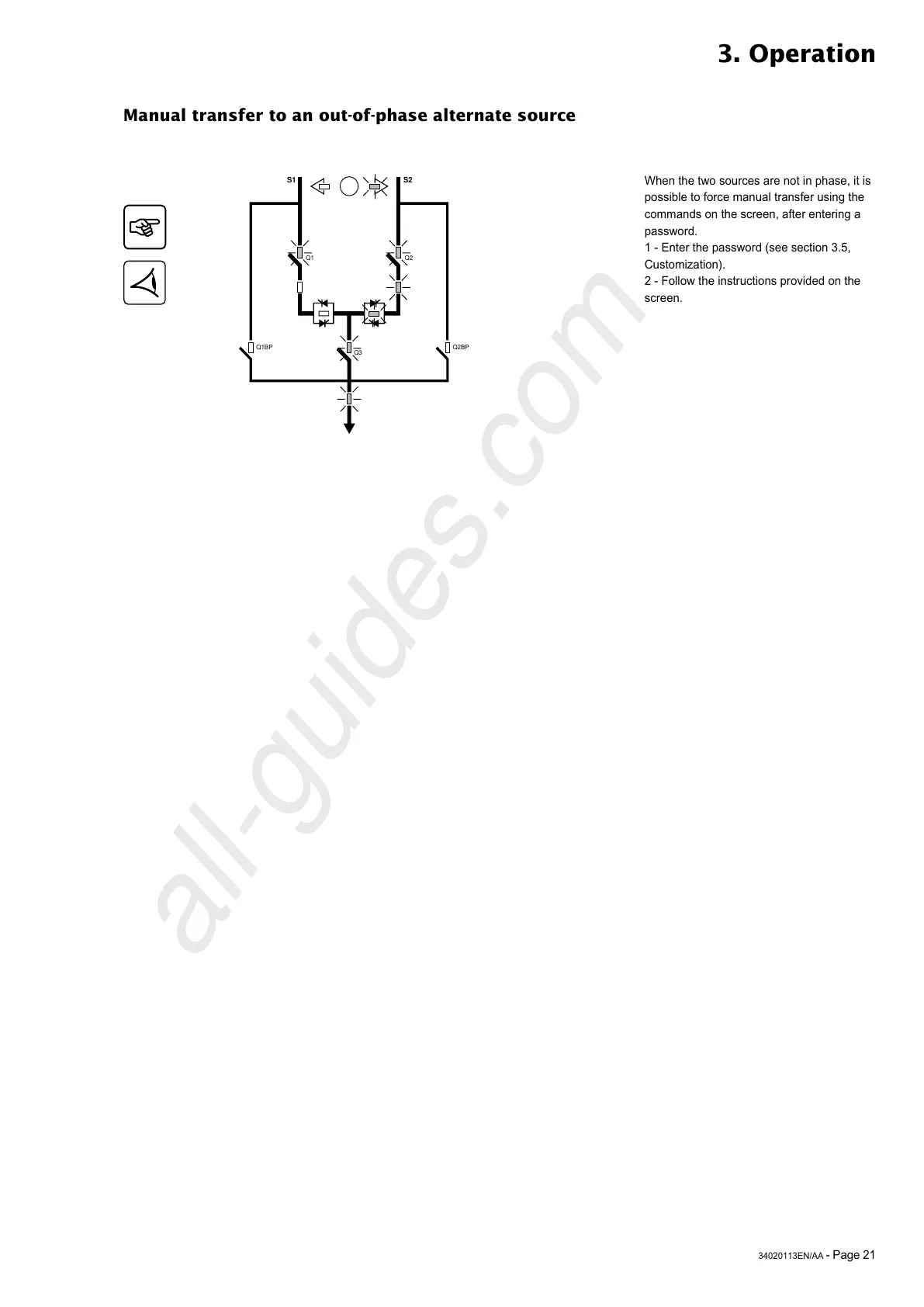

Manual transfer to an out-of-phase alternate source
3. Operation
When the two sources are not in phase, it is
possible to force manual transfer using the
commands on the screen, after entering a
password.
1 - Enter the password (see section 3.5,
Customization).
2 - Follow the instructions provided on the
screen.
Q1BP
Q1 Q2
Q2BP
Q3
S1 S2
