MICRO-EPSILON induSENSOR EDS Series - Page 14

Page 14
induSENSOR, EDS
a
a

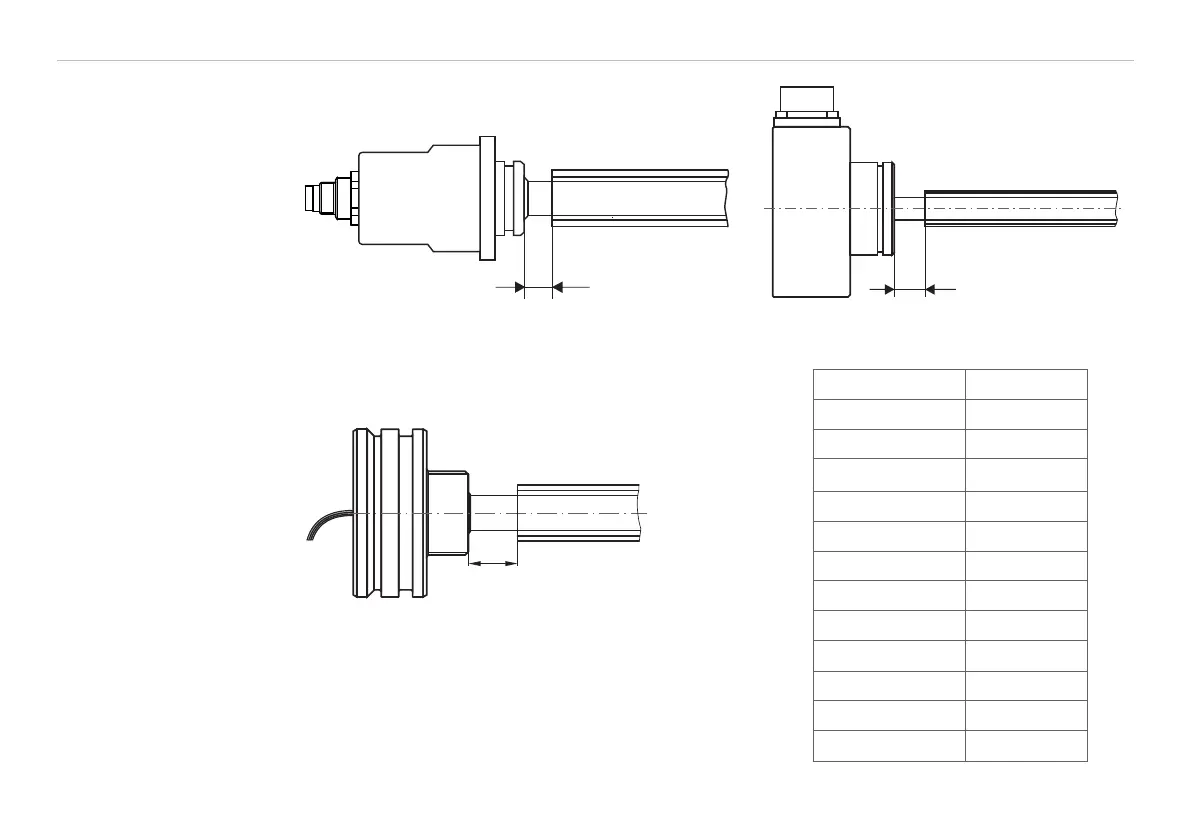

Fig. 2 Zero point of the measuring tube, EDS- ... -S Fig. 3 Zero point of the measuring tube, EDS- ... -F
a
Measuring range Dimension a
75 15 (0.59)
100 20 (0.79)
160 20 (0.79)
200 20 (0.79)
220 20 (0.79)
250 20 (0.79)
260 20 (0.79)
Fig. 4 Zero point of the measuring tube, EDS- ... -Z 300 20 (0.79)
370 25 (0.98)
Dimensions in mm, not to scale 400 25 (0.98)
500 25 (0.98)
630 25 (0.98)
