induSENSOR, EDS
4.3.3 Model EDS- ... -Z
The sensor is fixed in the cylinder with a grub screw and clamped from the back panel. Sealing is effected at
the sensor shaft by means of an O-ring.
Feed the connecting wires in able duct outwards and connect them with the mounting plug.
Grub screw
Sensor rod Alu tube PistonBack panel
O- ring
Adapter
M12x1 Mounting plug, 4-pin.
48H8
>
25
>18
15

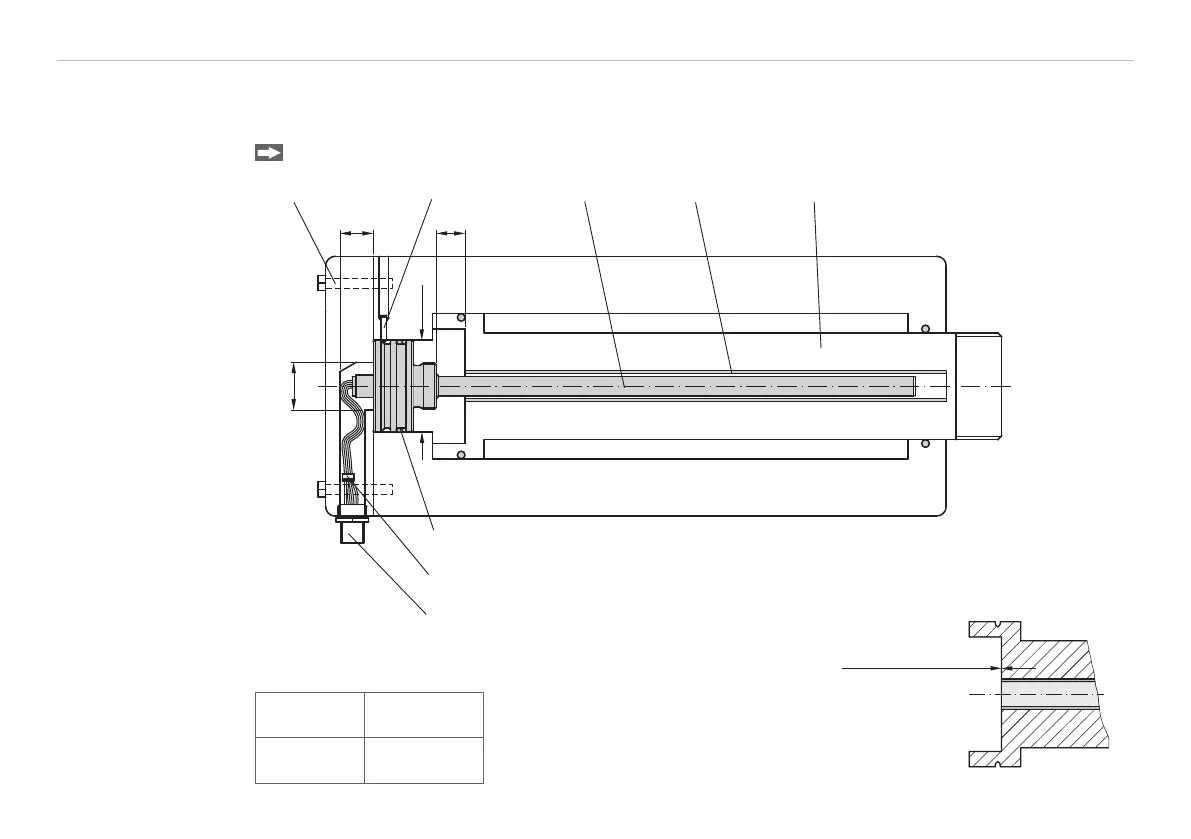

Fig. 15 Sensor mounting in a hydraulic cylinder, model EDS- ... -Z
Dimension Fit tolerance
µm
48H8
+39
0
Alu tube must be
flush with the piston
Sealing (not included in
the delivery)
O-Ring:
44.12x2.62
material: Viton
Diameter of the bore-
hole:
48H8 dia.,
borehole surface:
R
a
= 0.8
R
max
= 3.2
