MICRO-EPSILON induSENSOR EDS Series User Manual

Page 15
induSENSOR, EDS
4.3 Sensor Mounting
4.3.1 Model EDS- ... -S
Mount the sensor in the cylinder with a mounting ring (Appendix), see Fig. 12 and six cylinder head bolts
(M5x10).
Sealing is effected at the sensor shaft by means of an O-ring supplied.
Displacement
sensor
O-ring
Piston
Sensor shaft
CylinderSensor rod
21HB
Mounting ringM5x10 Alu tube

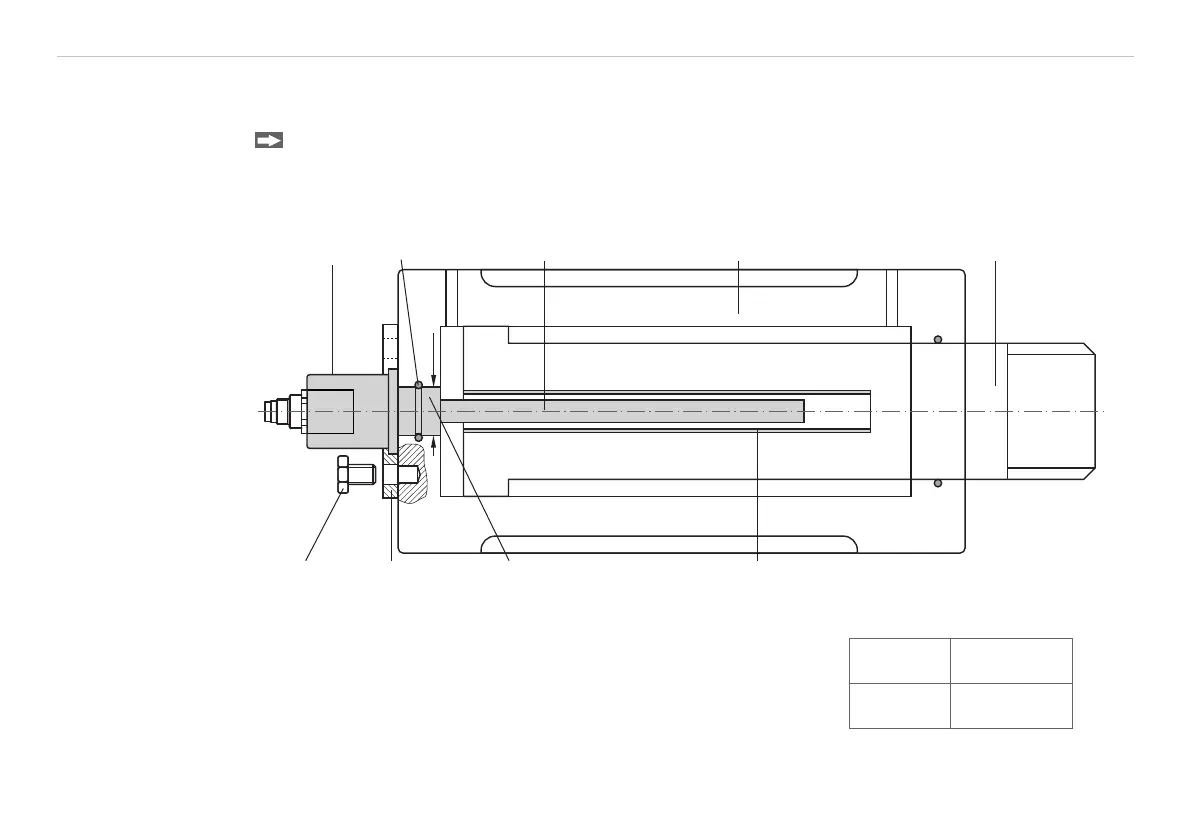

Fig. 5 Sensor mounting in a hydraulic cylinder, model EDS- ... -S
Sealing
O-Ring: 18.5x1.5
Material: Viton
Dimension Fit tolerance
µm
21H8
+33
0
Diameter of the borehole: 21H8 dia.
Borehole surface:
R
a
= 0.8
R
max
= 3.2
