Page 16

induSENSOR, EDS

Bushing for

connector

(.6)

ø34 (1.4 dia.)

ø31

(1.2 dia.)

40 (1.6)

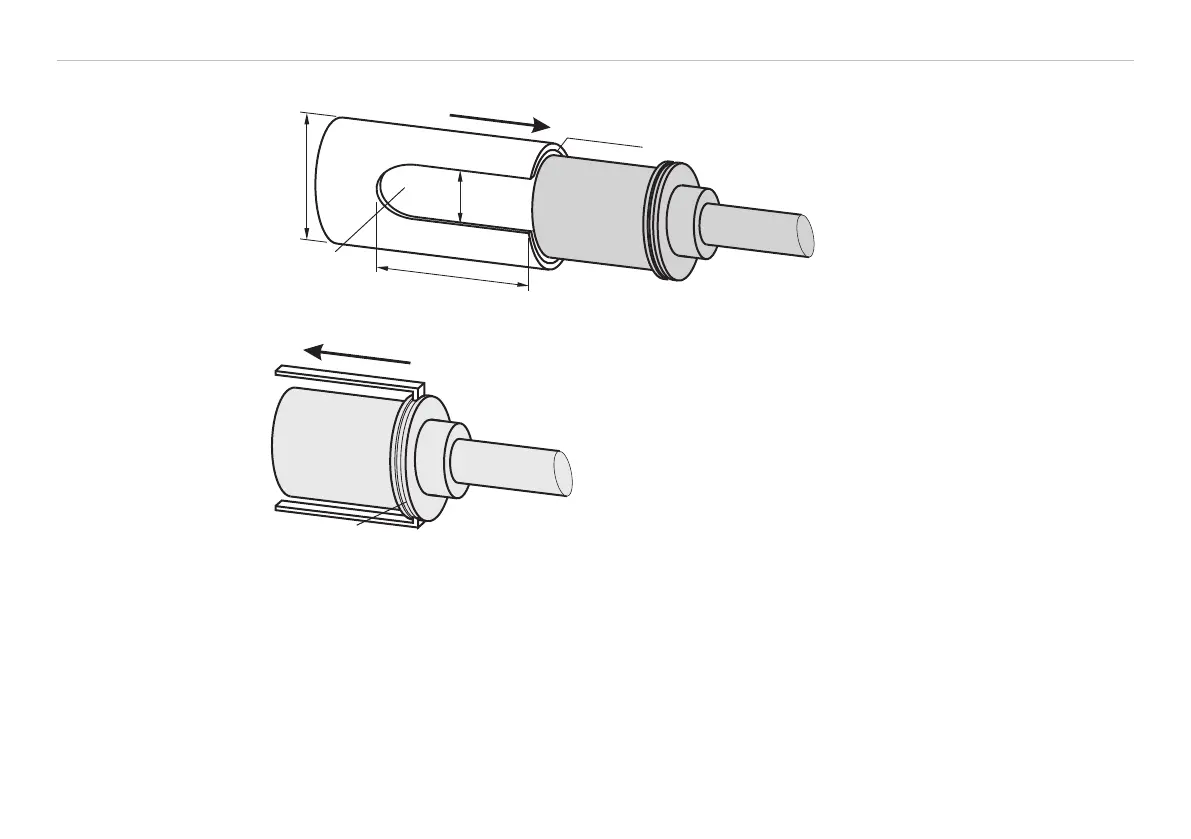

Use a connection piece for moun-

ting, see Fig. 6. The bushing must

be congruent with the connector for

models with radial connector.

Fig. 6 Mounting of an induSENSOR, model EDS- ... -S

Groove

Use an extractor for dismounting,

see Fig. 7.

Dimensions of the flange groove:

1.5 x 1.5 mm

(.06 x .06 “,depth x width).

Fig. 7 Dismounting of an induSENSOR, model EDS- ... -S

Dimensions in mm, not to scale
