MICRO-EPSILON induSENSOR EDS Series User Manual

Page 22
induSENSOR, EDS
4.3.2 Model EDS- ... -F
The sensor is mounted in the cylinder by means of cylinder head bolts (6 x M8). The sealing is effected at the
sensor shaft by means of an O-ring supplied.
Sensor rod Cylinder Piston
Sensor shaft
Alu tube
O-ring
Displacement
sensor
42F7
Cylinder head
bolt M8

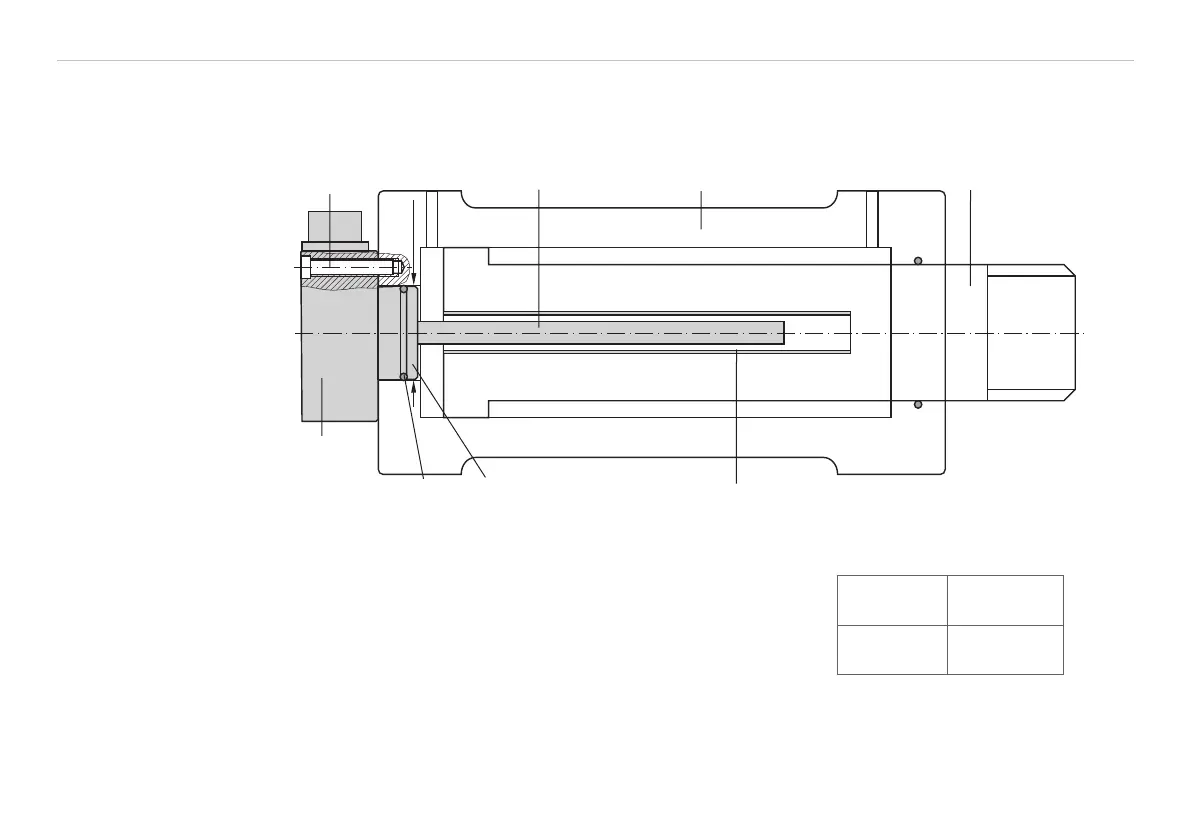

Fig. 13 Sensor mounting in a hydraulic cylinder, model EDS- ... -F
Sealing
O-Ring: 38x2.0
Material: PUR
Dimensions Fit tolerance
µm
42F7 +50
+25
Diameter of the borehole: 42F7 dia.
Borehole surface:
R
a
= 0.8
R
max
= 3.2
