MICRO-EPSILON induSENSOR EDS Series User Manual

Page 23
induSENSOR, EDS

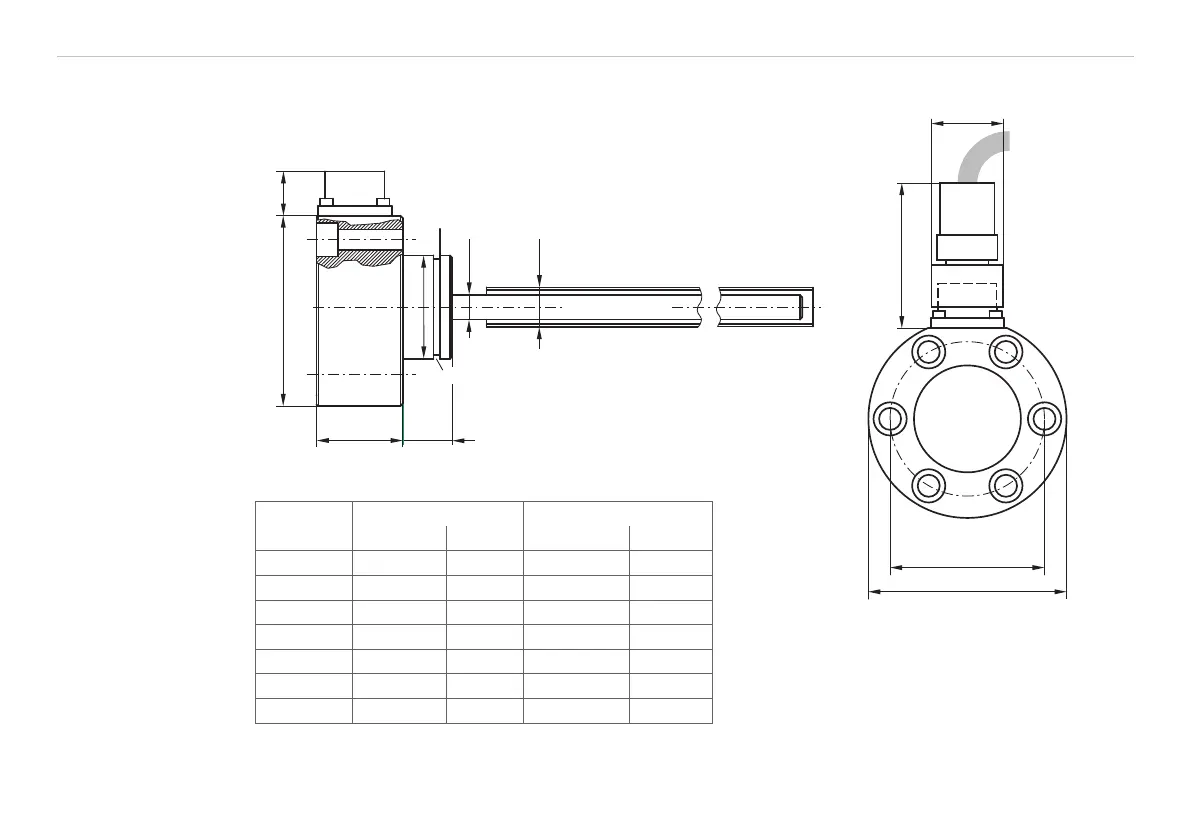

Dimensional drawing, model EDS- ... -F
35.0
(1.38)
20.0
(0.79)
Alu tube I
Sensor rod L
O-ring groove
18.0 (.71)
76.0 (2.99)
ø42.0
-0.05
(2.99
-0.002
dia
.)
d D
ø29 (1.14 dia)
59 (2.32 )
ø63.0 (2.48 dia.)
ø80.0 (3.15 dia.)
Measuring
range
Sensor rod Alu tube
L D I d
100 (3.93) 140 (5.51) 10 (0.39) 140 (5.51) 16 (0.63)
160 (6.29) 200 (7.87) 10 (0.39) 200 (7.78) 16 (0.63)
200 (7.87) 240 (9.45) 10 (0.39) 240 (9.45) 16 (0.63)
250 (9.84) 290 (11.42) 10 (0.39) 290 (11.42) 16 (0.63)
300 (11.81) 340 (13.39) 10 (0.39) 340 (13.39) 16 (0.63)
400 (15.74) 450 (17.72) 12 (0.47) 460 (18.11) 26 (1.02)
630 ( 24.80) 680 (26.77) 12 (0.47) 690 (27.17) 26 (1.02)
Fig. 14 induSENSOR with radial connector,
model EDS- ... -F, dimensions in mm (inches),
not to scale
