induSENSOR, EDS

EDS-...-Z

can be inserted as an option for adapta-

tion of the power loss to high ambient

temperatures, see Chap. 4.4.4.

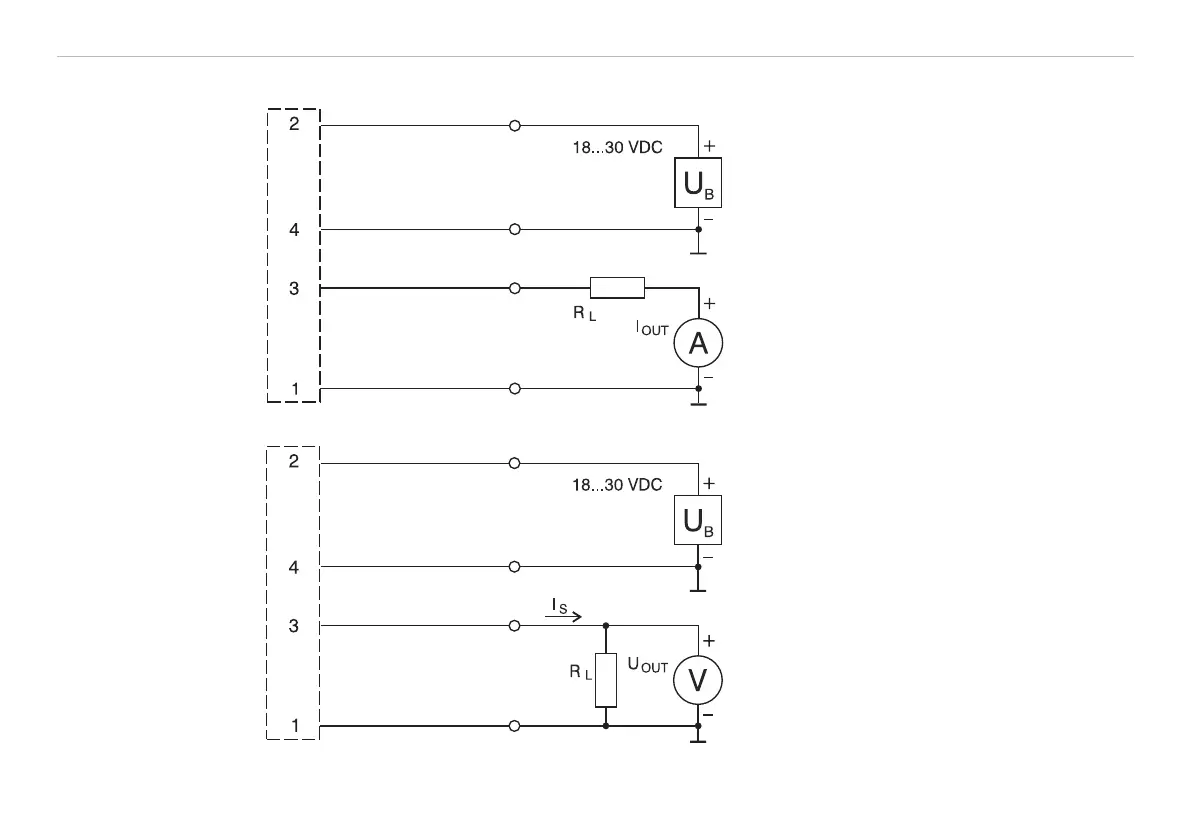

Fig. 26 Signal monitoring with amperemeter

EDS-...-Z

If the signal is monitored with a voltmeter

the load resistor R

is dimensioned in ac-

cordance with the desired output voltage

OUT

Formula:

OUT

= R

* I

Signal

Fig. 27 Signal monitoring with load resistor

and voltmeter
