Component Parts and Assembly Hardware

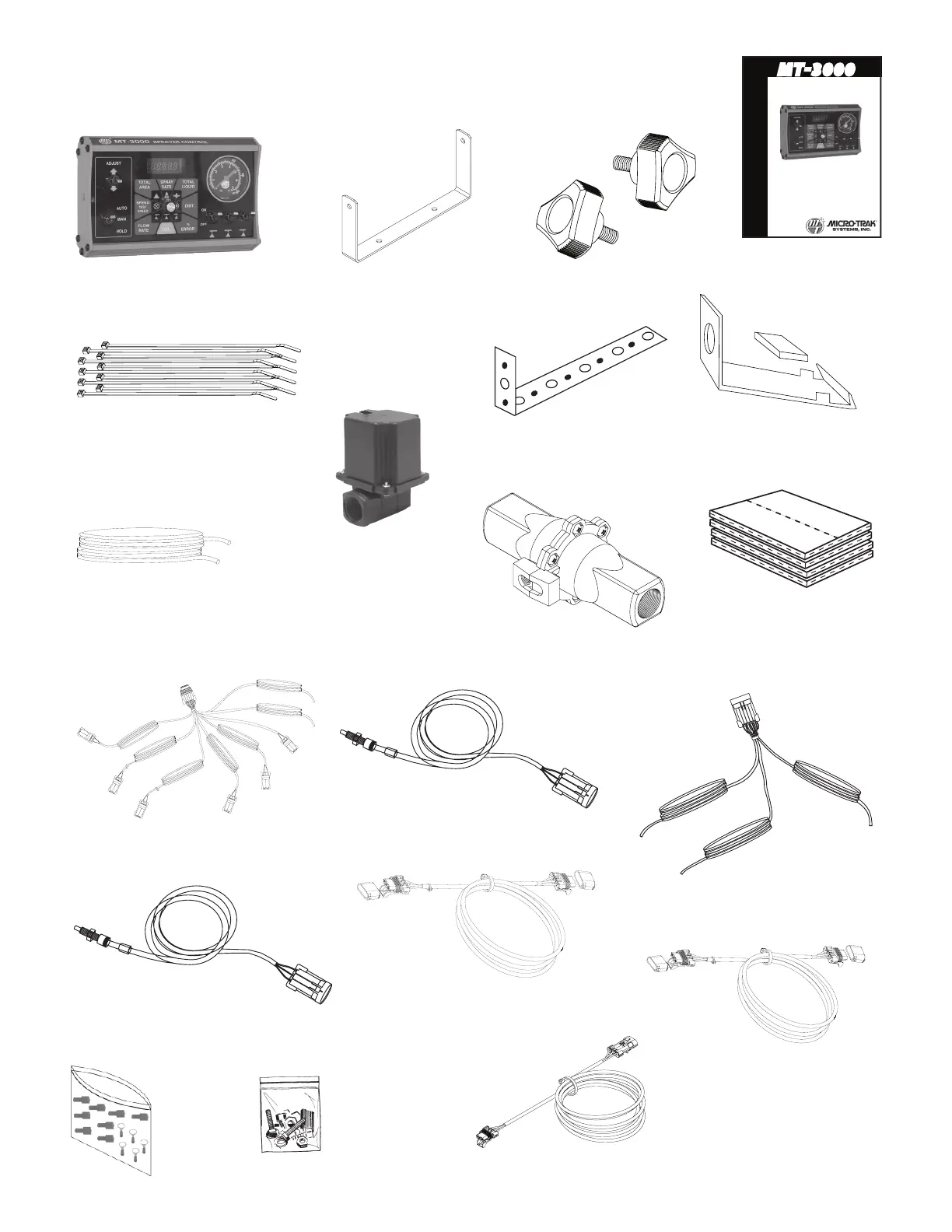

Before beginning installation, check the carton contents for the following items:
REFERENCE MANUAL
Automatic Sprayer Control System
TM
A B
4 3
E D C B A
A B
A B
A B
A B
A B
A B C
A B C D E
MT-3000 Console
P/N 10365
Console Mount Bracket
P/N 10422
Console Mount Knobs
P/N 10423
Reference Manual
P/N 12245
Cable Ties (10)
P/N 10045
MT 1” Electric
Servo Valve
P/N 14928
Magnet Clip (Optional)
P/N 10080
Speed Sensor
Mount Bracket
P/N 10013
15’ Pressure Tubing
P/N 10485
FM 750 GFN Flowmeter
P/N 11501
Magnet Kit
P/N 12069
Main Wiring Harness
P/N 10415
5’ Speed Sensor Cable
P/N 10416
A B C
5’ Flow Sensor Cable
P/N 10417
3’ Solenoid Valve Cable
P/N 10419
5’ Servo Valve Cable
P/N 11311
5’ Extension Cable (Optional)
P/N 10450
10’ Extension Cable (Optional)
P/N 10449
Terminal Bag
P/N 10477
Hardware Bag
P/N 10075
