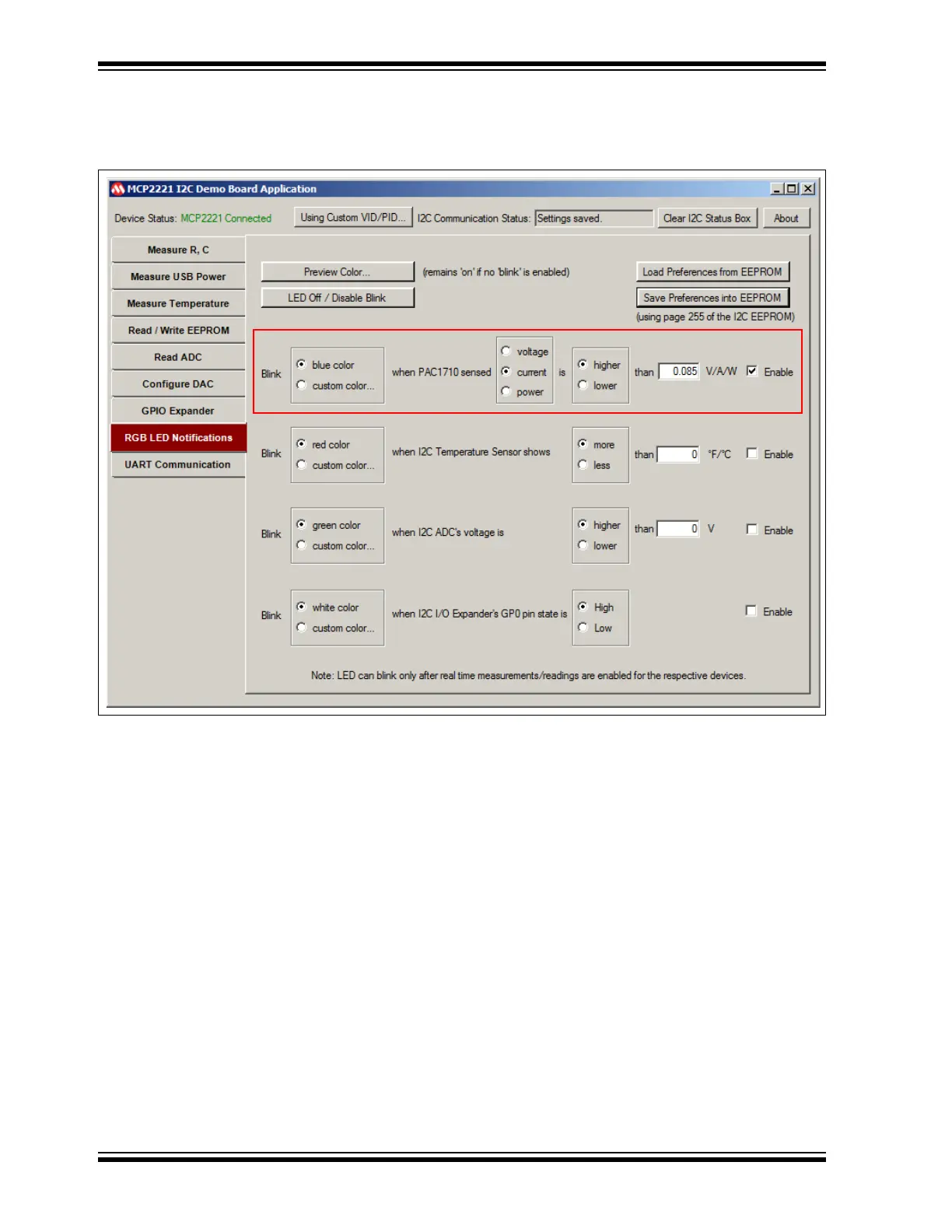

Figure 3-13 shows how the LED is configured to blink (blue color) in case the measured
USB current exceeds 85 mA.
FIGURE 3-13: CONFIGURING LED NOTIFICATIONS
