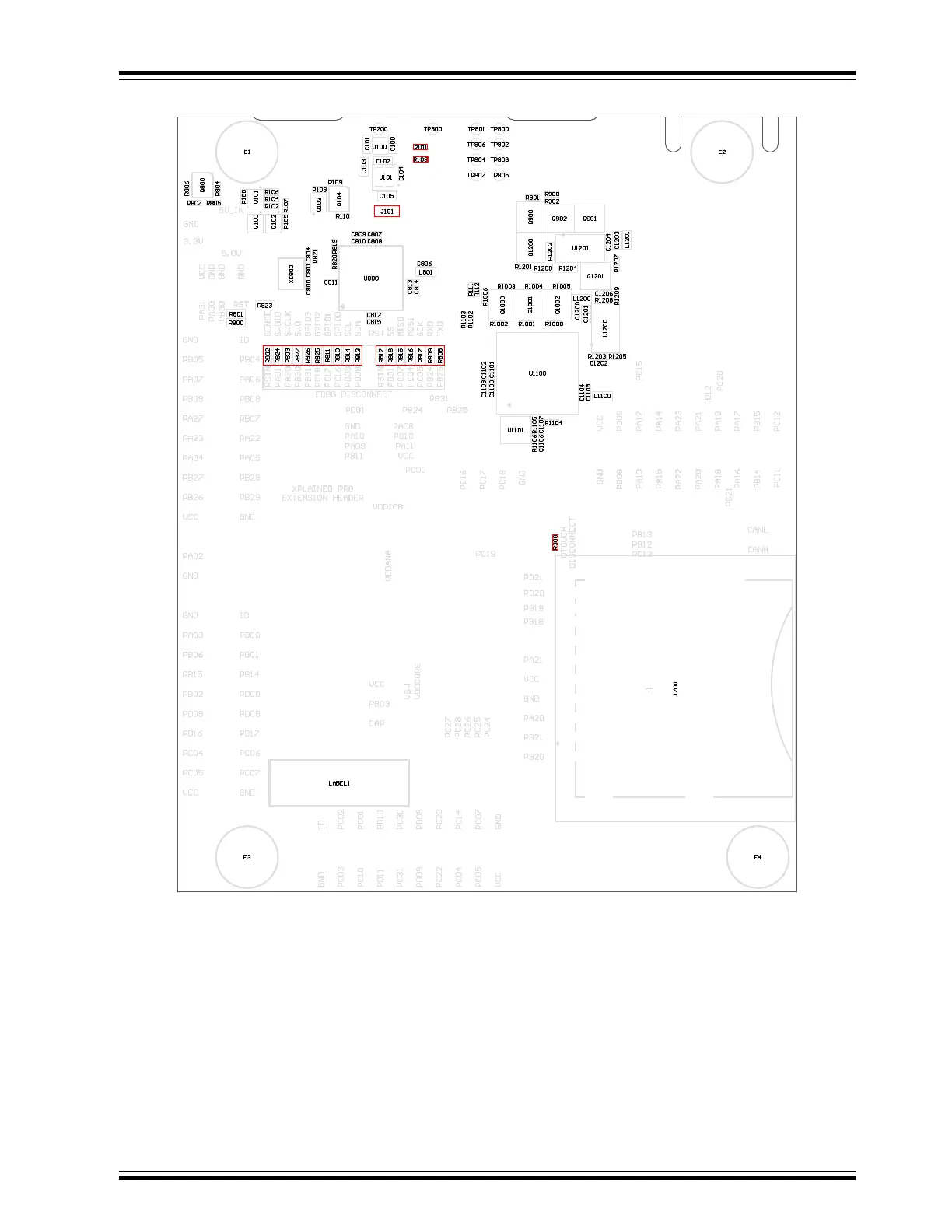

Figure 5-5. Assembly Drawing Bottom

5.5.1 Enable PCC Header

The PCC header on the SAM E54 Xplained Pro board is by default not functional due to shared

connections with Ethernet, QTouch, SD Card, EXT1, and EXT2.

To modify the kit to fully enable the PCC header, do the following:

• Remove the resistors: R621, R622, R623, R624, R625, R626, R628, R629, R630 to separate the

Ethernet PHY from the lines

• Mount 0Ω resistors: R205, R206, R207, R208

SAM E54 Xplained Pro

DS70005321A-page 36
