7.2 Connecting External Debuggers to an Xplained Pro Board
The Xplained Pro kits that features a 10-pin 50mil debug connector can use external debug tools like
SAM-ICE
™
or Atmel-ICE instead of the built-in EDBG. Evaluation kits with devices using the SWD
interface on-board has a connector that is pinout compatible with the Cortex Debug Connector.
The SAM-ICE is connected to the debug connector on an Xplained Pro using either an Atmel-ICE
adapter, SAM-ICE adapter, or a 10-pin 50-mil header to squid cable. When using a squid cable, see the
table and figures below for how to connect the SAM-ICE to the Xplained Pro board.
Table 7-1. Squid Cable Connections
Squid Cable Pin SAM-ICE Pin
1 (VCC) 1 (VTref)
2 (SWDIO/TMS) 7 (TMS)
3 (GND) 4 (GND)
4 (SWCLK/TCK) 9 (TCK)
5 (GND) 6 (GND)
6 (SWO/TDO) 13 (TDO)
(1)
7 (Not used)
8 (Not used)
9 (Not used)
10 (RESET) 15 (RESET)
Note:
1. Optional pin; used only when the device functionality supports TDO.

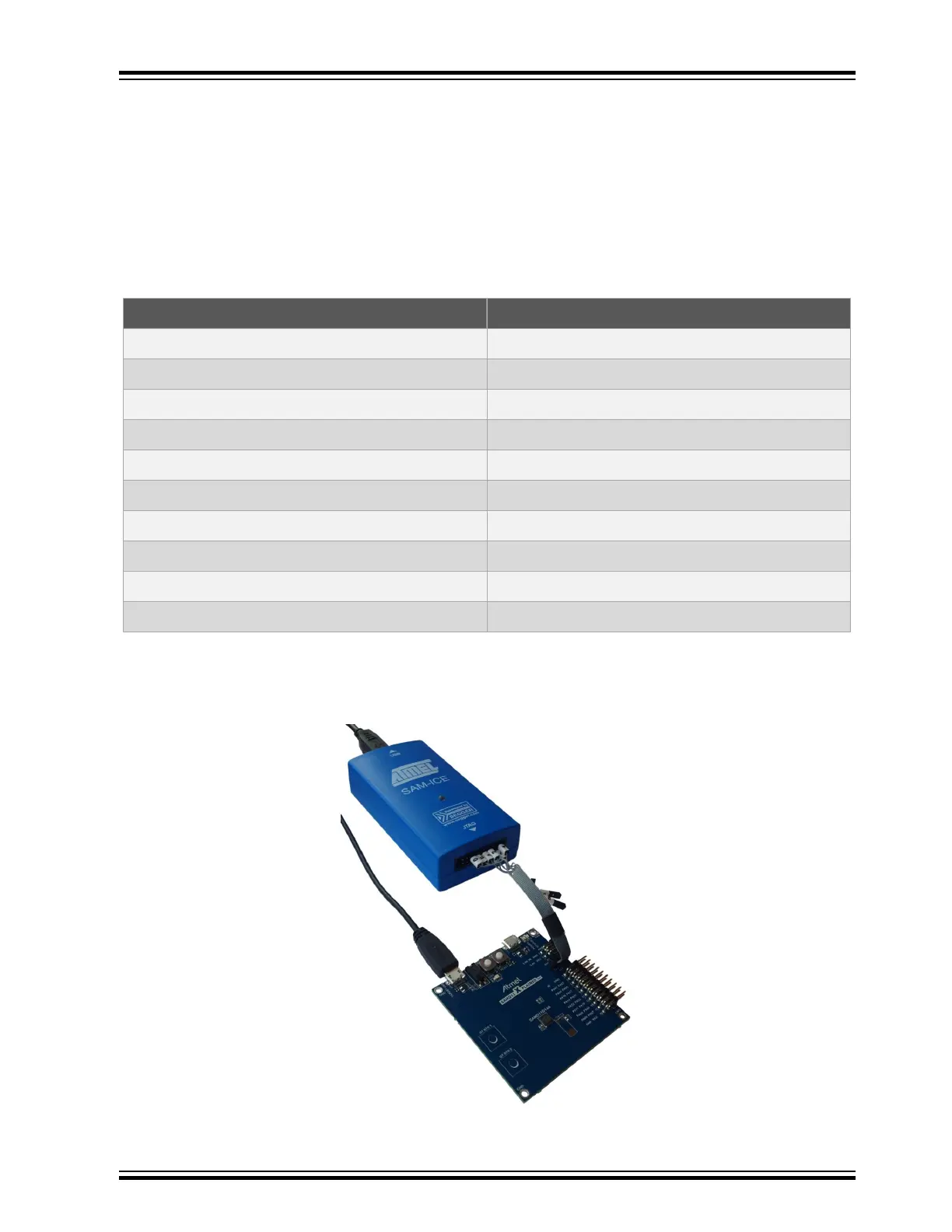

Figure 7-6. SAM-ICE using a Squid Cable
SAM E54 Xplained Pro
© 2017 Microchip Technology Inc.
DS70005321A-page 43
