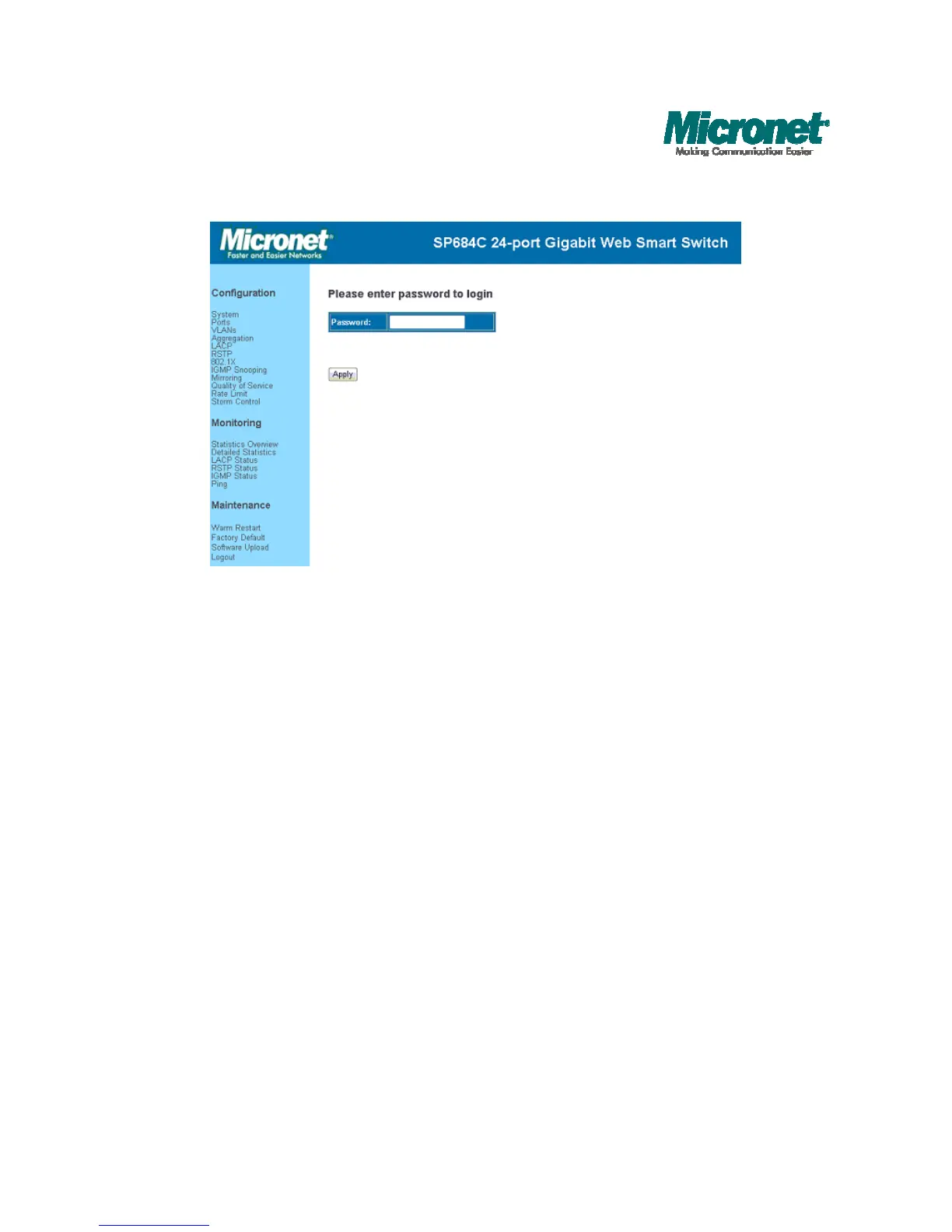

z Port:
Port Number 1~16/24
z Egress:
Select “tagged” in the drop list to enable the PVID checking and tag inserting
of one port, and select “untagged” to cancel. For example, if an Egress-tagged
port receives an untagged frame, it will be transmitted as a PVID tagged frame.
For the detail tagging status, please refer to the following table.
Untagged Tagged
Packet Frames In Packet Frames Out
Packet Frames In Packet Frames Out
Untagged Untagged Untagged Tagged (PVID)
Tagged Untagged Tagged (VID) Tagged (VID)
Pri-tagged
Untagged Pri-tagged Tagged (PVID)
z PVID
Port VLAN ID(1~4094)
z Frame
Tagged: block all un-tagged packets from accessing this port.
ALL: All packets are allowed to access this port.
15
