PVID
When the VLAN-enabled s
witch receives a tagged p
acket, the packet will be sent to
the port’s default VLAN according to the PV
ID (port VLAN ID) of the receiving port.
Click “
Port Config

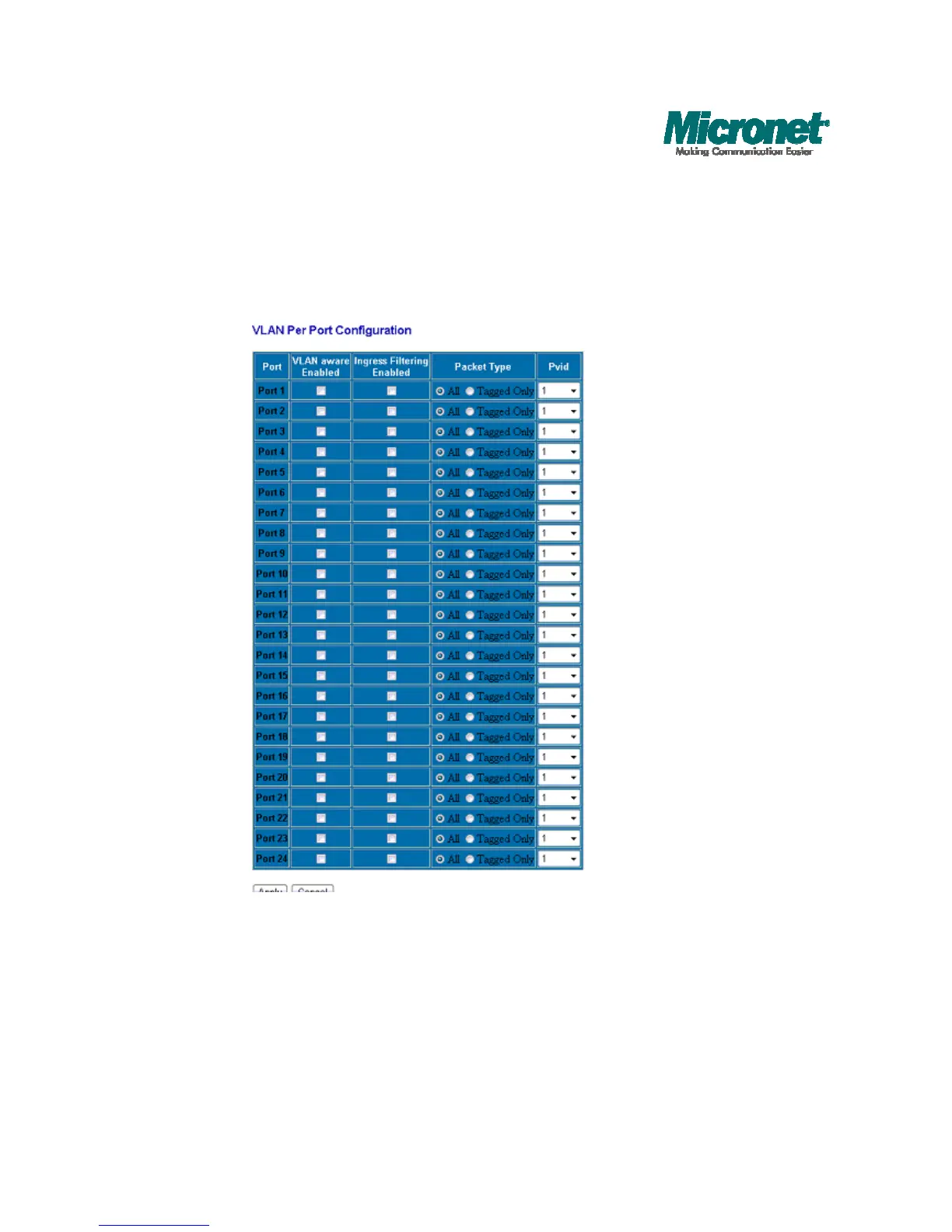

”, the page of VLAN Per Po
rt Configuration pops up.
