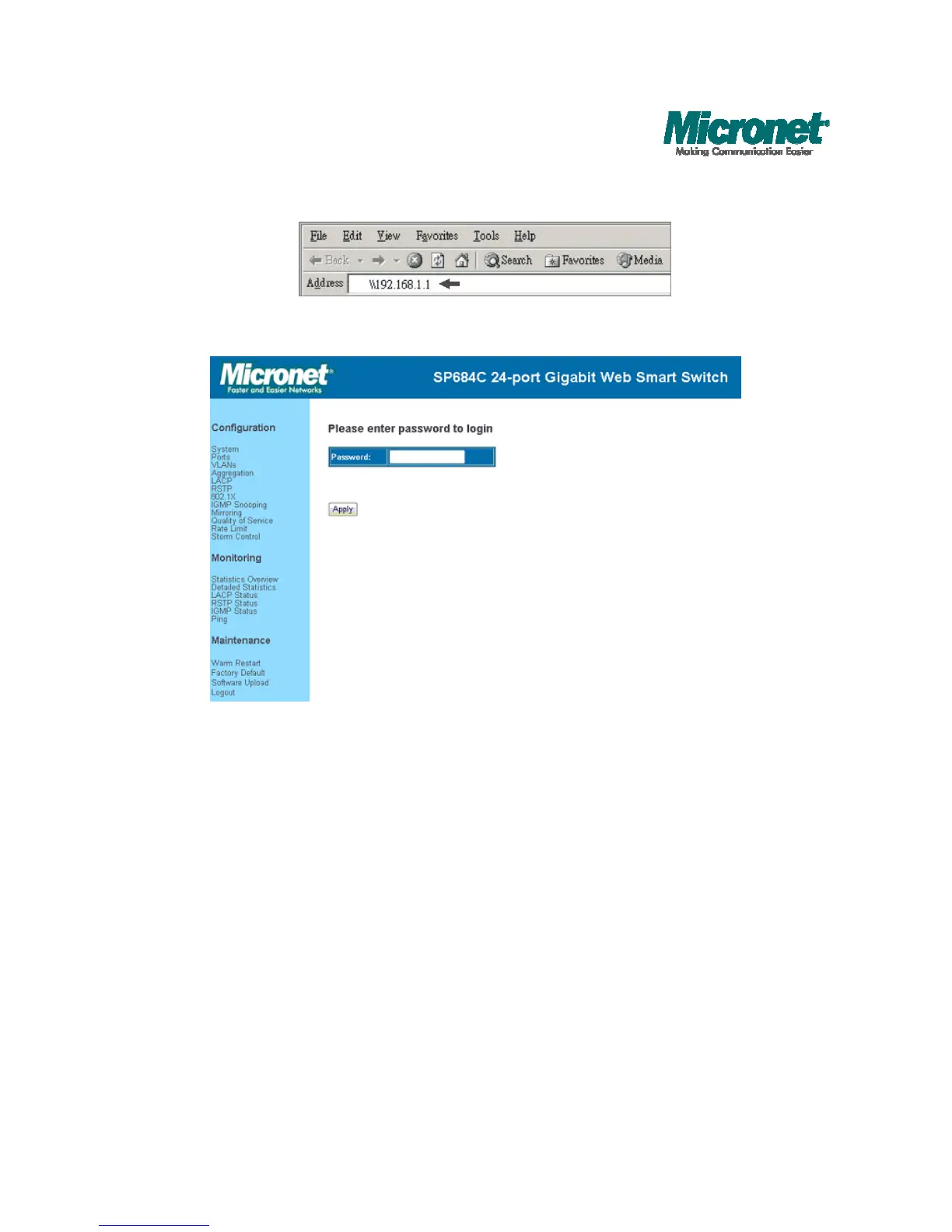

3.3.3 VLAN Mode Configuration
VLAN divides the network members into groups to reduce packets collisions and
improve the network efficiency. The switch supports 802.1Q tag-based VLAN.
Please follow the instructions to configure.
To add new VLAN groups,
* Fill in a VLAN id from 2 to 4094 in the “VLAN\Port” column.
* Select the ports for each VLAN groups.
* Click the “Apply” button to execute.
To delete a VLAN group
* Clear the members of this VLAN group by clicking those marked checkboxes.
* Clear the VLAN id of the VLAN you want to remove in the “VLAN\Port”
column. (Don’t type N/A. Just leave it blank)
* Click the “Apply” button to execute.
Parameter description:
14
z PVID setting
When the VLAN-enabled switch receives a tagged packet, the packet will be
sent to the port’s default VLAN according to the PVID (port VLAN ID) of the
receiving port.
