THREE CHANNEL RECORDING (7 ELECTRODES)
ELECTRODES
Channel: + pole Common – pole
A 1: white 2: red
B 3: black 4: brown
C 5: blue 6: orange
Ground 7: green 7: green
Cable length: 152 cm

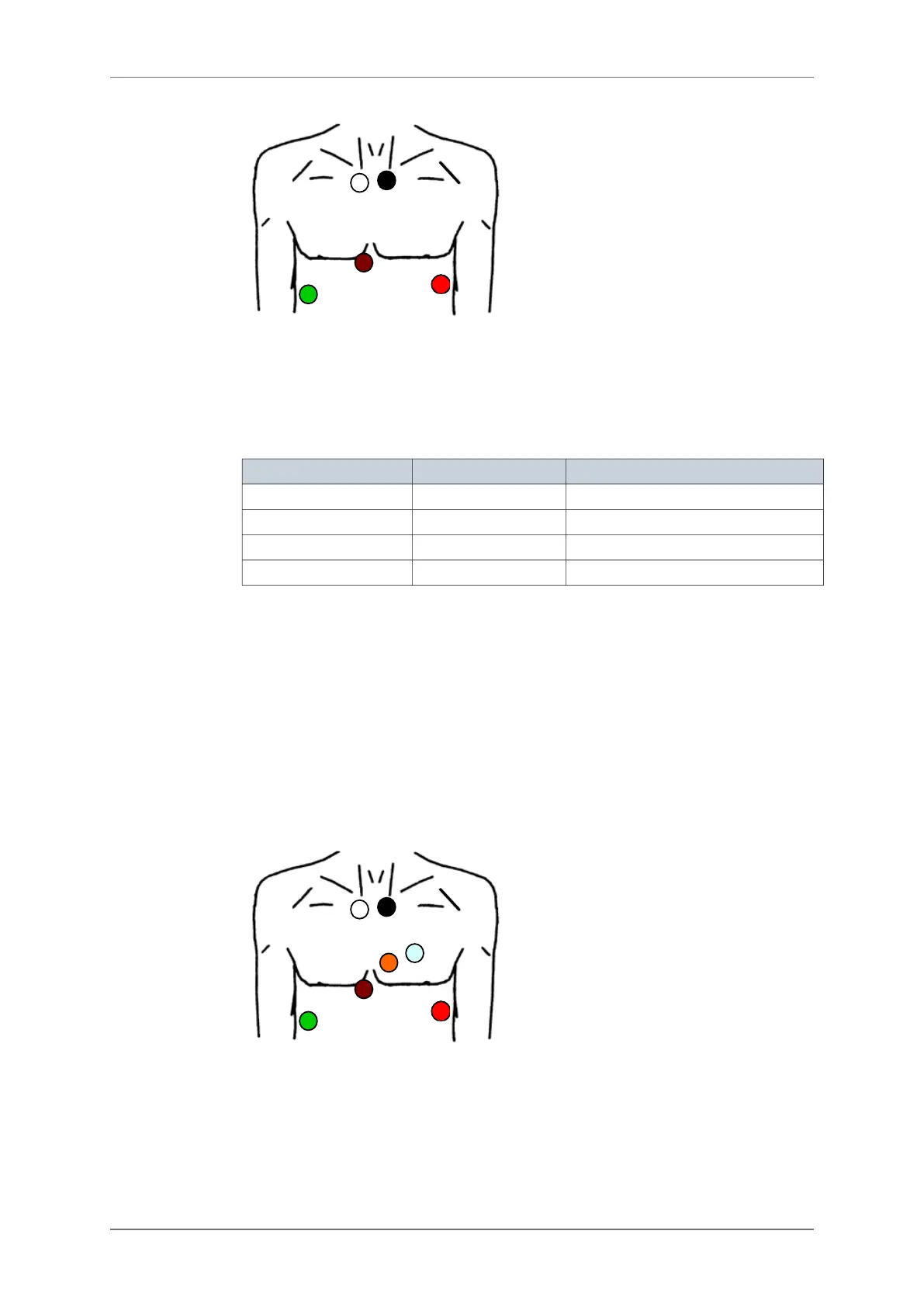

ELECTRODE PLACEMENT
Generally, it is recommended that a completely different lead be used in addition to the two
leads used for a two-channel recording. CBV2 is an anteroposterior lead close to the Z axis
that allows thorough study of changes in the ST segment related to the left coronary artery,
as well as the LAD artery and circumflex artery.
The blue electrode lies posteriorly and paravertebrally facing V2. The orange electrode is
placed in V2.
The ground electrode is placed on a rib on the right side of the chest.
1
4
2
3
7
6
5
8.3.
8.3.1.
8.3.2.
8. POSITIONING THE ELECTRODES
SpiderView – UA10709B 17
