Appendix B Cable Specifications
B-6 MicroHAWK MV-20 / MV-30 / MV-40 Smart Camera Guide

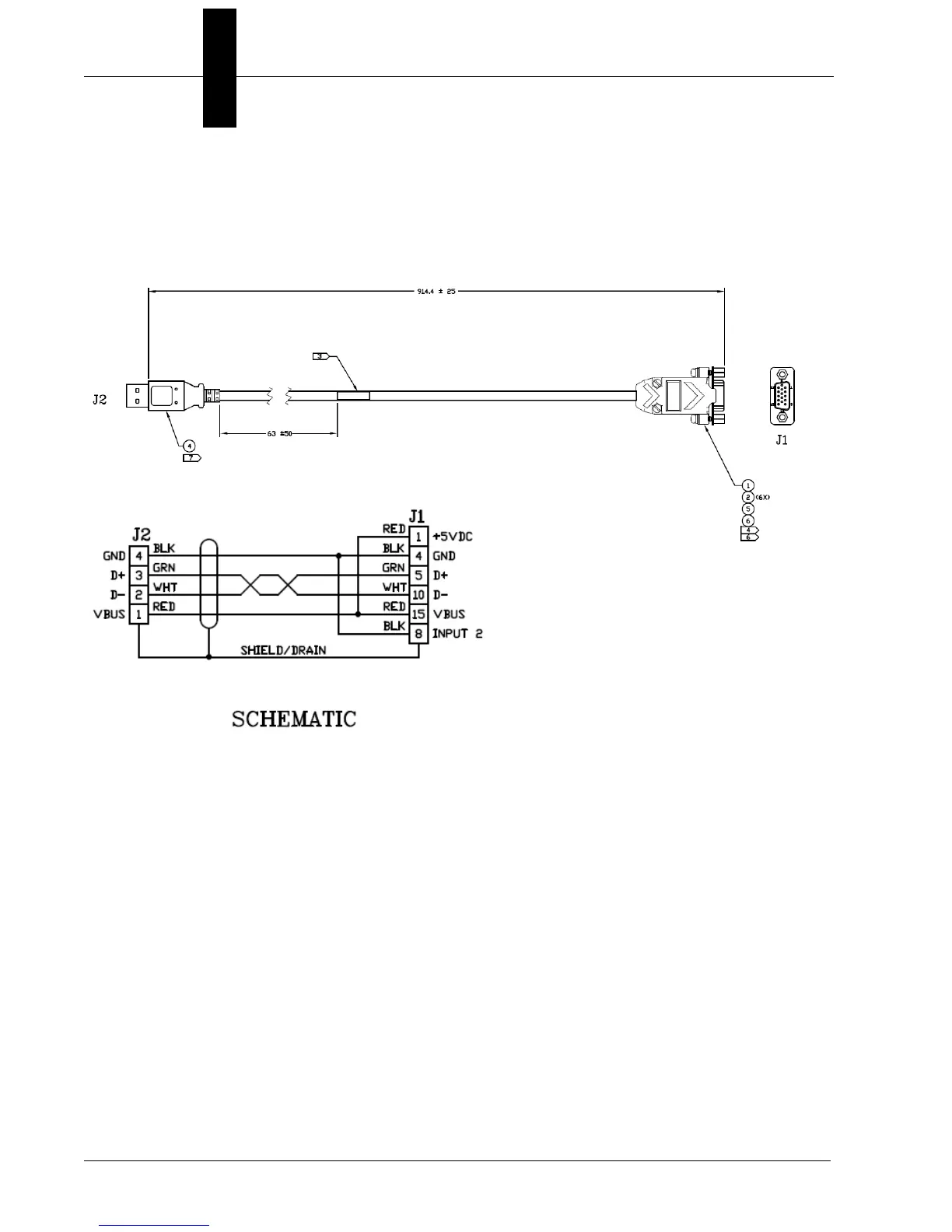

61-9000043-01 DB15 to BUS Power USB Cable
The 61-9000043-01 DB15 to bus power USB cable is a double-ended cable; one end is
a 15-pin D-Sub socket (J1) and the other end is a USB plug (J2). This cable is used for
basic communications applications that require more light or for higher speed applications.
