Chapter 3 Camera Calibration
3-14 Visionscape FrontRunner™ User’s Manual v4.1.3, April 2012

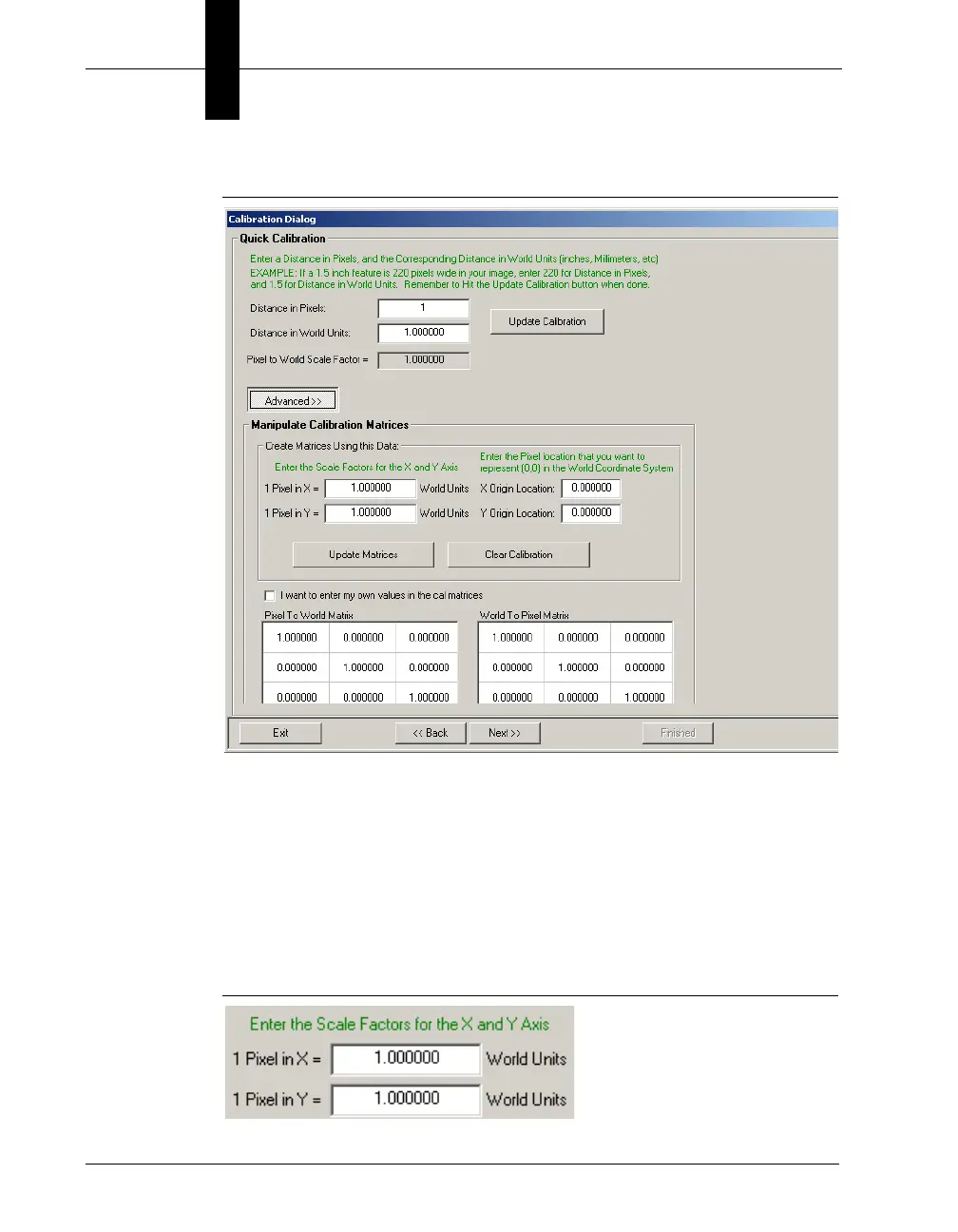

FIGURE 3–10. Quick Calibration Advanced Options
This screen gives you more control over the creation of the Forward
and Backward Transform Matrices that are used for calibration by
Visionscape
®
. You can even manually modify the matrices directly,
BUT YOU SHOULD NOT MODIFY THEM UNLESS YOU FULLY
UNDERSTAND HOW THEY ARE USED.
In general, you will expose the Advanced Options in order to make
use of the “Create Matrices Using this Data” section.
FIGURE 3–11. Enter the Scale Factors Dialog Box
