Illuminating the Part
Creating a Good
A
v4.1.3, April 2012 Visionscape FrontRunner™ User’s Manual A-9

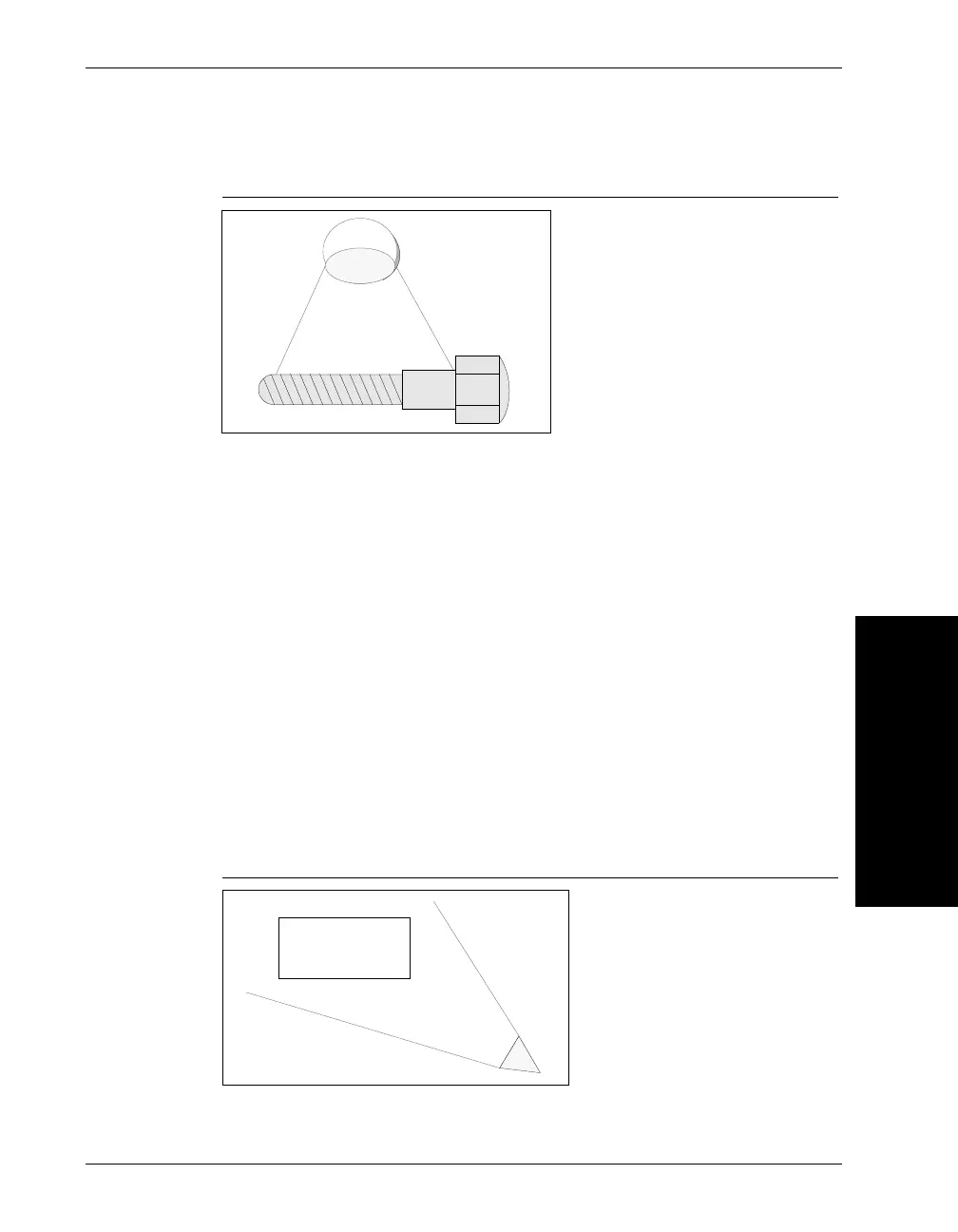

FIGURE A–5. Point Source Light
Good point-source lights include:
• Incandescent spot lights
• Fiber-optic sources
• Unfrosted incandescent light bulbs
• Strobe lights
Placement of Light Sources
There are three basic light source positions: front, side, and back.
Front Lighting
Front lighting is good for the inspection of flat, two-dimensional surface
features, such as a label, as shown in Figure A–6.
FIGURE A–6. Front Lighting
Exp.
1
F
EB
9
5
6
5
5
9
0
A
F
2
1
Lot.
02-7250-8/R12
Store below 77
0
F(25
0
C.)
