MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual
118
Function name:
802.1X Mode Setting
Function description:
Set the operation mode of 802.1X for each port. In this device, it supports only Multi-host
operation mode.
Parameter description:
Port Number:
Indicate which port is selected to configure the 802.1X operation mode.
802.1X Mode:
802.1X operation mode. There are two options, including Disable and Multi-host
mode. Default is Disable.
Disable
It will have the chosen port acting as a plain port, that is no 802.1X port access
control works on the port.
802.1X with Multi-host
In Multi-host mode, for the devices connected to this port, once a supplicant is
authorized, the devices connected to this port can access the network resource
through this port.

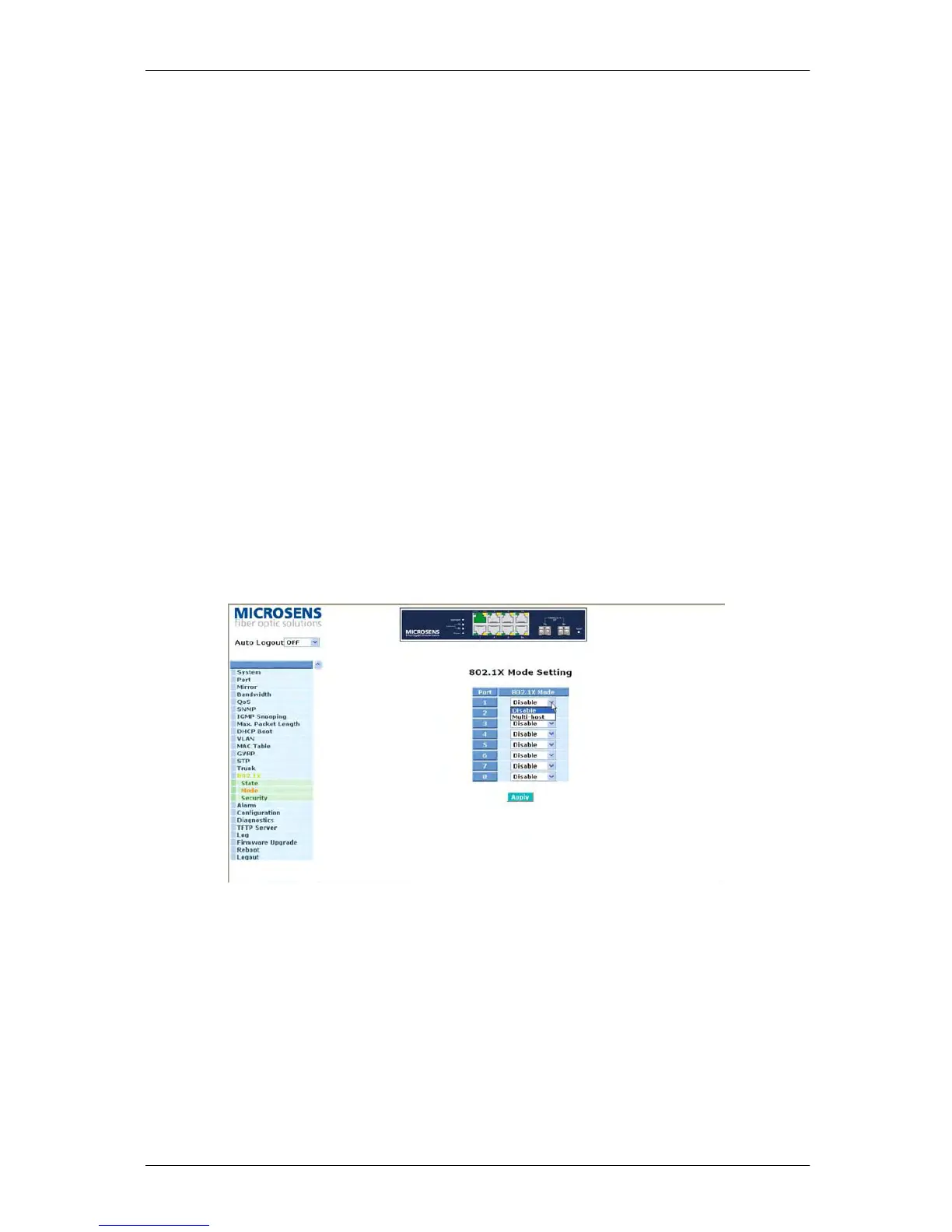

Fig. 3-56
