MICROSENS 8 Port Gigabit Ethernet Switch User’s Manual
61
Function name:
Per Port Priority
Function description:
We can assign QoS Priority, including High and Low for each port. For example, if we
transmit IP packets from Port 2 and Port 3 at the speed of 1Gbps to Port 1, and set the Class
of Port 2 as High and Port 3 as Low, then the packets of Port 3 will be dropped when the
congestion happens because Port 2 owns higher precedence of transmitting packets.
Parameter description:
Port No:
User can choose the port (1~8) respectively with Priority Class on Per Port Priority
function.
Class:
User can set up High Priority or Low Priority for each port respectively.

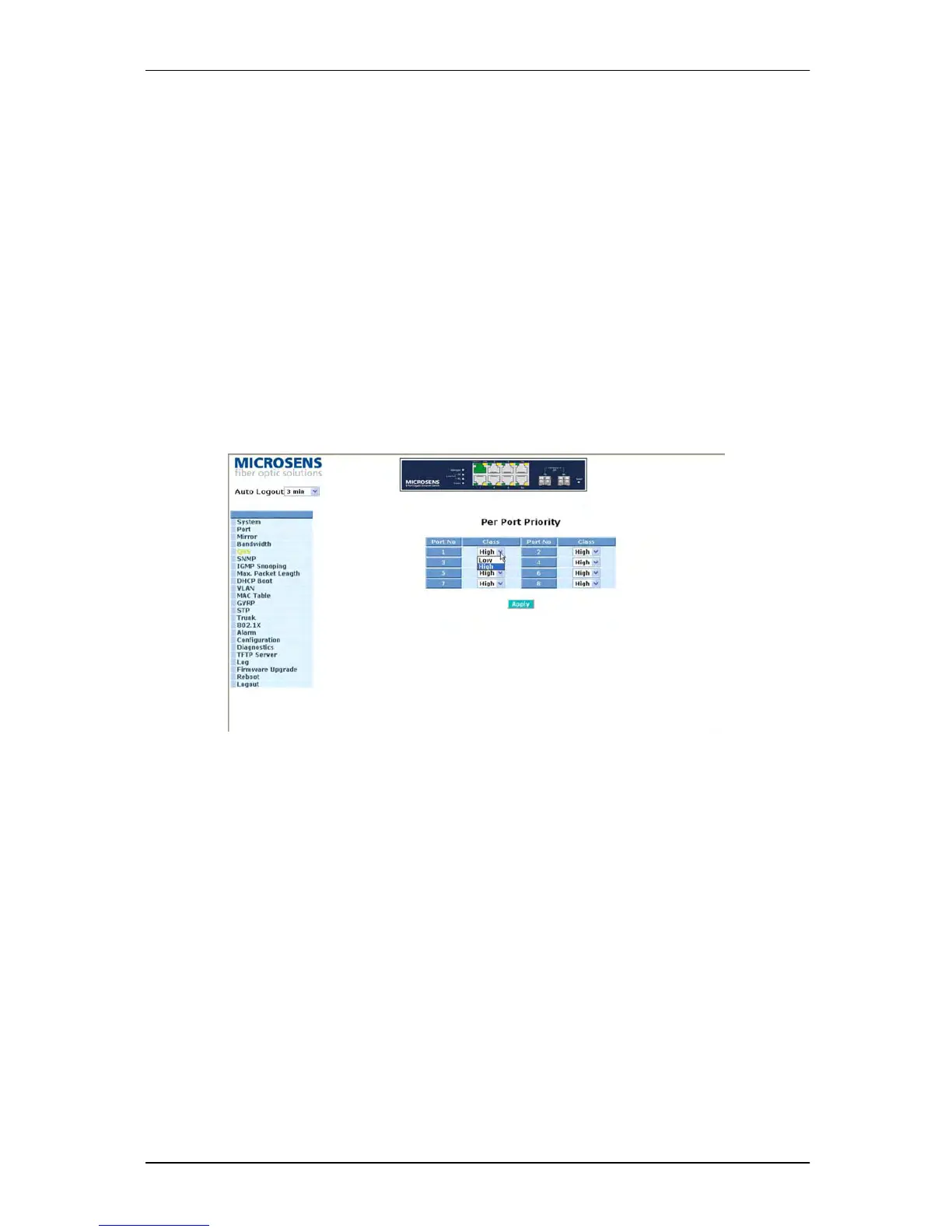

Fig. 3-18
