CT-8750 User’s Guide
P 48

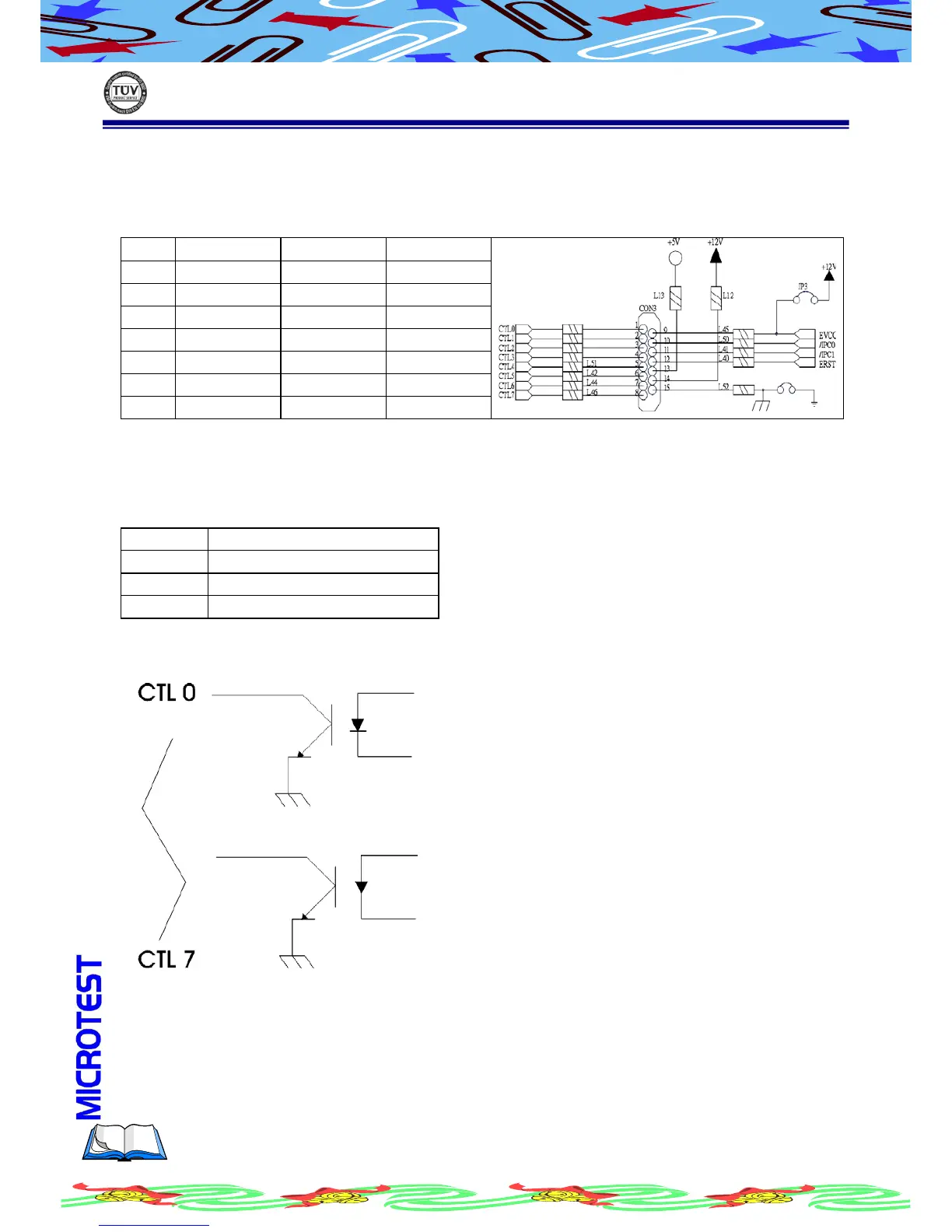

3. CT-8750 REMOTE
15-PIN Connector
1
CTL0
9
IPC∅
2
CTL1
10
GND
3
CTL2
11
4
CTL3
12
RESET
5
CTL4
13
+5D
6
CTL5
14
+12D
7
CTL6
15
GND
8
CTL7
IPC∅+GND define as [TEST ] input (short these two pins )
On testing status, the CTL 0, CTL 2, CTL 3, are the output signal which are defined as bellow:
CTL0
Testing…
CTL1
HV output
CTL2
“PASS” status
CTL3
”FAIL” status
CTL0 ~ CTL7 Inside circuit diagram listed as following
