Midcontinent MD302 Series User Manual

Mid-Continent Instruments and Avionics, Wichita, KS
REV. B, October 31, 2012 17 Manual Number 9017782

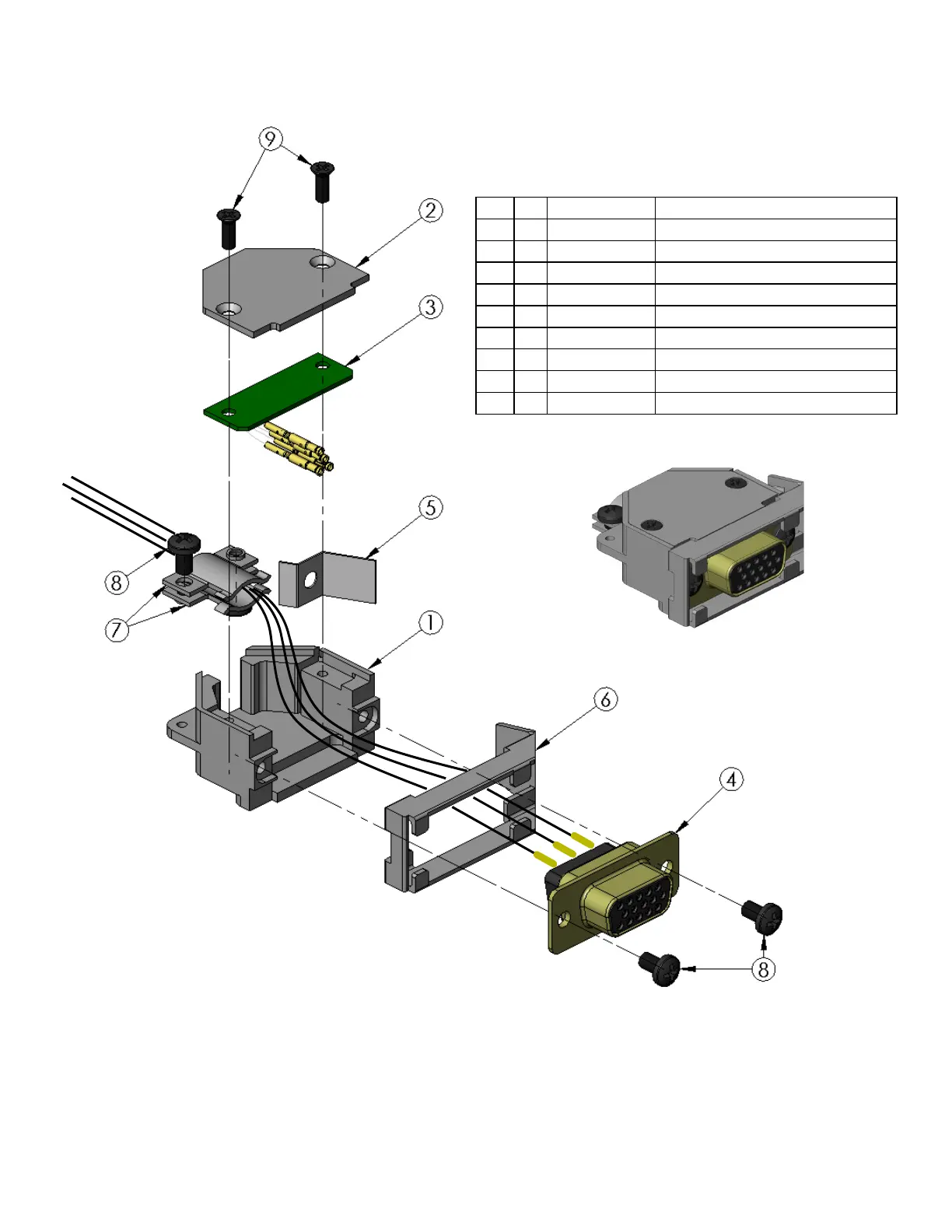

FIGURE 2.3
CONFIGURATION MODULE ASSEMBLY
Item Qty Part Number Description
1 1 9017218 Backshell, Size 9
2 1 9017274 Cover, Backshell
3 1 9017184-1 PCB Assy, Config Module
4 1 9016479 Kit, DSub, 15pin HD
5 1 part of 9016479 DSub Backshell Spring Clip
6 1 part of 9016479 DSub Slide Lock, Size 9
7 2 part of 9016479 DSub Backshell Cable Clamp
8 4 90-406-00011 Screw 4-40X3/16 Pan Phil Blk Patch
9 2 90-208-10011 Screw 2-56X1/4 Flat Phil Blk Patch
