Midea Aqua Tempo Super Series

MCAC-ATSM-201606 Aqua Tempo Super Series air cooled scroll chiller unit (50Hz)
98

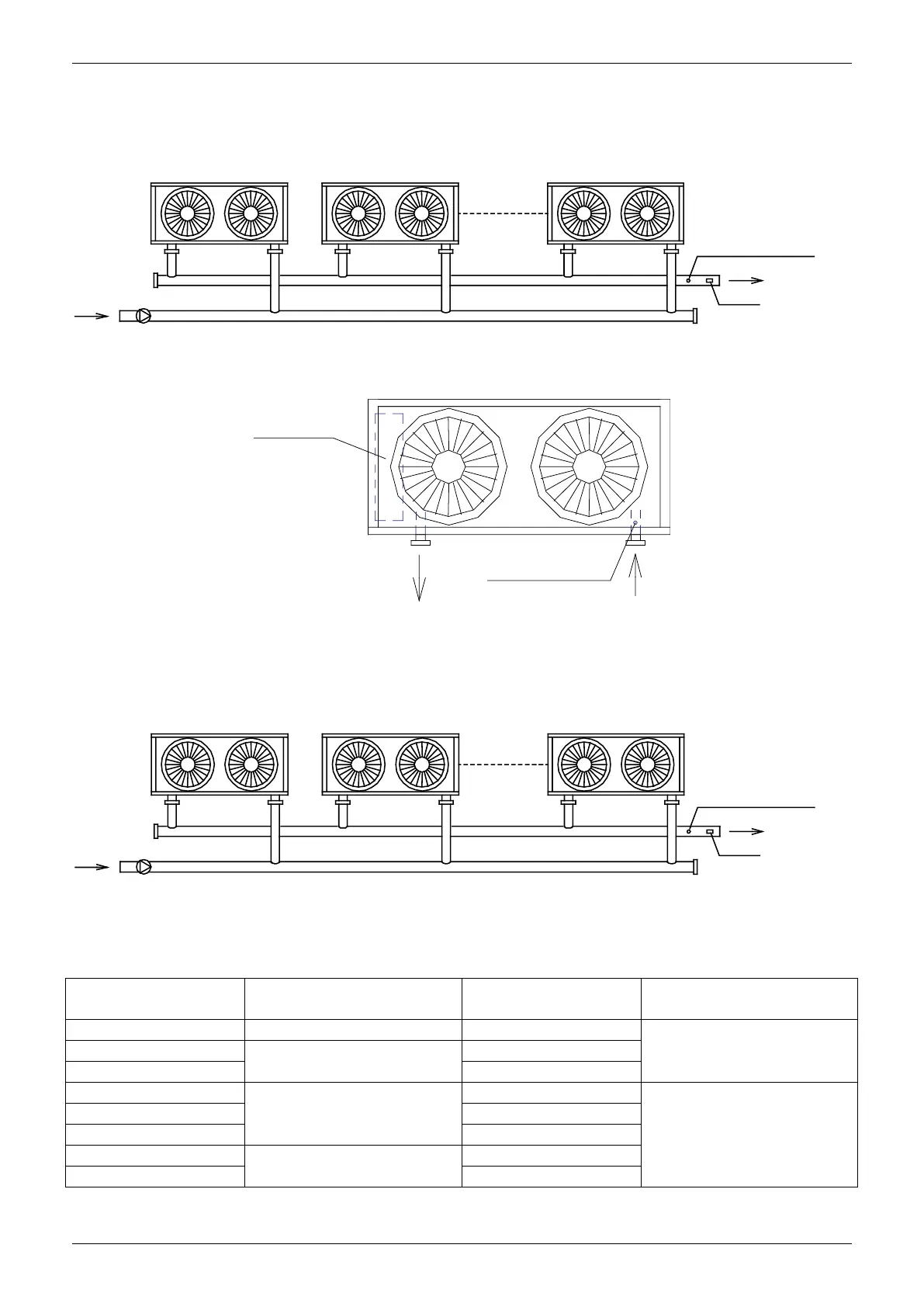

Installation of multi-module water system pipeline
n : the module quantity, max 16
No.n module
No.(n-1) address
No.1 moduleNo.(n-1) module
No.(n-2) address No.0 address
Pump
Water flow switch
Drill dead hole at the
position, and move the
total effluent temperature
sensor at No.0 address to
the position
13.2.9 Installation of water system pipeline for 130kW module
Installation of single-module water system pipeline
Total water outlet
temperature sensor
Water outlet
Water inlet
Electric control box
Installation of multi-module water system pipeline
n : the module quantity, max 16
No.n module
No.(n-1) address
No.1 moduleNo.(n-1) module
No.(n-2) address No.0 address
Pump
Water flow switch
Drill dead hole at the
position, and move the
total effluent temperature
sensor at No.0 address to
the position
Installation mode A: less than 16 modules
13.2.10 Diameter parameters of main inlet and outlet pipes
Table of diameter parameters of main inlet and outlet pipes for 25kW module
Unit model x quantity
Total inlet and outlet water
pipe diameter
Unit model x quantity
Total inlet and outlet water
pipe diameter
25×1
DN40
25×9
DN100
25×2
DN65
25×10
25×3
25×11
25×4
DN80
25×12
DN125
25×5
25×13
25×6
25×14
25×7
DN100
25×15
25×8
25×16
