Midea Aqua Tempo Super Series

Aqua Tempo Super Series air cooled scroll chiller unit (50Hz) MCAC-ATSM-201606
23

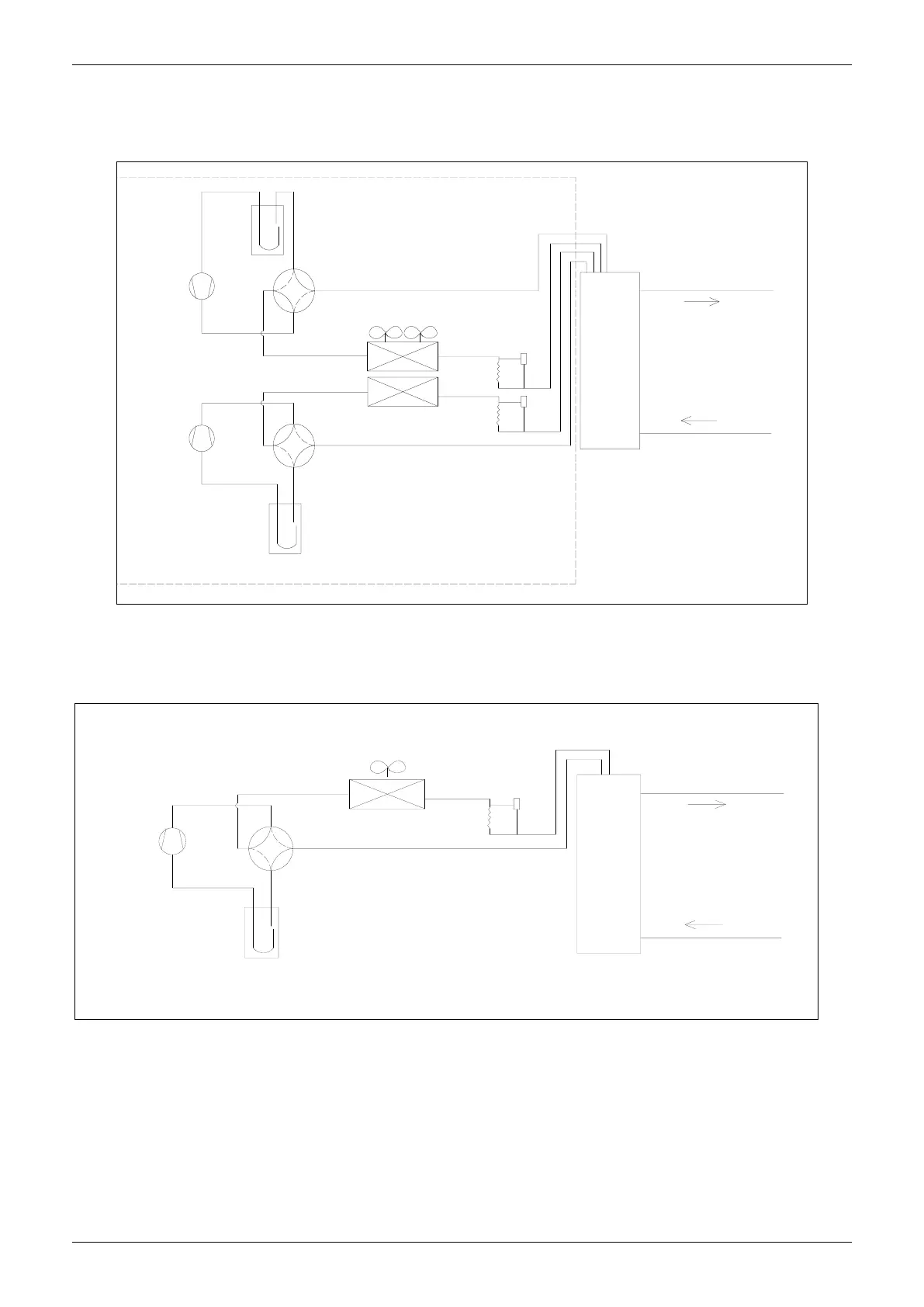

7.3 130kW module refrigeration system sketch drawing
Each module has two compressors with one unit, one shell-tube evaporator for two refrigerant systems.
Dry type evaporator
Condenser
Water flow direction
Compressor B
low pressure cylinder B
4-Way valve A
Fan A
EXV
Capillary
EXV
Capillary
Fan B
4-Way valve B
Compressor A
low pressure cylinder A
Shell and tube
heat exchanger
SP series
7.4 25/35/65kW module refrigeration system sketch drawing
Each module has one compressor with one separate unit, one refrigerant system.
Dry type evaporator
Condenser
Water flow direction
4-Way valve
Fan
EXV
Capillary
Compressor
low pressure cylinder
Plate heat exchanger
