operating weight of the unit and the weight of maintenance personnel. Refer to the operating weight
parameters in specification table.
 If the unit is located so high that it is inconvenient for maintenance personnel to conduct maintenance,
the suitable scaffold can be provided around the unit.
 The scaffold must be able to bear the weight of maintenance personnel and maintenance facilities.
 The bottom frame of the unit is not allowed to be embedded into the concrete of installation foundation.

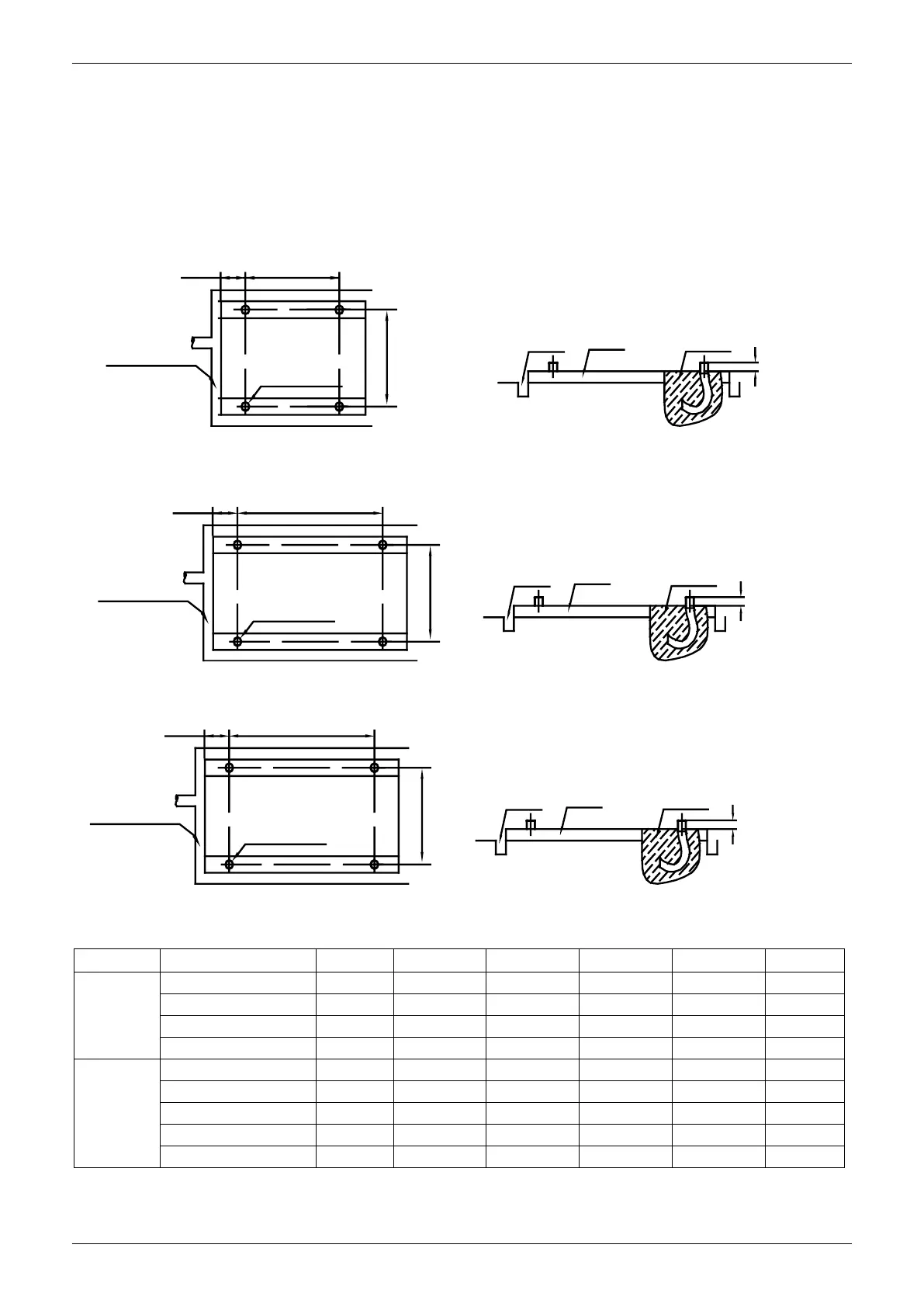

Location drawing of installation foundation of the unit (unit: mm)
25/35kW module
96
Drainage channel
Anchor bolt
788
880
80
Concrete Cement mortarDrainage channel
65/80kW module
268
Drainage channel
Anchor bolt
1460
862
80
Concrete Cement mortarDrainage channel
130kW module
370
Drainage channel
Anchor bolt
1460
1017
80
Concrete Cement mortarDrainage channel
Load distribution
Unit: kg
Series
Model
R1
R2
R3
R4
R5
R6
SS
MC-SS35/RN1L
81
81
89
89
/
/
MC-SS65/RN1L
140
130
170
150
/
/
MC-SS80/RN1L
170
210
170
160
/
/
MC-SS130/RN1L
200
320
230
370
/
/
SP
MC-SP25-RN1L
62
70
67
75
/
/
MC-SP25M-RN1L
76
82
78
87
/
/
MC-SP35-RN1L
74
78
78
84
/
/
MC-SP35M-RN1L
83
90
85
95
/
/
MC-SP65-RN1
140
160
100
120
/
/
