Midea Aqua Tempo Super Series

MCAC-ATSM-201606 Aqua Tempo Super Series air cooled scroll chiller unit (50Hz)
22

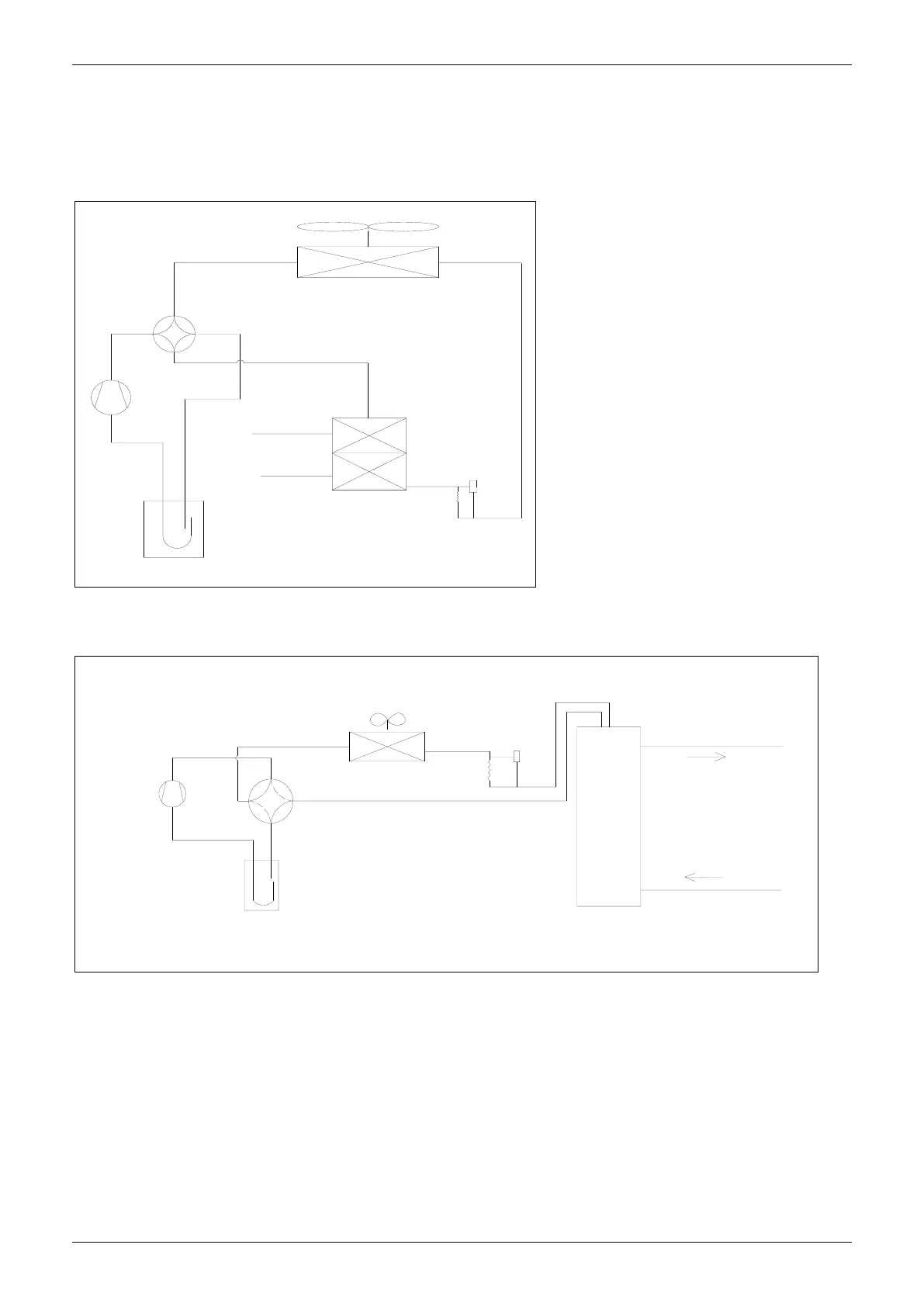

7．Refrigeration System Sketch Drawing
SS series
7.1 35kW module refrigeration system sketch drawing
Each module has one compressor with one separate unit, one refrigerant system.
Compressor
Low pressure cylinder
4-way valve
Condenser
Evaporator
(Double-pipe heat exchanger)
Fan
Water outlet
Water inlet
EXV
Capillary
7.2 65/80kW module refrigeration system sketch drawing
Each module has one compressor with one separate unit, one refrigerant system.
Dry type evaporator
Condenser
Water flow direction
4-Way valve
Fan
EXV
Capillary
Compressor
low pressure cylinder
Shell and tube
heat exchanger
